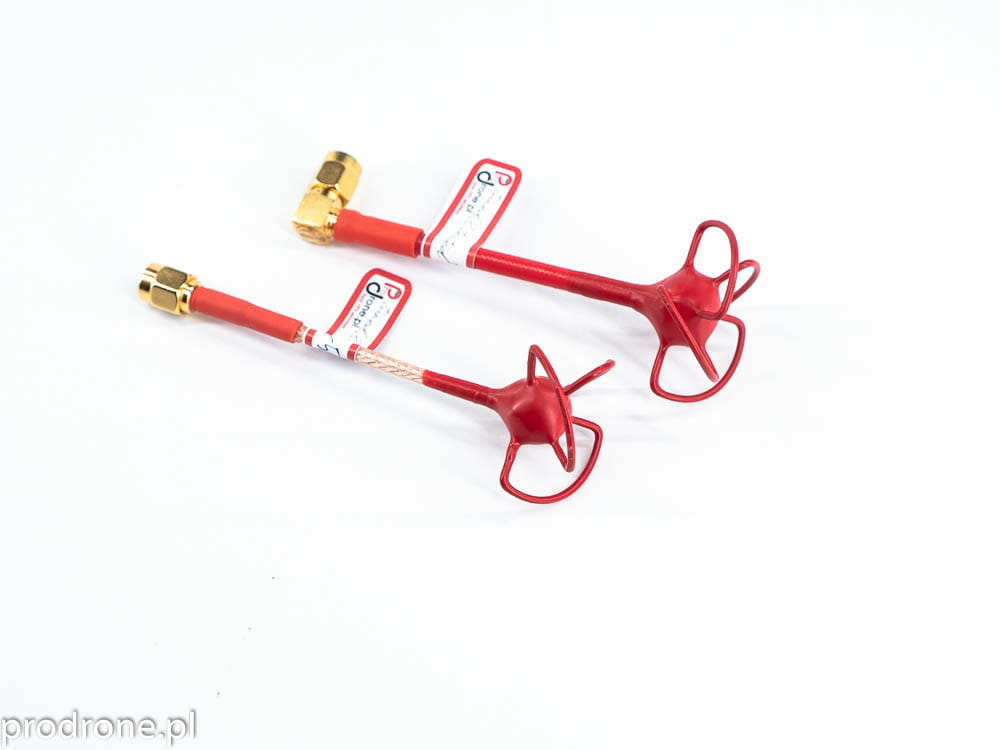

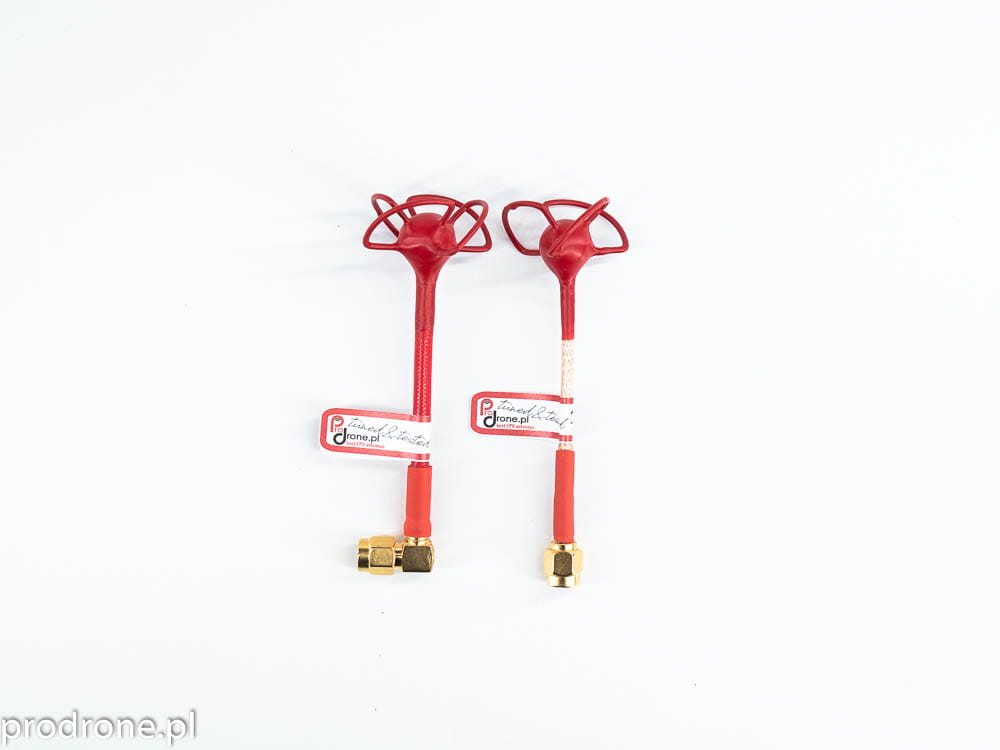

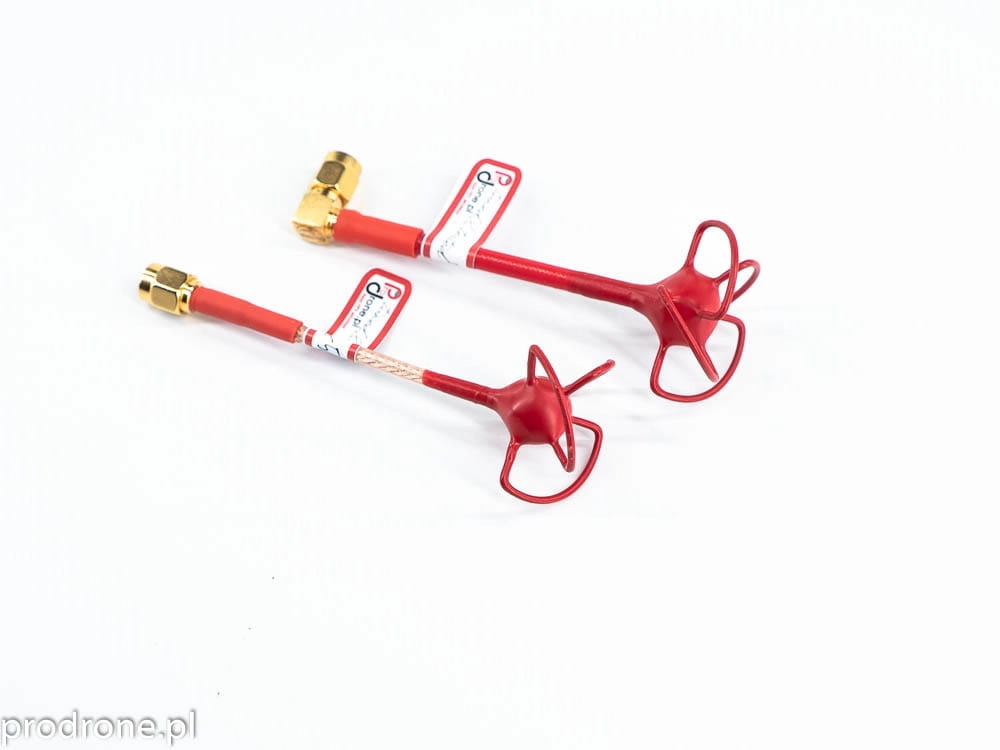

This set includes
- 3 lobe cloverleaf TX antenna with circular polarization made on RG316D cable
- 4 lobe cloverleaf RX antenna with circular polarization made on RG402 cable
This is tuned and matched set of two antennas.
Buying this set you will have guarantee that both antennas will work with best performance. They are tuned to match both antennas vswr to be lower than 1.3 on at least few channels.
Why to choose Prodrone Antennas ?
- Quality materials
- Quality soldering
- Each antenna is checked on spectrum analyser.
Why checking antenna is so important ?
Manufacturing antennas for 5.8Ghz need very tight tolerances. Even small change of dimensions, geometry (even so small ad 0.1mm) will change their characteristics (resonation point – centre frequency).
Buying our antennas you will know how use them properly – on which frequency they will have best performance.
3 lobe (and 4 lobe) cloverleaf TX antenna are using high quality RG316D and RG402 cable.
RG316D has double shielding and this only RG316 cable that is rated up to 6Ghz. Note that RG316D is not regular RG316 cable like in other antennas.
RG316D cable on TX antenna is better choice because this cable is more flexible than RG402. RG316D can be bend in any direction. It can remember position when you heat cable with hair dryer.
On RX antenna (4 lobe) is high quality RG402 cables (mainly made by Belden or Suhner).
Specification of 3 lobe (and 4 lobe) cloverleaf antenna:
- Bandwidth: 5640-5950 MHz
- Omnidirectional antenna.
- Gain: ~2 dBi
- Cable length: ~6cm
- Antenna conductor: 1mm silver covered pure copper
- vSWR: lower than 1.3
- Weight of antenna: ~6g
