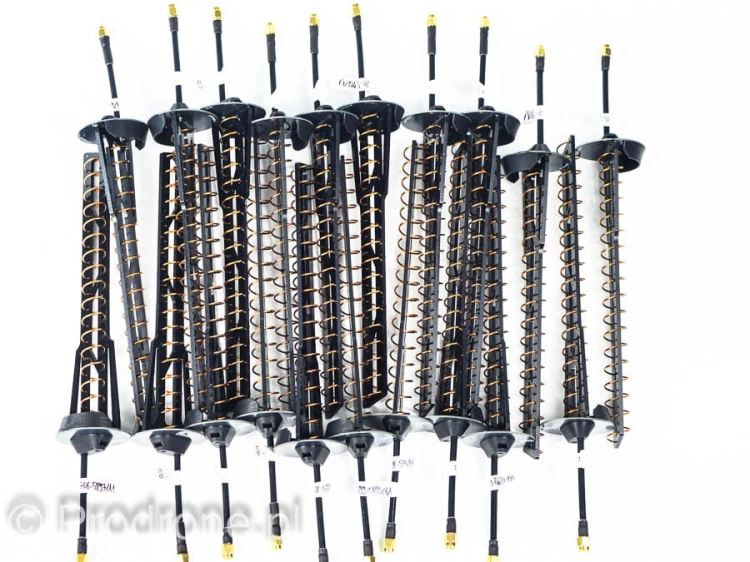

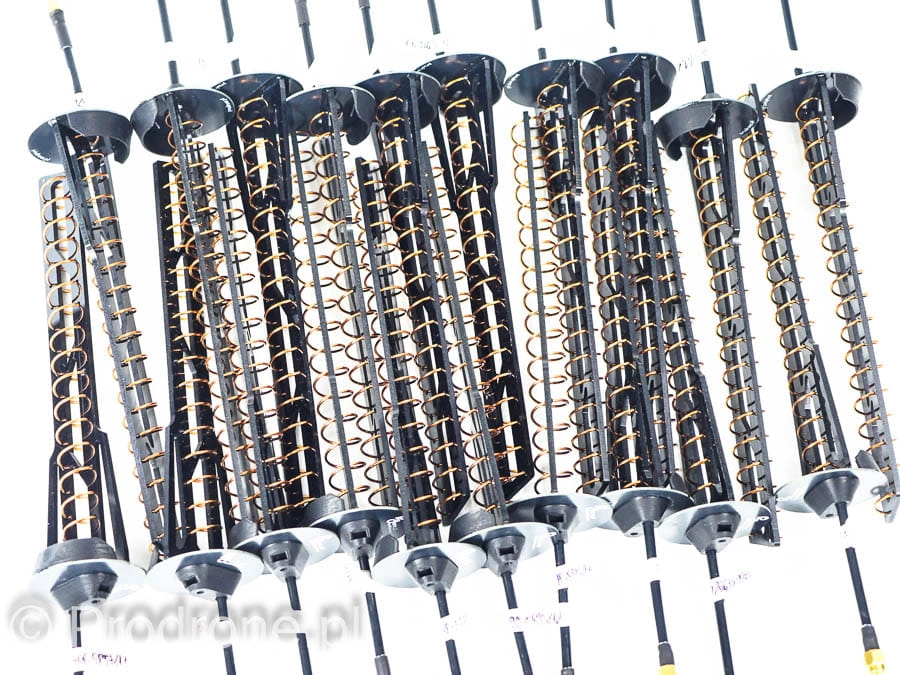

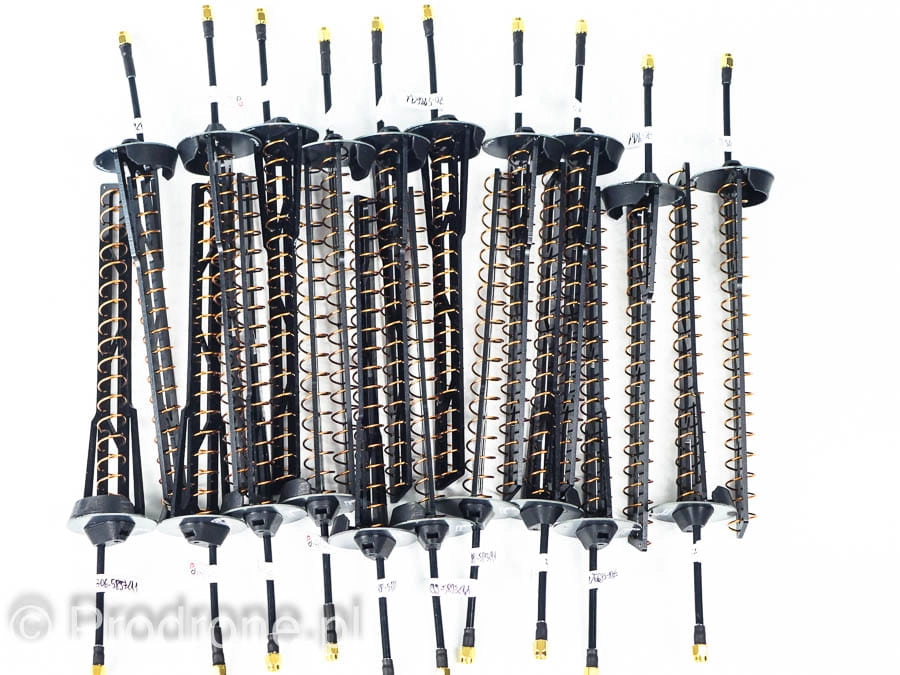

20 pcs - Penetrator v2 16dbi - helical antenna 18 turn 5.8 GHz

• Prodrone Penetrator V2 – Next-Gen Helical Antennas (20-Pack Bulk Set)

  Precision-Engineered for FPV Pilots Who Demand Range, Reliability, and Consistency

  The Penetrator V2 isn’t just an antenna—it’s a signal weapon crafted for those who push the limits of FPV. Now available in a 20-piece bulk pack designed for fleets, professional teams, and commercial-grade deployments.

  ---

  Core Technology

  • 18-turn precision helical coil for extreme long-range penetration

  • 16 dBi gain with focused 25° beamwidth (widening to ~50° at short range)

  • 5640–5945 MHz bandwidth with VSWR <1.2 across the full range

  • RHCP or LHCP polarization (select uniform configuration at checkout)

  • Near-perfect axial ratio for maximum circular polarization performance

  ---

  Why Polarization Matching Matters

  • Available in RHCP (Right-Hand) and LHCP (Left-Hand) versions

  • IMPORTANT: Your receiver and transmitter must match polarization

  • Mismatched setups result in 20–30 dB signal loss

  • RHCP and LHCP perform equally—just stay consistent

  ---

  Universal Compatibility

  Works seamlessly with all major FPV systems:

  • Digital: DJI, Walksnail, HDZero

  • Analog: Any 5.8GHz analog setup

  • No matter your tech stack—high-efficiency design guarantees performance

  ---

  Advanced Mounting Options

  • Flexible semi-rigid RG402 cable holds its shape without signal degradation

  • Additional M3 screw mount on the rear for solid installation

  • Mounts to virtually any surface (M3 screw and nut not included)

  ---

  For Perfectionists: Frequency Matching Service

  Returning customers can request tuning to match existing gear—free of charge.
  Just add a note at checkout:
  “Returning customer – tuning request” + your previous antenna’s label info

  ---

  Bulk-Specific Advantages

  • All units from the same production run, batch-tested for precision

  • Guaranteed ±0.5 dB variance for matched gain across all units

  ---





  Technical Specifications

  • Frequency Range: 5640–5945 MHz

  • Gain: 16 dBi

  • VSWR: <1.2 (typically ~1.1 across 90% of band)

  • Return Loss: -27 dB

  • Efficiency: 99.8%

  • Polarization: RHCP or LHCP (choose during order)

  • Max Power Handling: 50W

  • Conductor: 1.2 mm pure enameled copper

  • Turns: 18

  • Reflector Diameter: 45 mm

  • Cable: ~6 cm RG402 semi-rigid coax

  • Connector Options: SMA or RP-SMA

  • Weight: ~36 g per unit

  ---

  Included in the Bulk Pack

  • 20x Prodrone Penetrator V2 Helical Antennas

  • Consolidated safe packaging (no retail boxes)

  ---

  Proven in the Field

  • Trusted by hundreds of professional pilots

  • Field-tested in demanding conditions

  • Consistently rated a top-tier high-gain antenna in real-world scenarios





Advanced Mounting Options
An additional screw mounting point is available on the back of the antenna.
Compatible with various surfaces.
Requires an M3 screw and M3 nut (not included).
