Pro 2.4 Dipole antenna
product unavailable
add to wish list
2.84615
Description

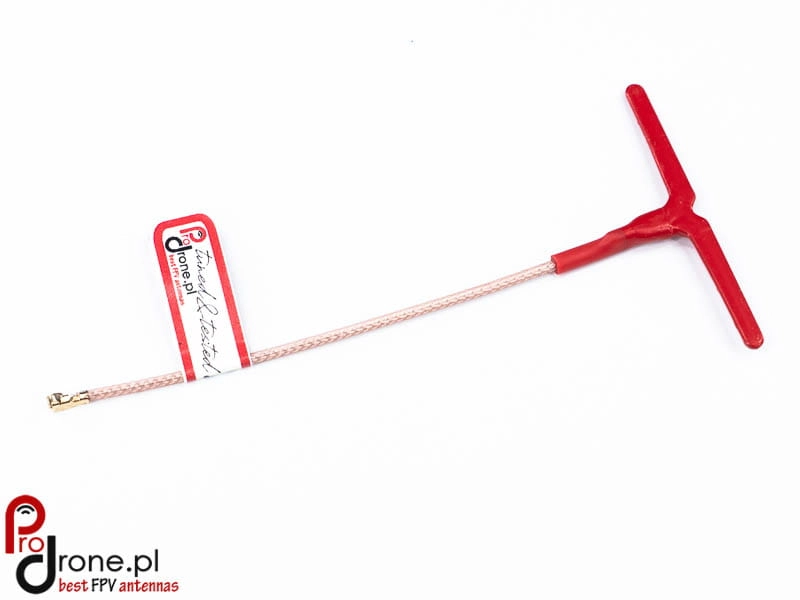

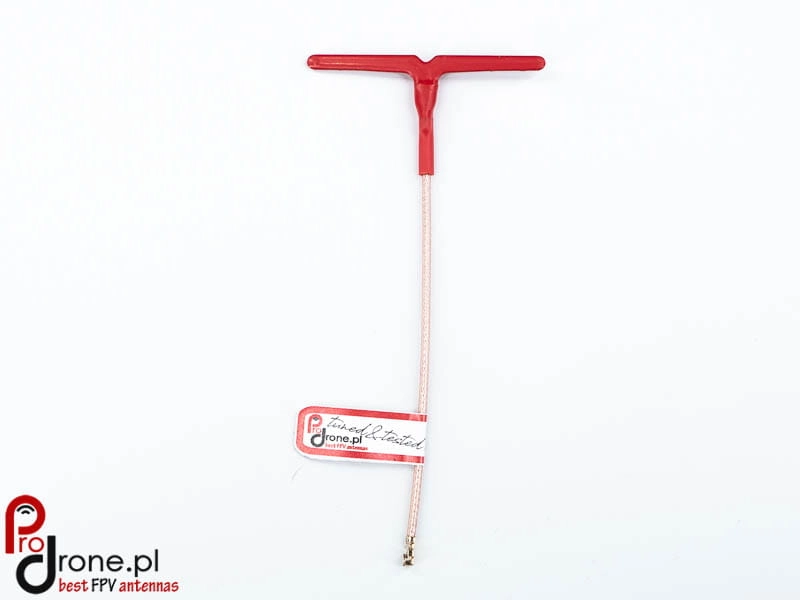

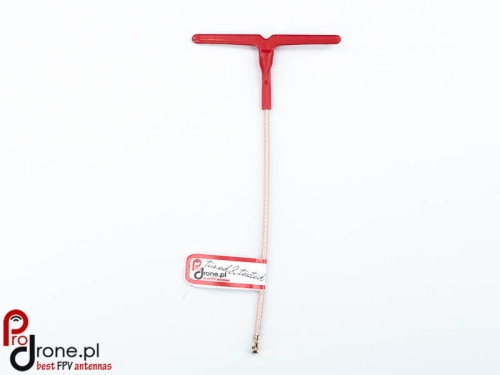

Prodrone dipole.
This is great upgrade of factory antenna in receiver. It will fit to all receivers equipped with u.fl connector. Gain of this antenna is about 2.2dbi
It's great upgrade to OEM receiver antenna because Prodrone dipole is tuned and matched with Moxon. They are tuned for 2.4Ghz that is used in RC applications.
Most of oem RX antennas has poor vswr and almost everyone is not tuned.
This antenna can be used with any system that works on 2.4gHz band - frsky, TBS, Radiomaster, iflight, wifi routers, expresslrs, betafpv, Orqa etc. and have connector or can be modded to use external antenna.
Specification of Prodrone Tuned dipole antenna
- Bandwidth: 2380-2480 MHz
- Gain: 2,2 dBi
- Cable length: ~10cm
- vSWR: lower than 1.3
- Connector: u.fl
- Weight of antenna: ~2g
Yordan Staykov
Great antenna and an excellent service. They even sent me a gift! I am extremely satisfied!
Pavel Tarnopolski
Great antennas, amazingly tuned!
Anirudh Ubgade
A much better made alternative to the stock happymodel antenna. Am using this on their ExpressLRS rx and it works great.
Przemysław Ciemniewski
Great antenna for ExpressLRS, I`m using it with the new Radiomaster RP3 diversity receiver. After 10km no rxlost!
Laurynas Agejevas
Flying in a park ELRS power never went above 10mw with >90LQ on 500Hz, highly recommend the antennas.
Joshua Goldberg
Use these on my entire fleet. Dependable and durable.
