Pro Mox_R v2 868Mhz / 915MHz 5.5dbi

Stronger - better...

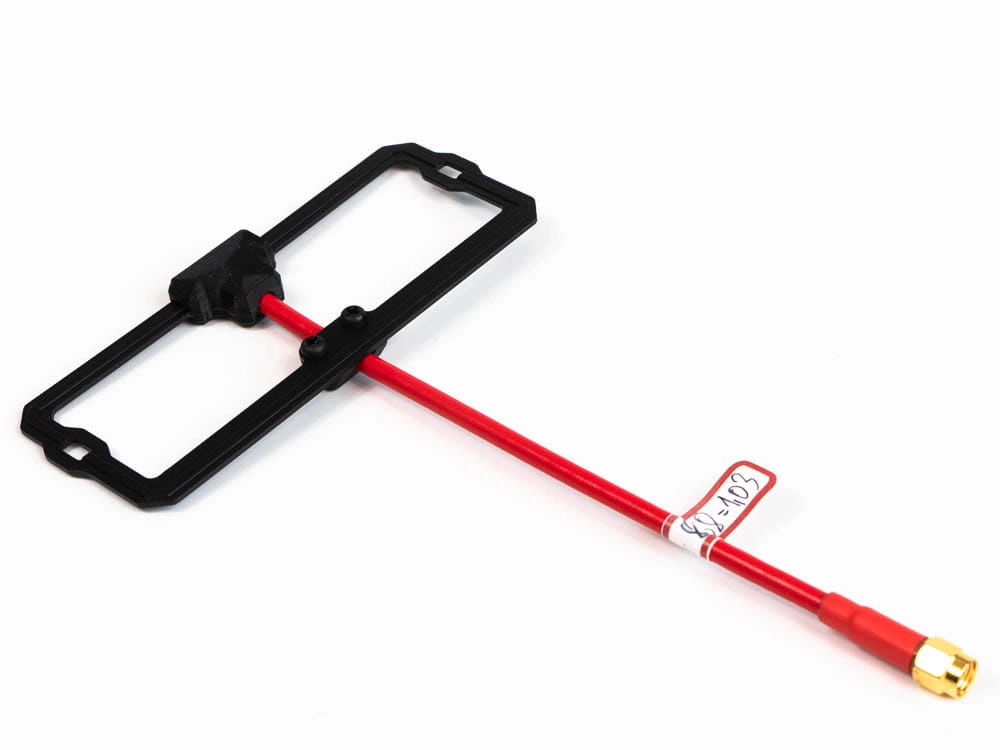

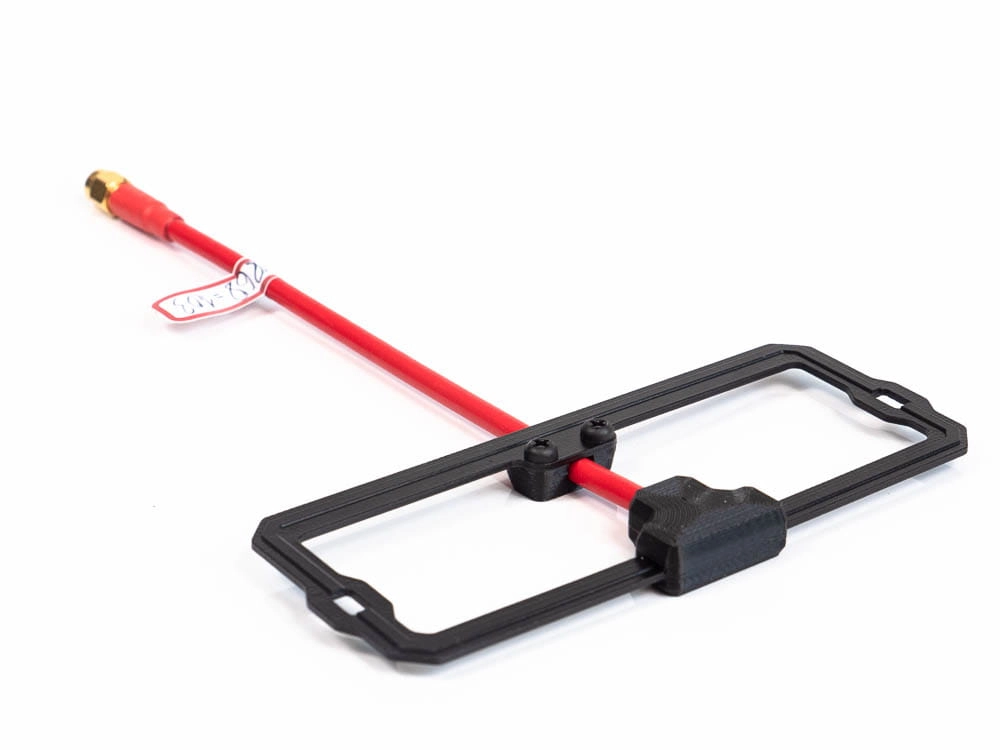

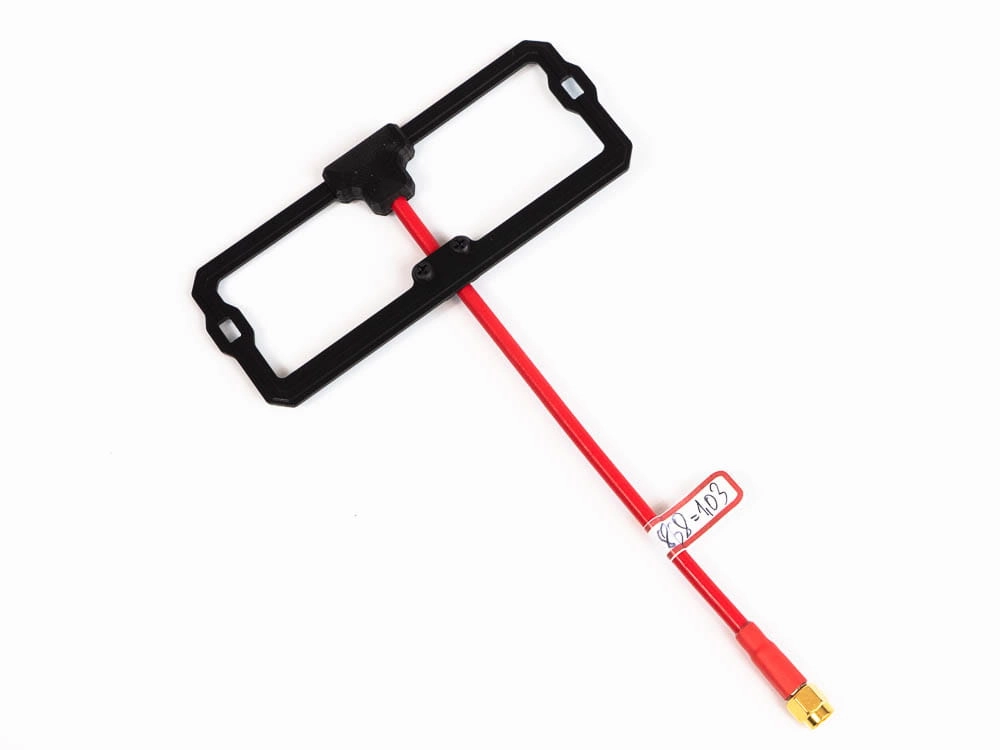

his is the improved version of the Mox_R antenna, now called the MOX_Rv2. It has a more durable design than its predecessor, which had a printed frame, and offers better parameters. The gain of MOX_Rv2 is about 5.5dBi, and it is available for frequencies 868, 900, or 915 MHz, which are commonly used by Crossfire, FRSKY, ExpressLRS, LORA, and LoraWAN transmitters.

The MOX_Rv2 is a two-element parasitic array antenna, which can be visualized as a 2-element yagi with the element tips bent towards one another. It is a great upgrade to typical rubberduckies equipped with transmitters, as it can extend the range significantly compared to standard antennas. The Moxon antenna has high gain, very good characteristics, and is "almost" omnidirectional, with a null only on the back of the antenna.

The MOX_Rv2 offers three advantages: it is small in physical size, making it an excellent field antenna, has an outstanding front-to-back ratio of about 30dB, and is a 50ohm antenna, generating a near-perfect 1:1 SWR without requiring any additional matching devices. Additionally, the Moxon antenna is quite broadbanded, allowing for effective full-band coverage, and has an extremely wide beamwidth when used vertically, over 250 degrees.

The MOX_Rv2 is a very durable and high-quality antenna, and each antenna is tuned for the desired frequency before being shipped. It is compatible with any system that works on the 868, 900, or 915 MHz bands, such as FrSky, TBS, Radiomaster, iFlight, LoraWAN routers, ExpressLRS, Betafpv, Orqa, etc. and can be used with a connector or modded to use an external antenna. The specification of the Prodrone MOX-Rv2 antenna includes a bandwidth of 868, 900, or 915MHz (frequency is selectable), a beamwidth of over 250 degrees, a gain of 5.5 dBi, an antenna length (from end to end, with cable) of ~18cm(±3cm), and a vSWR lower than 1.2.

 Moxon antenna offers three  advantages:

1. Small in physical size - which makes an excellent field antenna.
2. Outstanding front to back ratio. The Moxon's front-to-back ratio models is about 30dB
3. The Moxon is a 50ohm antenna, generating a near perfect 1:1swr without requiring any additional matching devices. It is also quite broadbanded allowing for effective full band coverage.
4. Extremly wide beamwidth when used verticaly - over 250 degrees
5. our MOX_Rv2 is very durable antenna


We always tune each antenna for desired frequency.
So if you will place order for 868MHZ then you will get antenna specially tuned for that frequency.

Specification of Prodrone MOX-Rv2 antenna

• Bandwidth: 868, 900, 915MHz (frequency is chooseable)
• Beam width: over 250 degrees
• Gain: 5,5 dBi
• Antenna length (from end to end, with cable): ~18cm(+-3cm)
• vSWR: lower than 1.2
• Maximum power input: 50W
• Weight of antenna: ~22g

This antenna can be used with any system that works on 868,900,915Mhz  band - frsky, TBS, Radiomaster, iflight, wifi routers, expresslrs, betafpv, Orqa etc. and have connector or can be modded to use external antenna.

Kolor elementów drukowanych może zostać zmieniony bez wcześniejszego powiadomienia. Zmiana koloru tych elementów nie wpływa na charakterystykę anteny.
Przed montażem anteny proszę przeczytać:
