ProFlex Vee 868Mhz / 900MHz / 915MHz U.FL TBS Crossfire antenna

Availability: on sale
Dispatched within: 4 working days
Price: 19,00 zł 19.00
quantity szt.
You gain 1 points [?]
add to wish list
* - Field mandatory
Rating: 0
Product code: 101_69_20180525082056

Description

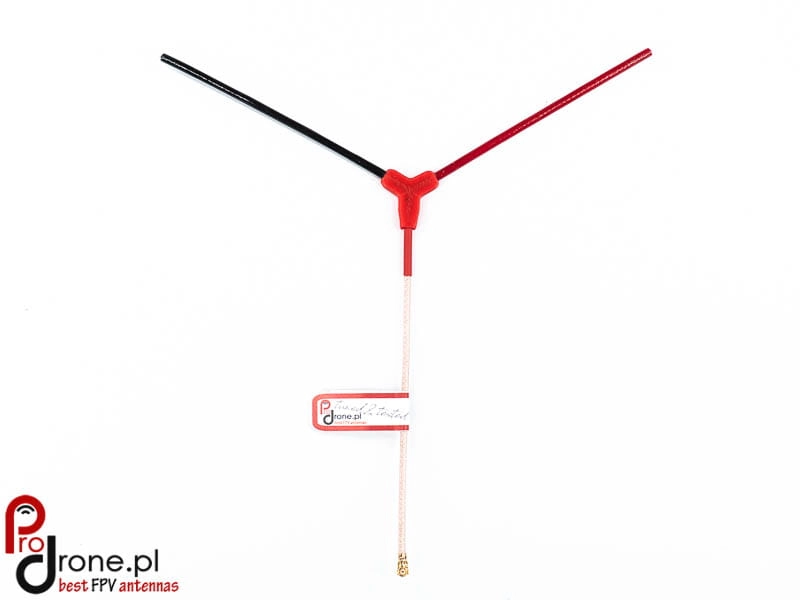

ProFlex - high quality Vee antenna. This antenna was designed to get very good performance and most important thing - durability.

This is general purpose antenna specially developed for TBS Crossfire Micro Receivers. ProFlex Vee has U.FL (IPX IPEX) connector and quality RG178 cable.

Antenna is also dedicated for Frsky R9 Slim / R9 Slim.


It has very good radiation pattern. This is good choice for FPV long range (freestyle) pilots.

Weight of antenna is only 2.8g.

Each antenna is individually tuned (return loss and impedance). After tuning and measurement we attach small tag with basic information about antenna.

Feed and ground elements are flexible. They can be bend and after that they will come back to previous position.





Our antennas are hand assembled. Due our design you will get quality product, with great performance.

Specification of ProFlex Vee antenna:

Frequency: 868,900,915MHz (please choose tuned frequency)
Omnidirectional antenna: yes
Gain: 2,2 dBi
Cable length: ~5cm
vSWR: lower than 1.3
Maximum power input: 50W
Connector: u.fl
Weight of antenna: ~2.8g

Product reviews (1)

16 July 2018

I use this antenna for the r9 slim. Very good quality and price.
