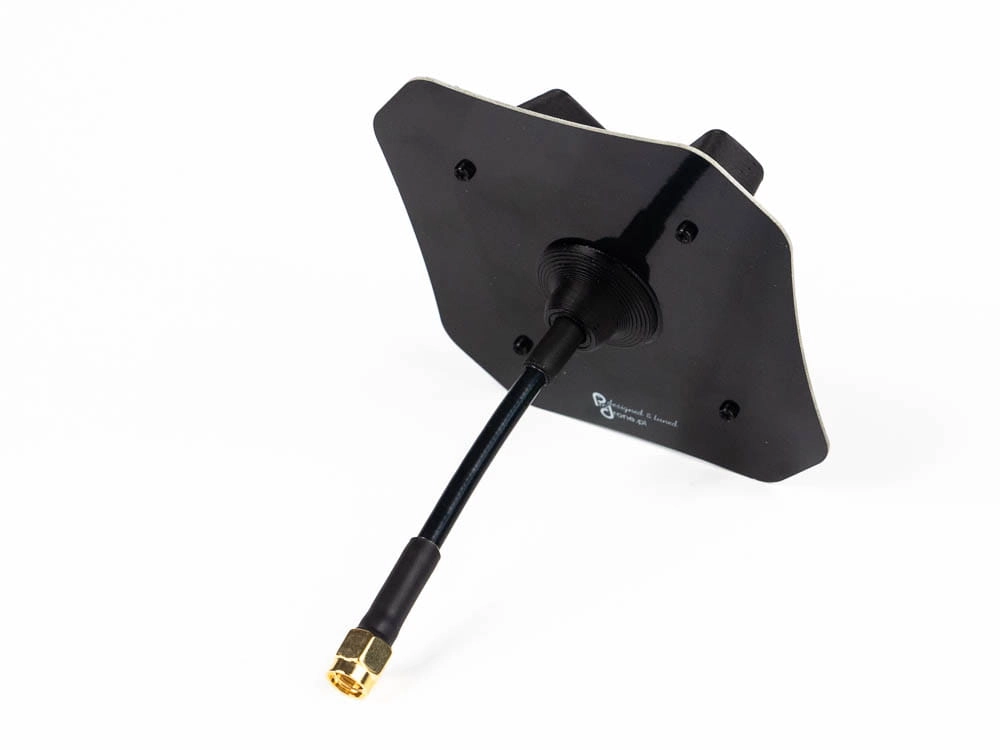

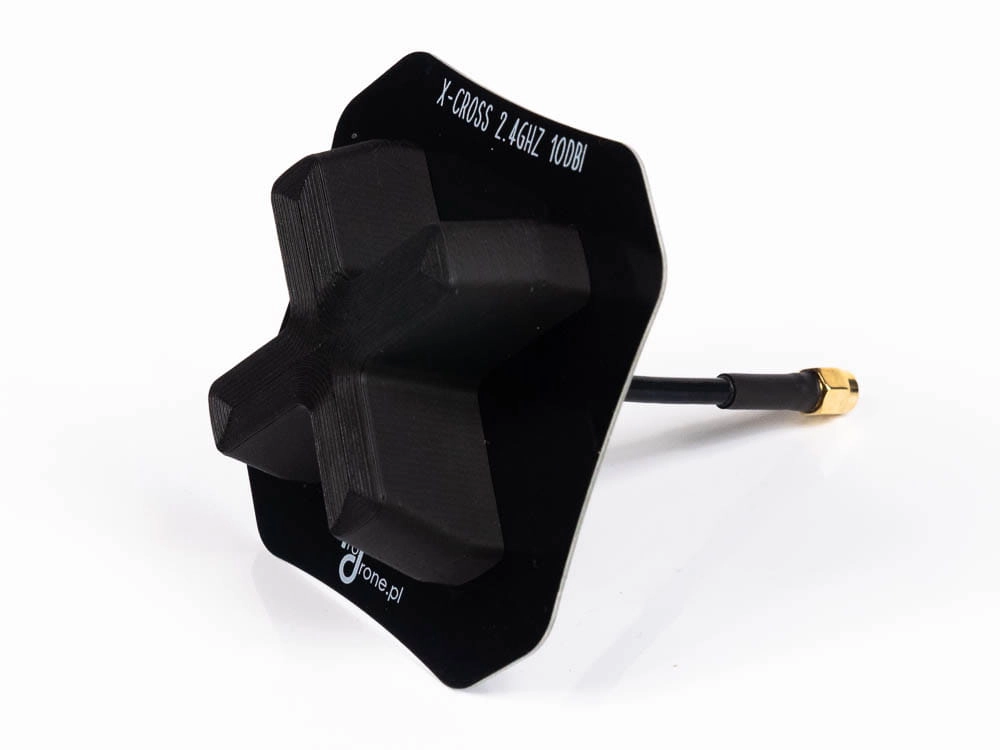

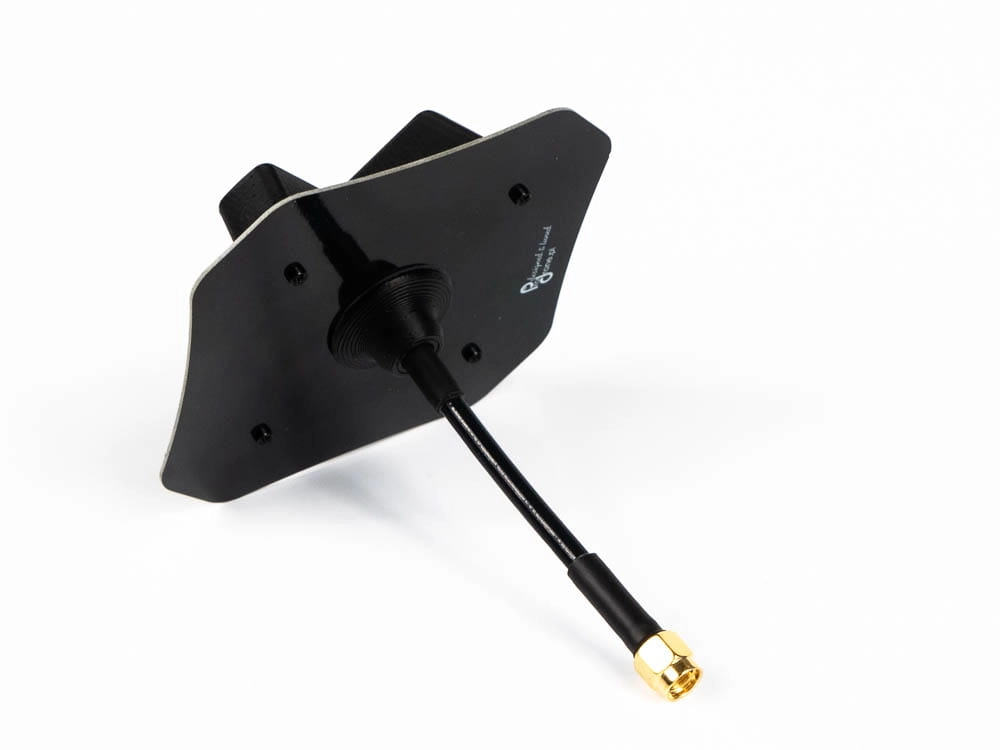

Xtreem Cross-air 2.4GHz V2 10dbi antenna
Description
We improoved our Xtreeme Cross-air 2.4ghz and now it's v2.
Reflector now is manufactured in PCB factory. We aslo improoved by a little bit it's performance by slight redesign of it's active element.
Now it looks better and performes better. Great antenna for long range FPV flying.
Some of our customers use them also for WIFI transision for long ranges.
This is directional antenna with 10dbi gain.
Wide coverage (beamwidth) which is up to 120 degrees and high axial ratio make our Xtreem Cross-air perfect for proximity flying. You will still get signal behind bushes and trees.
Our antenna is equipped with high quality Semi-rigid cable. With that cable you can point antenna in almost any direction and antenna will stay at that position.
Specyfication of Xtreem Cross-air 2.4Ghz:
Band: 2.4Ghz (2380-2510Mhz)
Polarization: Circular
Antenna type: Directional
VSWR: <1.2
Gain: 10dbi
Beam width:70 degrees (up to 120 degrees at shorter ranges)
Polarization: RHCP
Connector type: SMA or RP-SMA
Cable length: ~40mm
