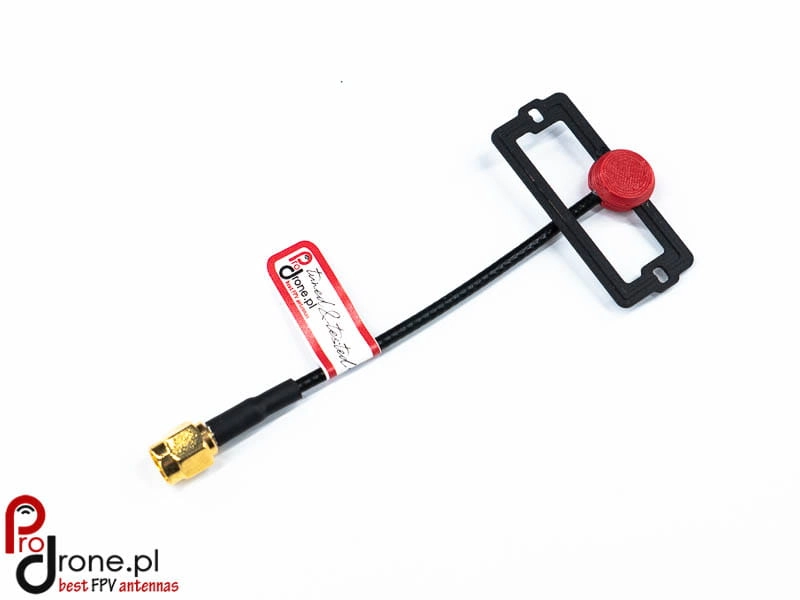

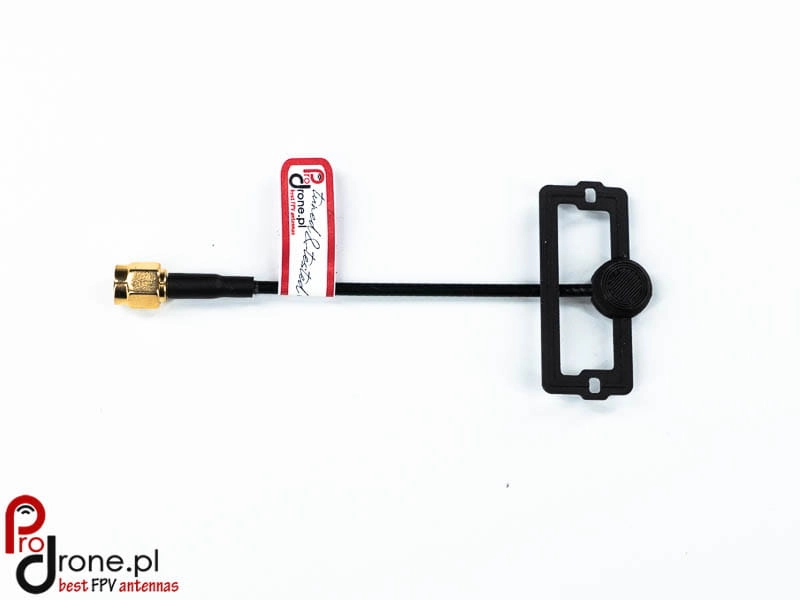

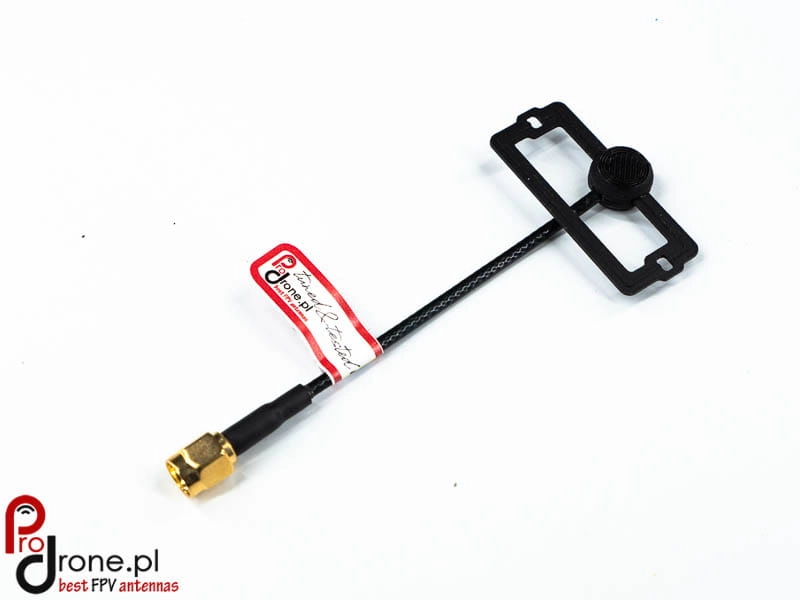

Pro Moxon 2.4Ghz 5.5dbi RP-SMA

Gain of Moxon antenna  is about 5.5dBi and this is real gain. This antenna is tuned for frequencies 2400-2450Mhz which are used in RC transmitters.
Moxon can be visualized as a 2-element yagi with the element tips bent towards one another.

This is great upgrade to typical rubberduckies equipped with transmitters. Range extension is over 70% !

Moxon antenna has high gain, has very good characteristics and is "almost" omnidirectional. It has null only on back of antenna.

The Moxon antenna offers three  advantages over a typical two element Yagi:

1. Small in physical size - which makes an excellent field antenna.
2. Outstanding front to back ratio. The Moxon's front-to-back ratio models is about 30dB.
3. The Moxon is a 50ohm antenna, generating a near perfect 1:1 swr without requiring any additional matching devices. It is also quite broadbanded allowing for effective full band coverage.

Specification of Prodrone Moxon antenna

• Bandwidth: 2400-2480 MHz
• Beam width: over 180 degrees
• Gain: 5,5 dBi
• Cable length: ~7cm
• Antenna conductor: 1mm silver covered pure copper
• vSWR: lower than 1.3
• Maximum power input: 50W
• Connector: SMA or RP-SMA
• Weight of antenna: ~6g
