10 pcs - Penetrator v2 16dbi - helical antenna 18 turn 5.8 GHz

Go to Product feedback
with VAT without VAT
Price 1 420,00 zł

Shipping costs are not included in the price.

Price in other stores: 299,00 zł

Select product variant

Individual variants may differ in price

Select RHCP LHCP
Select SMA straight RP-SMA straight SMA angle (+100,00 zł) RP-SMA angle (+100,00 zł)
szt.
Availability:
on sale
Shipping time: 7 working days

Product code: 666_20250124163930

Item description

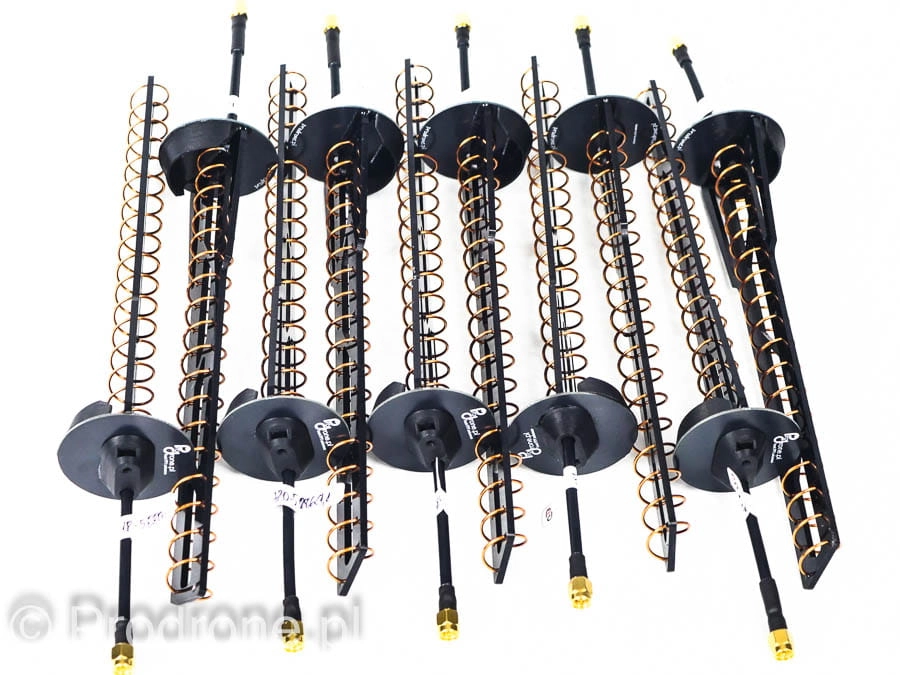

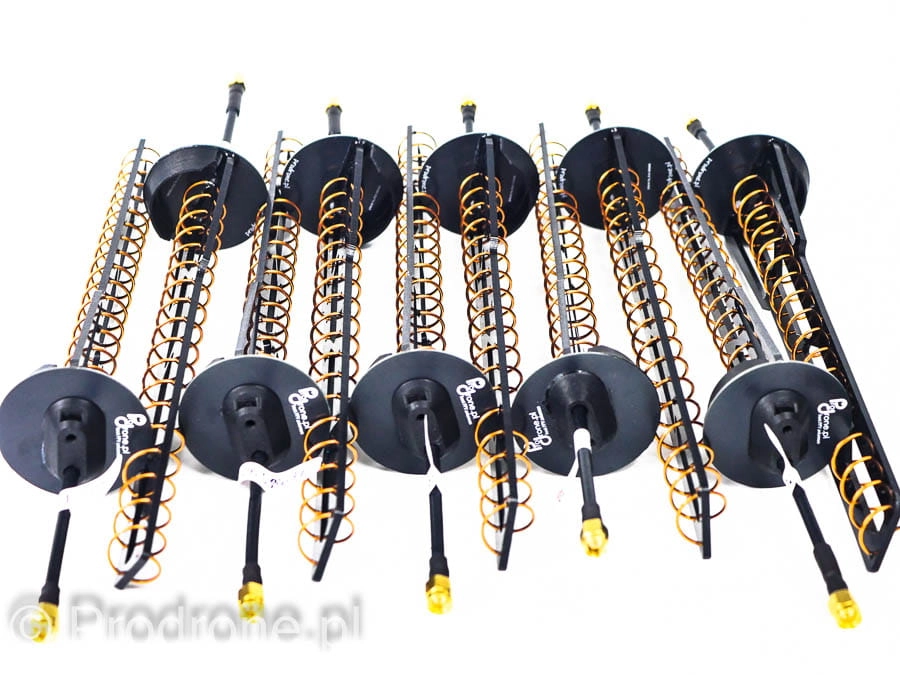

10-PIECE BUNDLE - Prodrone Penetrator V2 Helical Antennas

Team Up with Unmatched Signal Performance

For FPV squads and commercial operators needing reliable spares or multi-drone setups, this 10-pack of Penetrator V2 antennas delivers consistent high-gain performance across your entire fleet.

Why Bulk Buy?
✔ Cost-effective – Save per unit compared to single purchases
✔ Polarization-matched set – Choose all RHCP or all LHCP for uniform performance
✔ Backup-ready – Never ground your operations due to antenna damage

Bundle-Exclusive Perks:

  • Priority support for bulk tuning requests

  • Tested batch consistency (all antennas from same production run)

Prodrone Penetrator V2 – The Next-Gen Helical Antenna

For FPV pilots who demand reliability and range, we’re introducing an upgraded version of our best-selling antenna. The Penetrator V2 isn’t just an improvement—it’s a whole new level of signal precision.

Why Circular Polarization Matters

  • Available in RHCP (right-hand) and LHCP (left-hand)

  • CRUCIAL: Your transmitter and receiver must match polarization!

  • Mismatched polarization can cause 20-30 dB signal loss

  • RHCP and LHCP perform identically—just stay consistent

Universal Compatibility

Works flawlessly with:

  • All digital FPV systems (DJI, Walksnail, HDZero)

  • Analog setups

  • Doesn’t matter what tech you use—quality engineering speaks for itself

Specs That Speak for Themselves

  • Gain: 16 dBi

  • 18-turn precision coil for maximum signal penetration

  • Beamwidth: 25° (peak gain), widening to 50° at closer range

  • Frequency range: 5640-5945 MHz (VSWR <1.2)

  • Key measurements:

    • Return loss: -27 dB

    • Efficiency: 99.8%

    • Bandwidth: 100-130 MHz (VSWR <1.1)

Flexible Mounting Options

  • Semi-rigid RG402 cable from trusted suppliers

  • Bend and position without signal loss

  • Additional M3 screw mount on the back

For Perfectionists: Tuning Service

Returning customers get free frequency matching for existing gear. Just add a note to your order:
"Returning customer – tuning request" + your current antenna’s label details.

Note: Custom frequency tuning is a paid service—contact us before ordering.

Proven Performance

  • Hundreds sold to professional pilots

  • Field-tested in extreme conditions

  • Consistently rated as a top-tier high-gain antenna

The Physics Behind It: Why Matching Matters

In 5.8 GHz systems, mismatched antennas cause:

  1. Power loss – Signal reflects back instead of reaching the receiver

  2. Overheating – Reflected energy can damage your transmitter

  3. Unpredictable performance – Random signal drops and interference

The Penetrator V2 eliminates these issues thanks to:

  • Ultra-low VSWR (<1.2) across the entire band

  • Near-perfect axial ratio (close to 0 dB)

  • Precision tuning for real-world conditions



Technical Specifications:
Here are the specs for each Prodrone Penetrator V2 18T helical antenna in this bundle:

  • Bandwidth: 5640-5945 MHz

  • Beam width: 25° (max gain), 50° (close range)

  • Gain: 16 dBi

  • Reflector diameter: 45mm

  • Cable length: ~6cm

  • Conductor: 1.2mm enameled pure copper wire

  • Turns: 18

  • Polarization: RHCP or LHCP (select during checkout)

  • VSWR: <1.2

  • Max power: 50W

  • Connector: SMA or RP-SMA (specify preference)

  • Weight: 36g

  • Quantity in this bundle: 10 pieces



At almost whole band (5650-5930) antenna archeeve VSWR below 1.3.
V2 goes below WSVR 1.1 (Return loss - 27db, effiecency - 99.8% )  at 150Mhz bandwith.


Penetrator has outstanding gain which is 16dBi and most important thing this is real gain.
This antenna will give you very long range and signal penetration. This is helical antenna with 18 turns.

We suggest using this antenna on antena tracker.

Great antenna for extreme long range flights.

Prodrone PRO 18 Turn Helical has beam about 25 degrees.

At shorter range beam width will be wider.

All our Helical antenna series have a semi-rigid cable. We are using high quality RG402 cables (mainly made by Belden or Suhner). We are not using cheap Chinese cables.

Semi-Rigid cable means that you can bend it and it will stay in that position. You can use this antennas on goggles.

This means that antenna can be pointed in any direction and there is no need for using any adapters.

Cables that we are using have very low attenuation, so you'll be able to fly even further.
