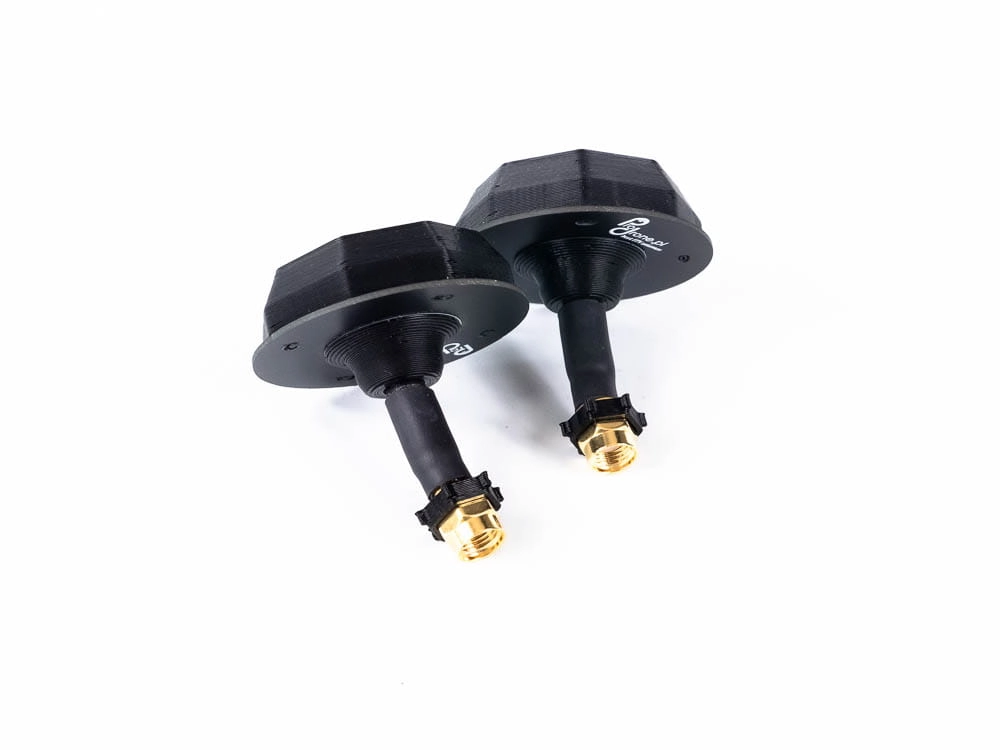

  • Micross_digi 2 pcs set

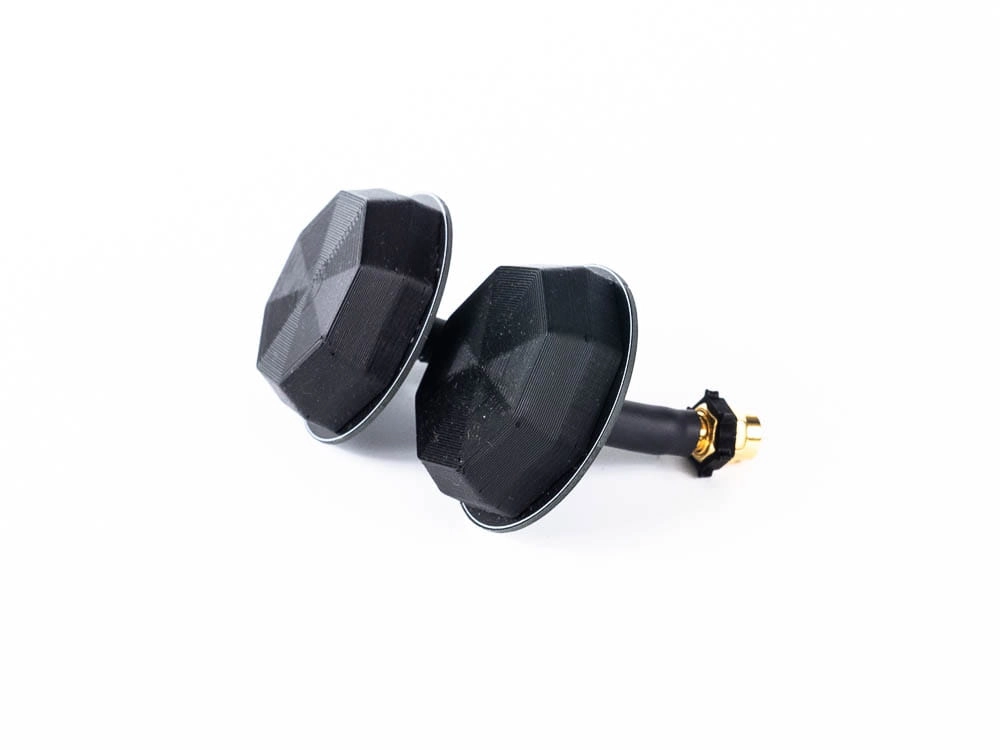

  • Micross_digi 2 pcs set – side view with the connectors

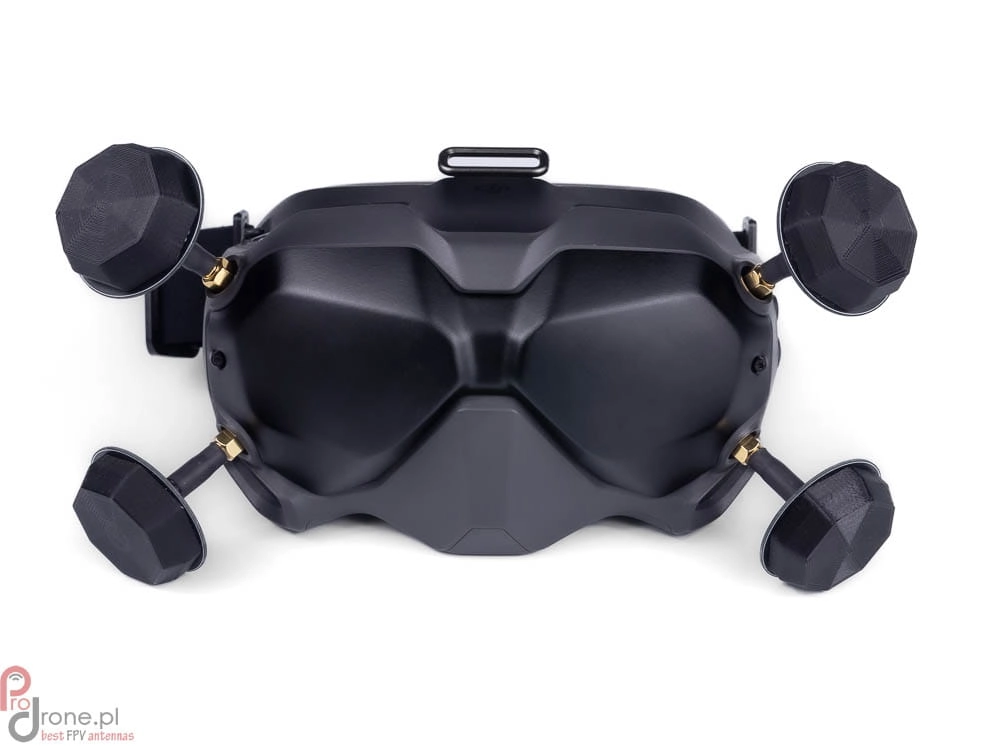

  • Micross_digi 2 pcs set – mounted on the goggles, front view

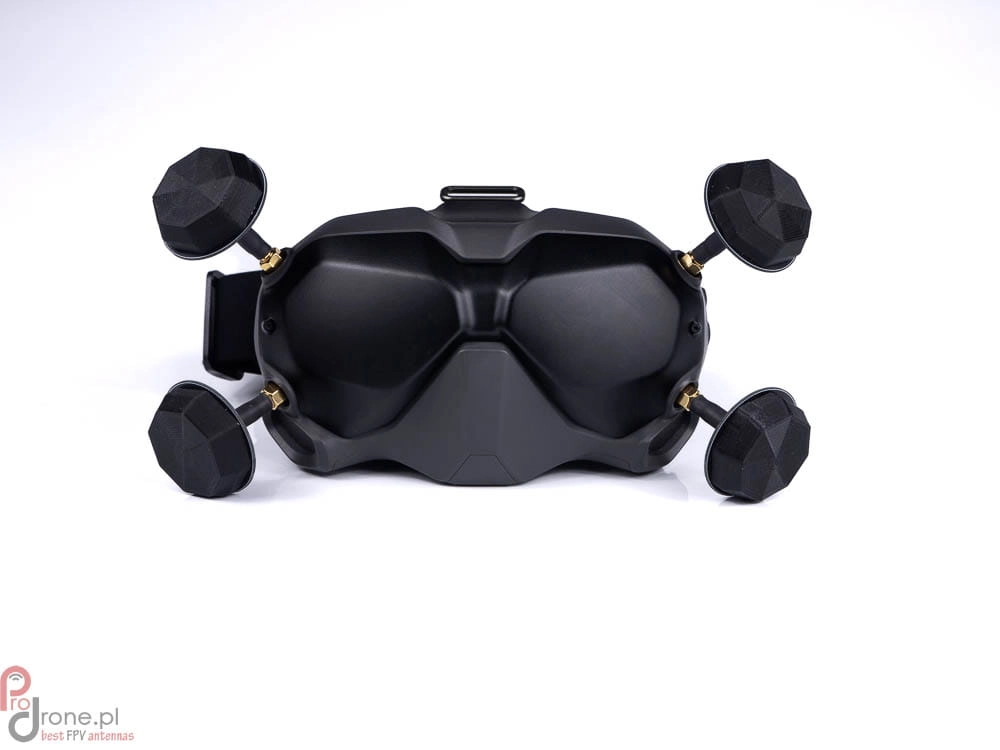

  • Micross_digi 2 pcs set – mounted on the goggles, different antenna position

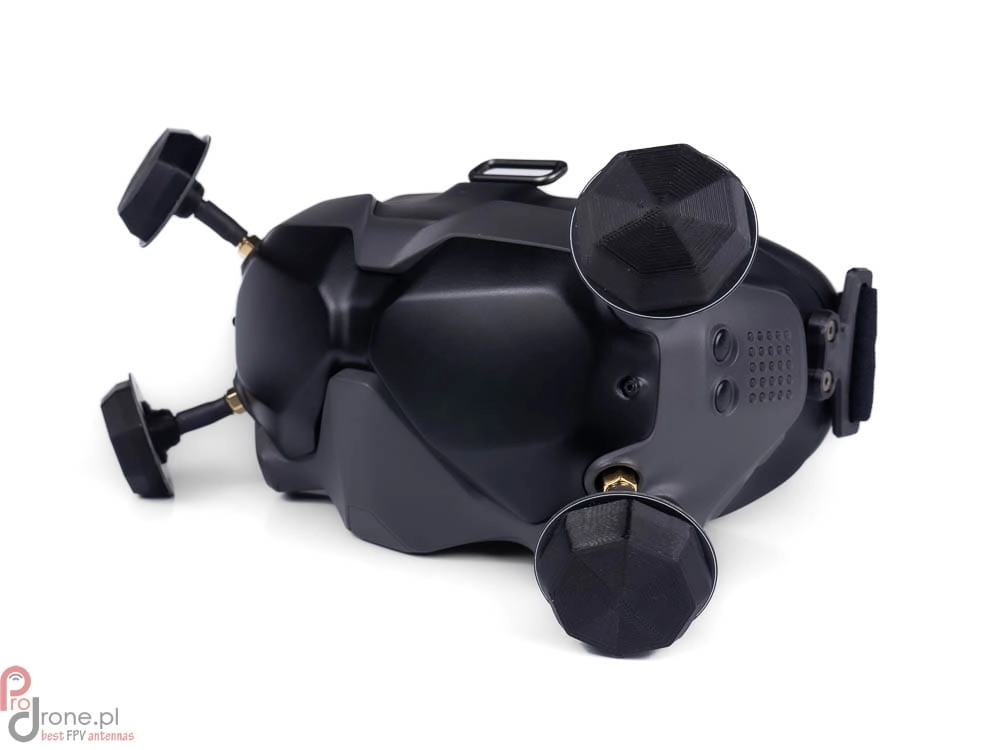

  • Micross_digi 2 pcs set – mounted on the goggles, side view
Prodrone.pl

Micross_digi 2 pcs set

  • Two directional 5.8 GHz Mi-Cross antennas for digital FPV, a matched set
  • 9 dBi gain, wide beam up to 130°
  • VSWR below 1.2 across almost the whole Raceband
  • RHCP or LHCP, SMA or RP-SMA connector
  • ~4 cm long, 3 cm semi-rigid cable, for Walksnail Avatar goggles

Go to full description
with VAT without VAT
Price €36.40
incl. 23% VAT

Shipping costs are not included in the price.

Select product variant

Individual variants may differ in price

Select RHCP LHCP
Select SMA straight RP-SMA straight SMA angled (+€2.73) RP-SMA angled (+€2.73)
pcs
Availability:
Available, tuned before shipping
Shipping time: 4 working days

Item description

Tis is set of two Micross_digi antennas. The MiCross_digi set is a perfect solution for drone pilots who use digital video transmission systems for long-range flying without significant bitrate loss. This set contain four perfectly matched antennas that have been specially designed for FPV drone racing. They are smaller versions of our popular Xtreeme Cross-air V3 antennas, with shortened cables for improved portability.

Each antenna is individually tuned to ensure optimal performance, and the total length is approximately 4cm, with a 3cm cable length from the back of the reflector. The Mi-Cross antennas are an ideal choice for long-range flying with Walksnail Avatar goggles, providing a better FPV video experience.

The VSWR of these antennas is almost below 1:1.2 in the whole Raceband range, making them perfect for mid to long-range flying. The semi-rigid cable allows you to position the antennas as per your needs, and they will stay in place during flights. With a wide coverage (beamwidth) of up to 130 degrees and low axial ratio, our Xtreem Cross-air antennas are perfect for proximity flying, and you will still get a signal behind bushes and trees.

The Mi-Cross antenna set offers several benefits, such as a small form factor, easy and fast assembly and disassembly with nuts that make tightening easier included, lightweight at only 12 g, and extremely wide beam. These antennas are also compatible with all receivers, including Rapidfire, True-D, True-D X, Pro58, RX5808, and DJI friendly.

Specifications of Mi-Cross include a band of 5.8GHz, circular polarization, directional antenna type, VSWR of <1.2, gain of 9dbi, beam width of 80 degrees (up to 140 degrees at shorter ranges), polarization of RHCP or LHCP, connector type of SMA or RP-SMA, cable length of 3cm, and overall antenna length of approximately 40mm.

In summary, the Mi-Cross antenna set is an excellent option for drone pilots who want to improve their long-range flying experience without compromising the bitrate of their video transmission. These antennas are a great upgrade for digital FPV systems.Specifications of MiCross: Band: 5.8Ghz Polarization: Circular Antenna type: Directional VSWR: <1.2 Gain: 9dbi Beam width: 80 degrees (up to 140 degrees at shorter ranges) Polarization: RHCP or LHCP Connector type: SMA or RP-SMA Cable length: 3cm Overall antenna length: ~40mm
