Mox_R RS UHF 435Mhz 5.5dbi

Availability: on sale
Dispatched within: 10 working days
Price: 69,00 zł 69.00
Net price: 56,10 zł
quantity szt.
You gain 6 points [?]

product unavailable

add to wish list
* - Field mandatory
Rating: 0
Vendor: -
Product code: 109_20230206103516

Description

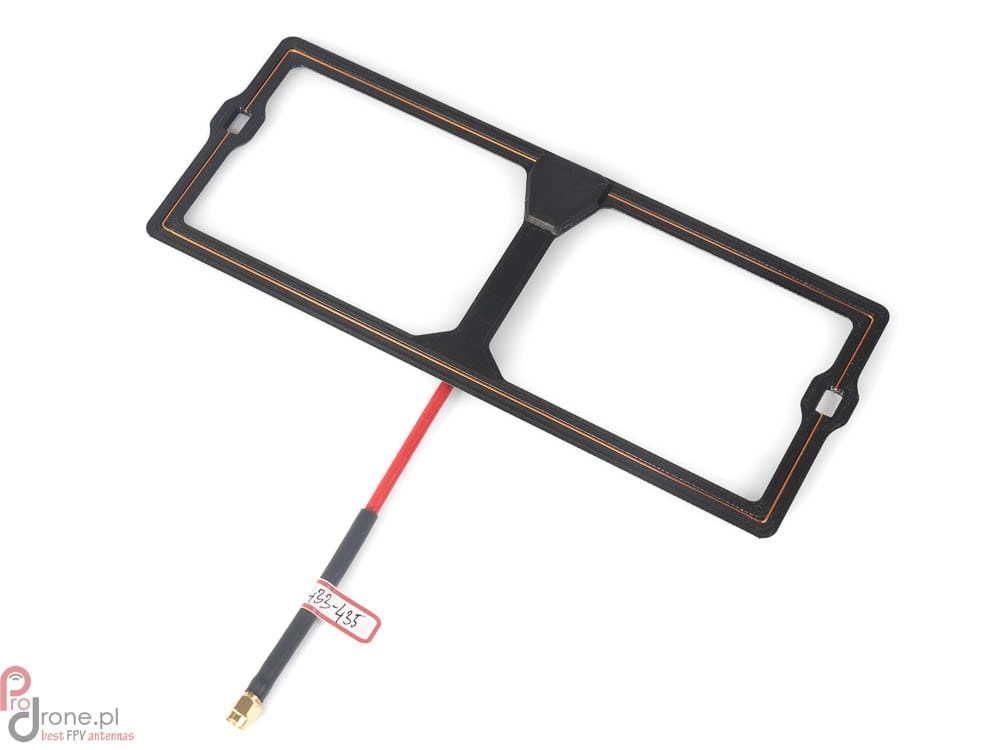

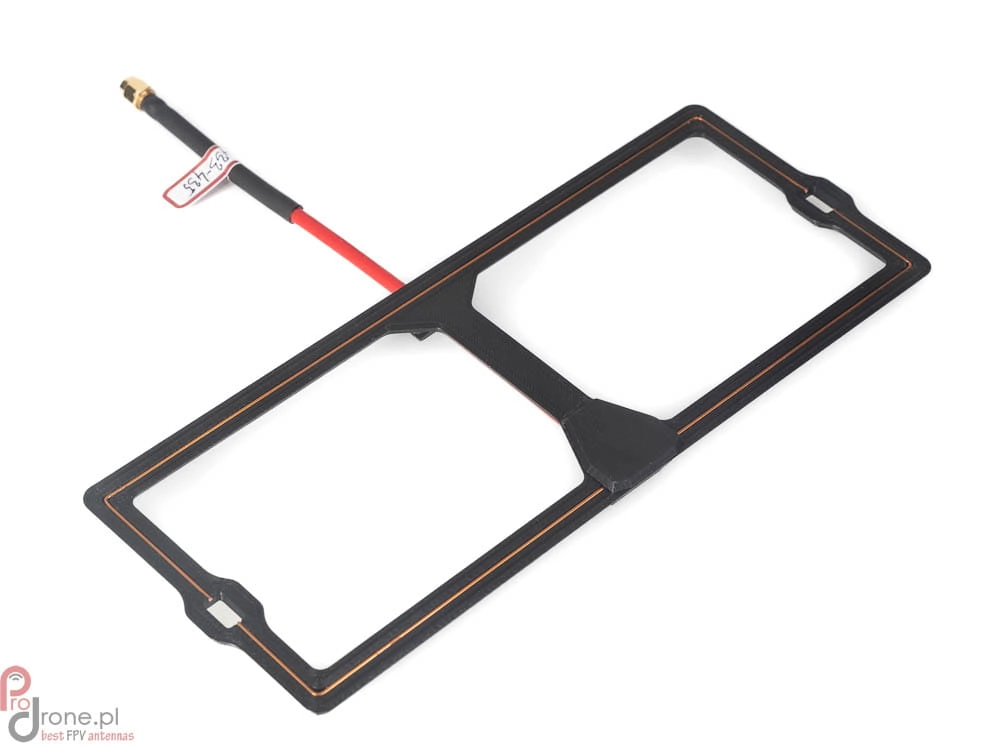

Looking to upgrade your drone's long-range telemetry system? The Prodrone Moxon antenna is a durable and efficient antenna with a real gain of 5.5dBi. It's specifically designed for use in LRS/UHF FPV systems that operate within the 430-440Mhz range and offers a VSWR of less than 1.3 within that range. This small-sized antenna has an outstanding front-to-back ratio of about 30dB and generates a near-perfect 1:1 VSWR without any additional matching devices. With a maximum power input of 50W, it's an excellent choice for anyone looking for full-band coverage. Upgrade your drone's telemetry system today with the Prodrone Moxon antenna.


The Moxon antenna is a highly efficient two-element parasitic array antenna that has a real gain of approximately 5.5dBi. It is specifically designed and tuned for frequencies in the 430-440Mhz range, which are commonly used in LRS/UHF FPV systems, and offers a VSWR of less than 1.3 within that range. The antenna comes complete with a rigid cable and can be mounted directly to your TX.

The Moxon antenna can be thought of as a 2-element yagi with the tips of the elements bent towards one another. It is a significant upgrade over typical rubberduckies that are commonly equipped with transmitters. The Moxon antenna has high gain, excellent characteristics, and is "almost" omnidirectional. It only has a null on the back of the antenna.

The Moxon antenna provides three advantages over a typical two-element Yagi. First, it is small in physical size, which makes it an excellent field antenna. Second, it has an outstanding front-to-back ratio, with a model ratio of about 30dB. Third, the Moxon is a 50ohm antenna that generates a near-perfect 1:1 VSWR without requiring any additional matching devices. It is also quite broadbanded, allowing for effective full-band coverage.

Here are the specifications for the Prodrone Moxon antenna:

  • Bandwidth: 430-440 MHz
  • Beam width: over 180 degrees
  • Gain: 5.5 dBi
  • Cable length: approximately 13cm
  • Antenna conductor: 1.2mm pure copper (enameled)
  • VSWR: less than 1.3 (tuned to 430-440Mhz)
  • Maximum power input: 50W
  • Weight of antenna: approximately 44g

    The Prodrone Mox_R RS UHF antenna is a top-quality and sturdy antenna that offers excellent efficiency for LRS/UHF FPV systems operating in the 430-440Mhz range. It's an ideal option for those who want to upgrade their current transmitter antenna due to its small size, outstanding front-to-back ratio, and near-perfect VSWR.
