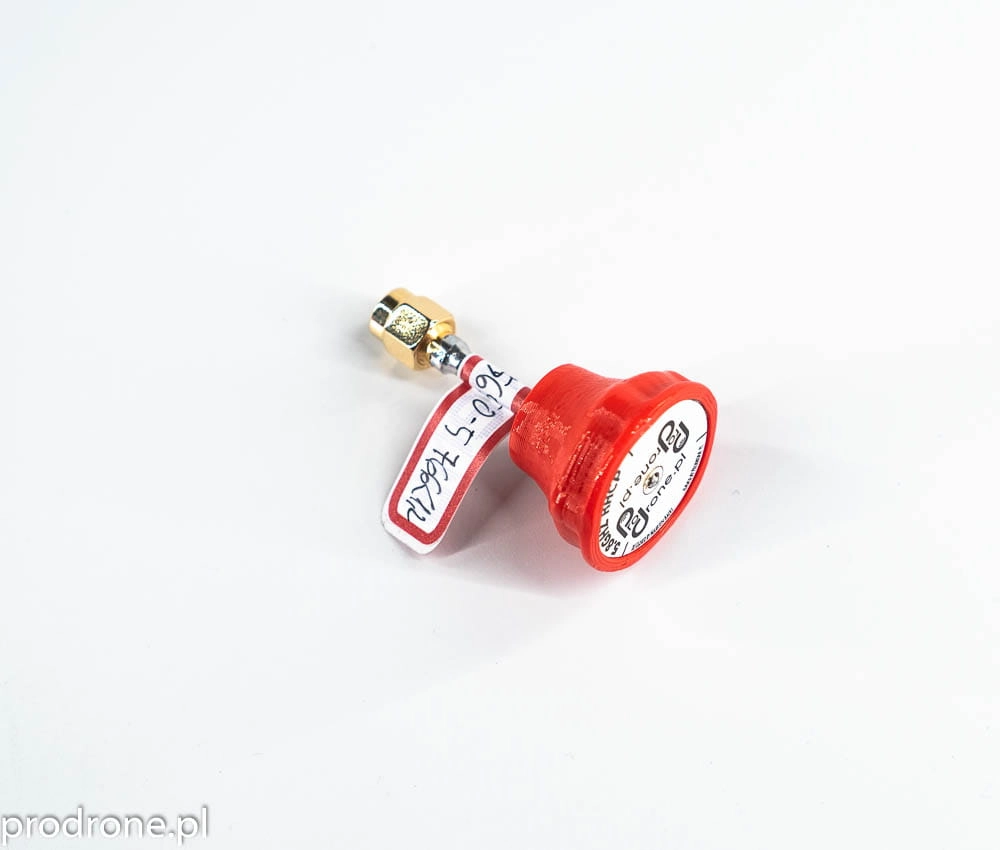

Antena PRO Pagoda - Stub 3dbi

Availability: on sale

Dispatched within: 7 working days

Gross price: 32,00 zł

excl. shipping costs

Regular price:

32.00

The lowest price during 30 days prior to the reduction:

Net price: 32,00 zł

excl. shipping costs

Regular price:

The lowest price during 30 days prior to the reduction:

* Polarization:

* Connector:

quantity szt.

You gain 2 points []

product unavailable

add to wish list

* - Field mandatory

Rating:

3.81964

Vendor: Prodrone.pl

Product code: 80_20170512193458

ask about product
recommend to a friend
add your review

Description

This is short version of Pagoda antenna.

The Pagoda antenna is an omnidirectional circularly polarized antenna . This antenna was originally designed by Maarten Baert.

We done small modification to design - So we called it PRO Pagoda.

This is next generation circularly polarized antennas with great axial ratio (1.3), high efficiency which is 95%

Main advantages of Pagoda antenna:
- Good omnidirectional radiation pattern.
- Good axial ratio.
- Reasonably small.
- Durable
- Light weight
- Can be used as TX and RX antenna

Radiation pattern of Pagoda antenna

Why choose Prodrone Pro Pagoda ?
1. Quality soldering
2. Each antenna is checked on spectrum analyser.

Why checking antenna is so important ?
Manufacturing antennas for 5.8Ghz need very tight tolerances. Even small change of dimensions, geometry (even so small ad 0.1mm) will change their characteristics (resonation point - centre frequency).
Below is example. Antennas assembled in our assembly jig, which is more precise than original one designed by Maarten. You see how they differs their characteristics.
Buying our antennas you will know how use them properly - on which frequency they will have best performance.

Specification of Prodrone Pagoda antenna

Working Frequency: 5.8GHz
Omni directional antenna
Gain: 3 dBi
Cable length: ~2,7cm
Antenna length (form end to end) ~4.7cm
vSWR: lower than 1.2
Maximum power input: 50W
Connector: SMA or RP-SMA
Polarization: RHCP (LHCP will be in black)
