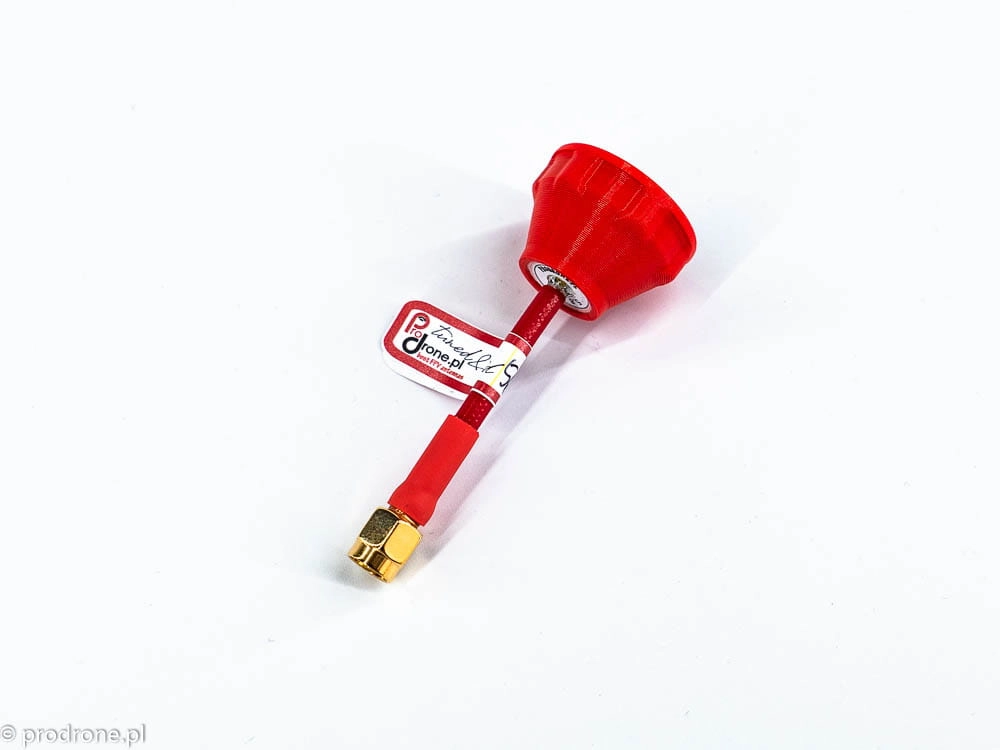

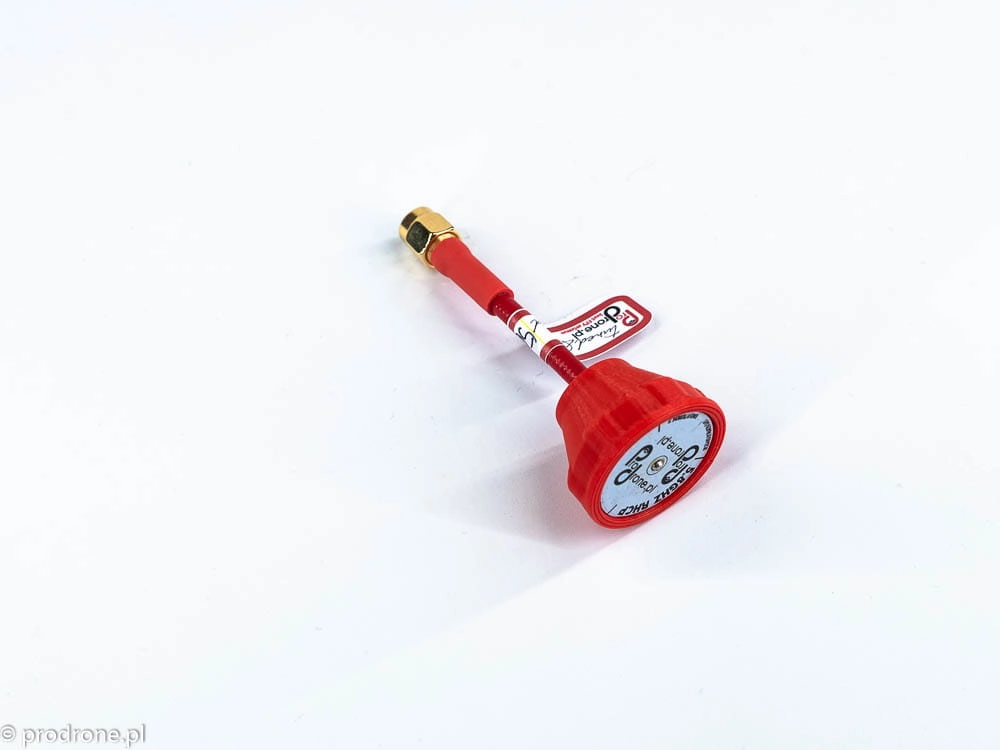

Antenna PRO Pagoda 3dbi

Availability: on sale

Dispatched within: 5 working days

Gross price: 32,00 zł

excl. shipping costs

Regular price:

32.00

The lowest price during 30 days prior to the reduction:

Net price: 32,00 zł

excl. shipping costs

Regular price:

The lowest price during 30 days prior to the reduction:

* Polarization:

* Connector:

quantity szt.

You gain 2 points []

product unavailable

add to wish list

* - Field mandatory

Rating:

3.63

Vendor: Prodrone.pl

Product code: 81_20170514072355

ask about product
recommend to a friend
add your review

Description

The Pagoda antenna is an omnidirectional circularly polarized antenna . This antenna was originally designed by Maarten Baert.

We done small modification of holes, to fit it better to RG402 cable and make solder points stronger.

This is next generation circularly polarized antennas with great axial ratio (1.3), high efficiency which is 95%

Main advantages of Pagoda antenna:
- Good omnidirectional radiation pattern.
- Good axial ratio.
- Reasonably small.
- Durable
- Light weight
- Can be used as TX and RX antenna

Radiation pattern of Pagoda antenna

Why choose Prodrone Pro Pagoda ?
1. Quality soldering
2. Each antenna is checked on spectrum analyser.

Why checking antenna is so important ?
Manufacturing antennas for 5.8Ghz need very tight tolerances. Even small change of dimensions, geometry (even so small ad 0.1mm) will change their characteristics (resonation point - centre frequency).
Below is example. Antennas assembled in our assembly jig, which is more precise than original one designed by Maarten. You see how they differs their characteristics.
Buying our antennas you will know how use them properly - on which frequency they will have best performance.

Specification of Prodrone Pagoda antenna

Working Frequency: 5.8GHz
Omni directional antenna
Gain: 3 dBi
Cable length: ~6cm
Overall antenna length (from end to end) ~8cm
vSWR: lower than 1.2
Maximum power input: 50W
Connector: SMA or RP-SMA
Polarization: RHCP or LHCP (LHCP will be in black)
