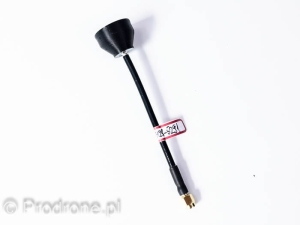

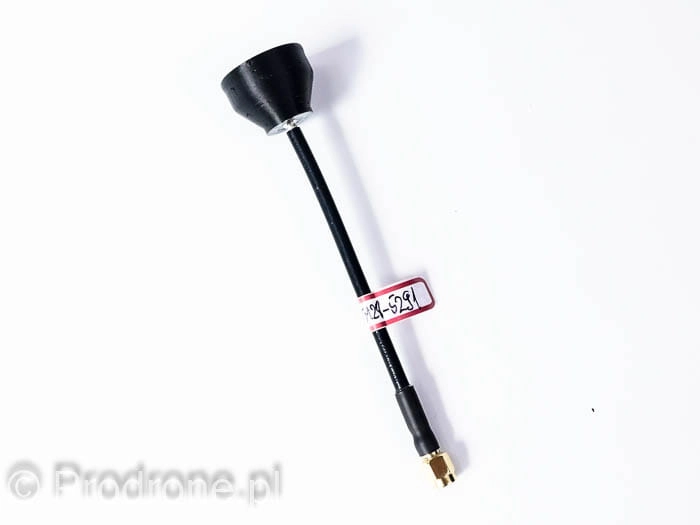

Antenna Pro Pagoda Long (160 mm) 3dbi

Availability: on sale

Dispatched within: 12 working days

Gross price: 40,00 zł

incl. 23.00% TAX, excl. shipping costs

Regular price:

40.00

The lowest price during 30 days prior to the reduction:

Net price: 32,52 zł

excl. 23.00% TAX, excl. shipping costs

Regular price:

The lowest price during 30 days prior to the reduction:

* Polarization:

* Connector:

quantity szt.

You gain 2 points []

product unavailable

add to wish list

* - Field mandatory

Rating:

4.33333

Vendor: Prodrone.pl

Product code: 81_20240910141937

ask about product
recommend to a friend
add your review

Description

Enjoy a more comfortable and versatile FPV experience with our Pagoda PRO antenna featuring a longer cable (whole antenna length from end to end 160mm). Say goodbye to video dropouts caused by your head blocking the signal from the transmitter and fly freely behind you.

This next-generation antenna boasts an impressive axial ratio of 1.3 and a high efficiency of 95%, making it a top-performing circularly polarized antenna.

The Pagoda antenna offers several benefits, including a good omnidirectional radiation pattern, a good axial ratio, and its reasonably small and durable design. It's also lightweight and can be used as both a transmitting and receiving antenna.

You can trust the quality of our antennas because each one undergoes multiple tests and checks on a spectrum analyzer during production. Additionally, all antennas in your order are carefully tuned to work together within the same frequency range.

Why choose Prodrone Pro Pagoda ?

Quality soldering
Each antenna is checked on a spectrum analyzer.
Antenna tuned for 5.8ghz

Checking the antenna's characteristics is crucial because manufacturing antennas for 5.8GHz requires tight tolerances. Even a tiny change in dimensions or geometry (as small as 0.1mm) can affect the antenna's resonance point, or center frequency. In the chart below, you can see how different antennas assembled in our precision assembly jig (more precise than the original one designed by Maarten) can exhibit different characteristics.

With a working frequency of 5.8GHz, a gain of 3dBi, and a vSWR lower than 1.2, our Pagoda PRO antenna is an excellent choice for an omnidirectional antenna. It has a maximum power input of 50W and is available with either an SMA or RP-SMA connector. Plus, you can choose between right-hand circular polarization (RHCP) or left-hand circular polarization (LHCP) to suit your needs.

Radiation pattern of Pagoda PRO antenna

Specification of Prodrone Pagoda antenna

Working Frequency: 5.8GHz
Omni directional antenna
Match: return loss (S11) <-20 dB, standing wave ratio (VSWR) <1.15 (center frequency)
Bandwidth range: 500MHz (5.5 - 6.0 GHz)f
Gain: 3 dBi
Antenna length: 16cm
vSWR: lower than 1.2
Maximum power input: 50W
Connector: SMA or RP-SMA
Polarization: RHCP or LHCP
