Cloverleaf TX antenna PRO_CLOV 2.4Ghz
Leave feedback on the product
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Select product variant
Individual variants may differ in price
Product code: 106_20190214141847
Item description

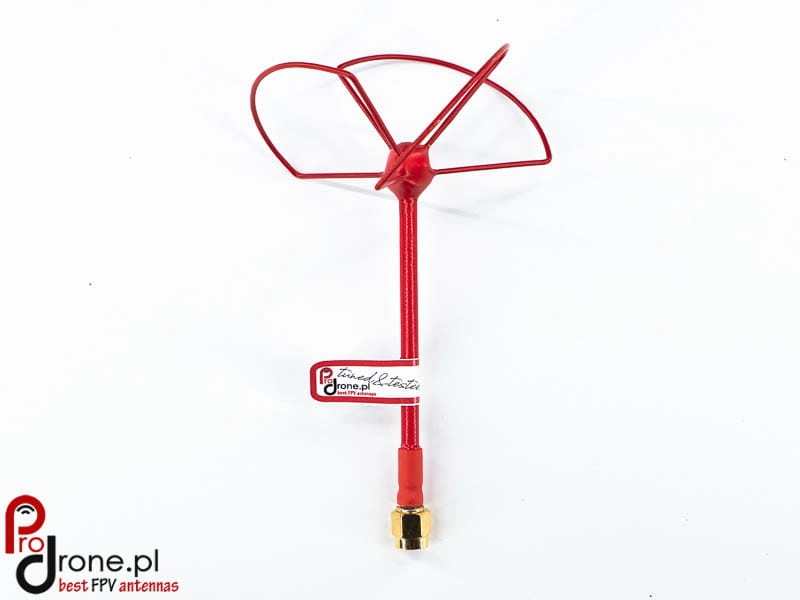

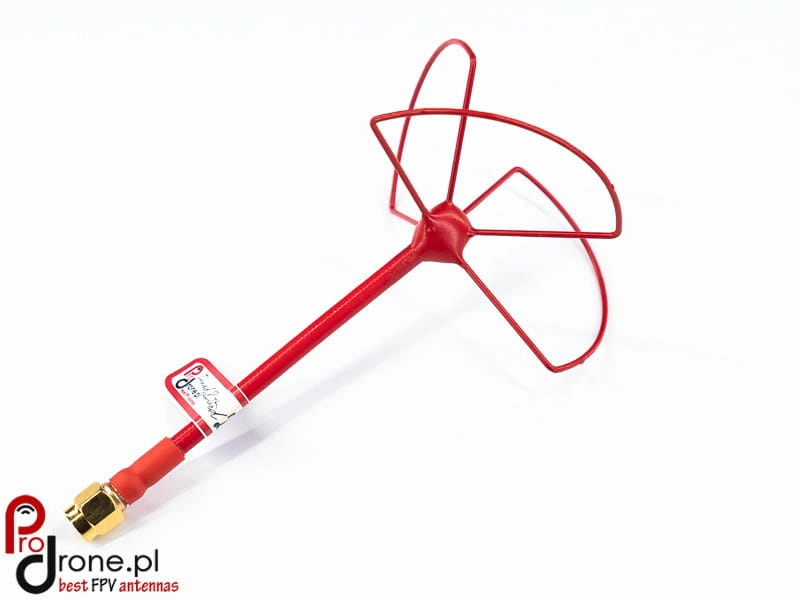

3-lobe cloverleaf TX antenna.
This antenna can also be used as an RX antenna.
RHCP polarization.
It is a circularly polarized antenna. Cloverleaf antennas are omnidirectional, with 360° coverage.
3-lobe cloverleaf antennas have a good axial ratio, so they reject oppositely polarized signals well.
We use high-quality materials to build our cloverleaf antennas. Solder joints are reinforced with a special low-loss adhesive. The antennas are also covered with a special rubber coating that protects and reinforces them. They are built on RG402 cable, which gives the structure sufficient rigidity.
Cloverleaf antenna specifications:
Frequency: 2.4 GHz
Gain: ~1.2 dBi
Cable length: 7 cm
Radiator: 1.2 mm copper-clad steel wire.
Radiator protection: orange rubber coating.
VSWR: below 1.4 over a limited range (due to the antenna's characteristics)
Maximum power: 50 W
Connector: SMA or RP-SMA
Made to order.
