DJI Digital FPV upgrade 2pcs HD cross antennas
product unavailable
add to wish listDescription
Upgrade antennas for DJI Digital FPV System.
Great upgrade of stock antennas.
Better reception and greater ranges.
This set include 2 pieces HD-Cross micro antennas with 9dbi gain. This are directional antennas. In mid range beam-width of each antenna is about 120 degrees.
Mounting them that they will be at angle to each other in about 30-50 degrees will cover about 180 degrees with mid to long range reception. That will allow to users of DJI Digital FPV System to fly far way longer than on stock antennas.
As usually all antennas are perfectly tuned and checked before shipment.
In DJI HD_O upgrade antenna set all antennas have LHCP polarization to perfectly match with DJI FPV system antennas in Air Unit.
Set include:

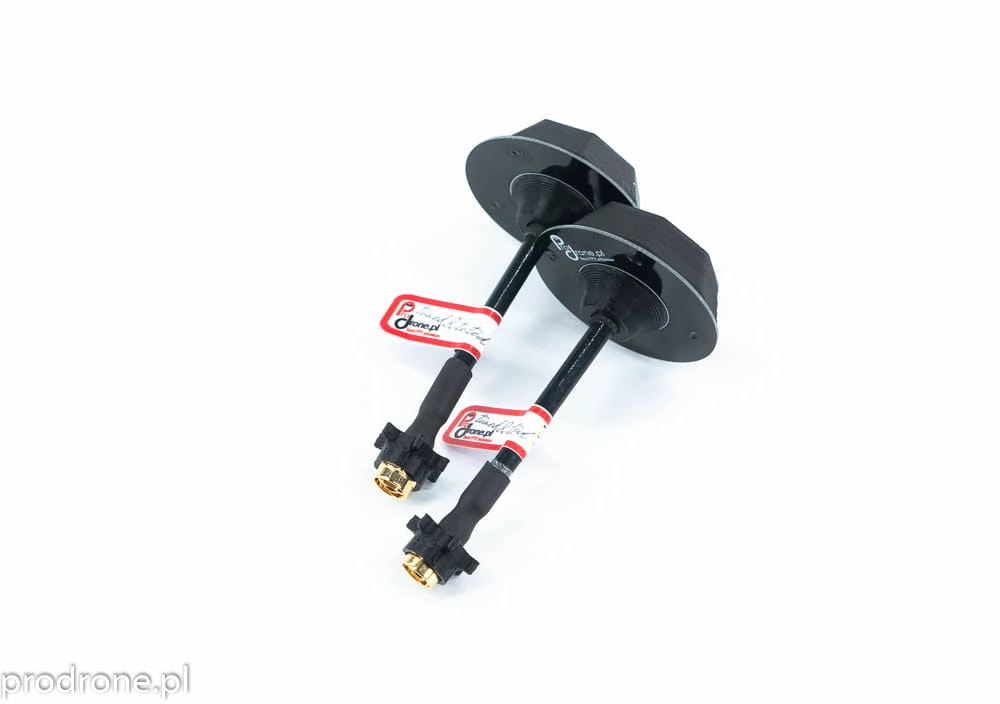

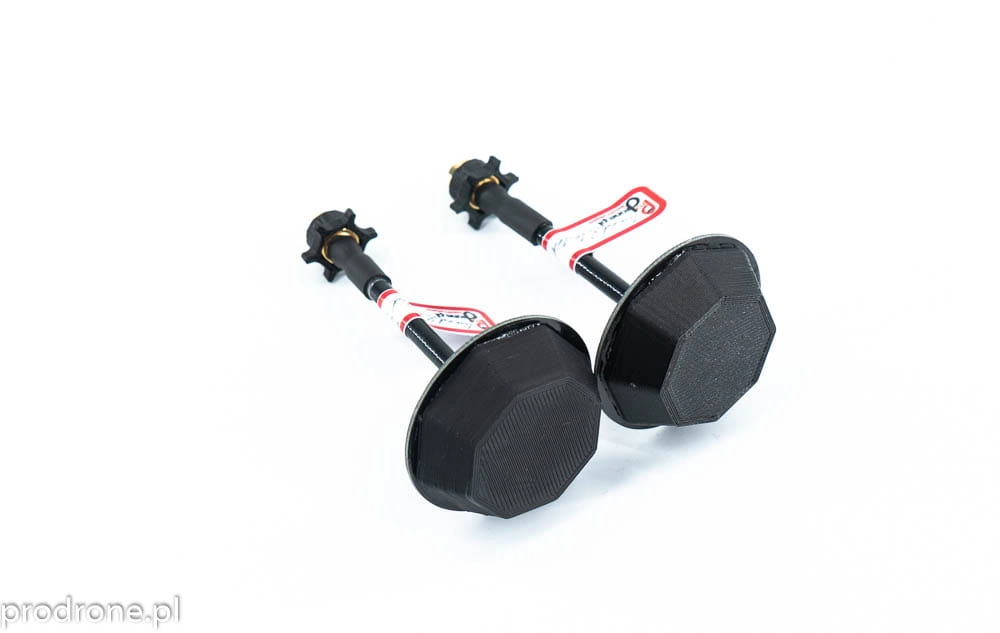

- 2 pieces HD-Cross micro with RP-SMA connectors and LHCP polarization
Key benefits:
- Each antenna is individually tuned (antennas will be tuned for same frequency range) - we say no to random quality antennas.
- Small form factor
- Easy and fast assembly and disassembly (thumb spanners included)
- Lightweight - only 11g
- Extremely wide beam
- Compatible with all receivers (Rapidfire, True-D, True-D X, Pro58, RX5808 etc.)
- DJI friendly :)
- We can tune it to antennas that you already bought at our store, just put note with information from labels on your antennas.
Specification of HD-Cross:
Band: 5.8Ghz
Polarization: Circular
Antenna type: Directional
VSWR: <1.2
Gain: 9dbi
Beam width:80 degrees (up to 140 degrees at shorter ranges)
Polarization: LHCP
Connector type: RP-SMA
Cable length: ~40mm
Overall antenna length: ~65mm
Antenna weight: 11,5g
