Hybrid J-Pole antenna 2.5dbi 1280Mhz

Go to Product feedback
with VAT without VAT
Price 80,00 zł

Shipping costs are not included in the price.

Select product variant

Individual variants may differ in price

Select SMA straight RP-SMA straight
Select 6cm 100cm (+20,00 zł)
szt.
Availability:
on sale
Shipping time: 7 working days

Product code: 4789_20250607122520

Item description

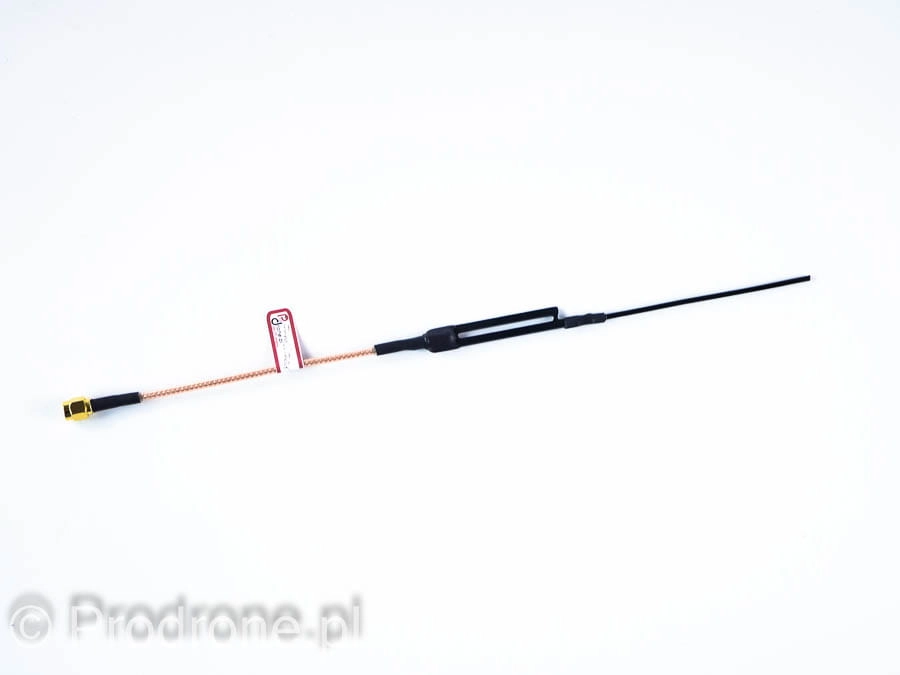

Hybrid J-Pole Antenna – Precision-Tuned for 1280 MHz

Operating in the 1.2 GHz band requires precision, efficiency, and mechanical resilience—especially for airborne and mobile systems. Our 1280 MHz hybrid J-Pole antenna is designed specifically for high-frequency applications where compact size, reliability, and signal integrity are critical.

The J-Pole Advantage at Higher Frequencies

While the J-Pole is known for its simplicity, it scales very effectively into higher frequencies. At 1280 MHz, its shorter physical length allows for even more compact implementations while retaining key benefits:

  • Direct 50-ohm feed via a quarter-wave stub

  • No baluns or tuning circuits needed

  • Balanced radiation pattern with no ground plane required

  • Low-profile structure, perfect for drones and mobile equipment

Ideal Use Cases

  • FPV and digital video transmission

  • High-frequency drone telemetry (UAV/UAS)

  • Advanced RF sensing and data uplinks

  • Short-range microwave links

  • Compact ground or mobile stations

Materials & Construction

  • Stub and base: FR4 PCB with copper traces

  • Radiator: Stiffened PVC-coated steel wire

  • Connector: Gold-plated SMA

  • Form factor: Slim and rugged for field use

Electrical Characteristics

  • Center Frequency: 1280 MHz

  • Bandwidth: ≥ 20 MHz @ RL < -13 dB

  • VSWR: < 1.15 at center frequency

  • Gain: ~2.5 dBi (omnidirectional in H-plane)

  • Weight: < 10 grams

  • Connector: SMA (male standard)

  • Tuning: Individually calibrated and tested

Deployment Options

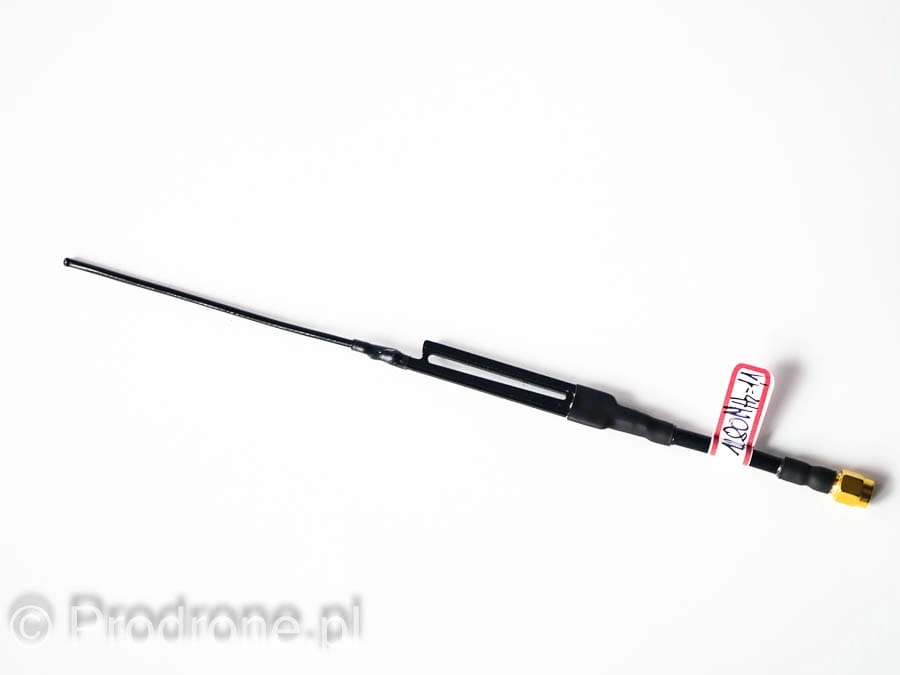

  • Short Version (Rigid):

    • 6 cm RG402 semi-rigid coax

    • Lightweight and impact-resistant—ideal for UAV frames or pods

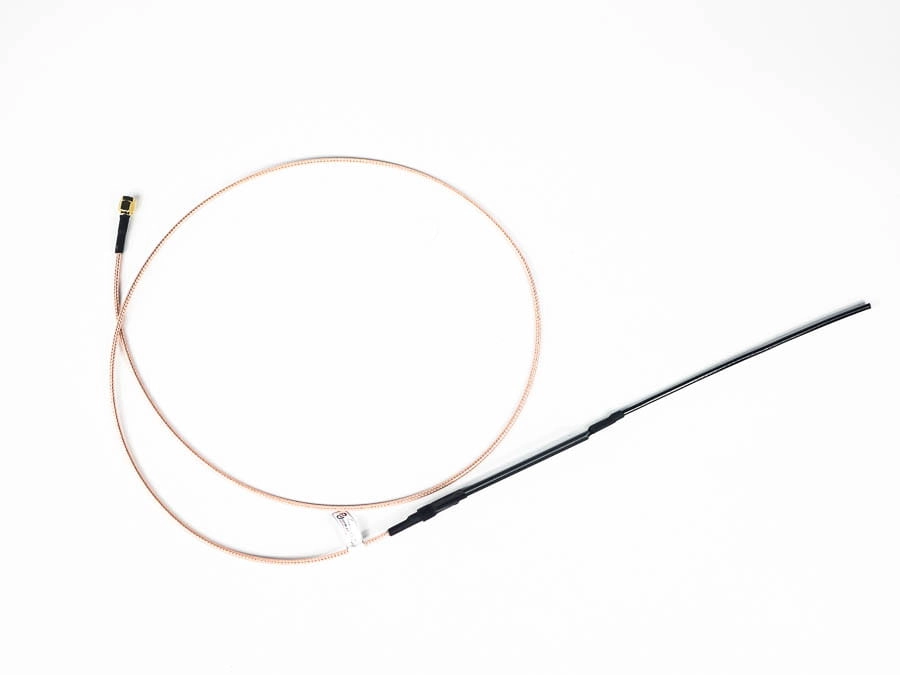

  • Long Version (Flexible):

    • 1 meter RG316D flexible coax

    • Mount to mast, tripod, or mobile kit

Applications

  • FPV systems with low-latency video transmission

  • L-band UAV/UAS telemetry and command links

  • Microwave data relays for robotics or IoT

  • Emergency field communications

  • Portable ground control stations

Built to Withstand Real Conditions

Designed with harsh environments in mind, this antenna’s hybrid construction ensures:

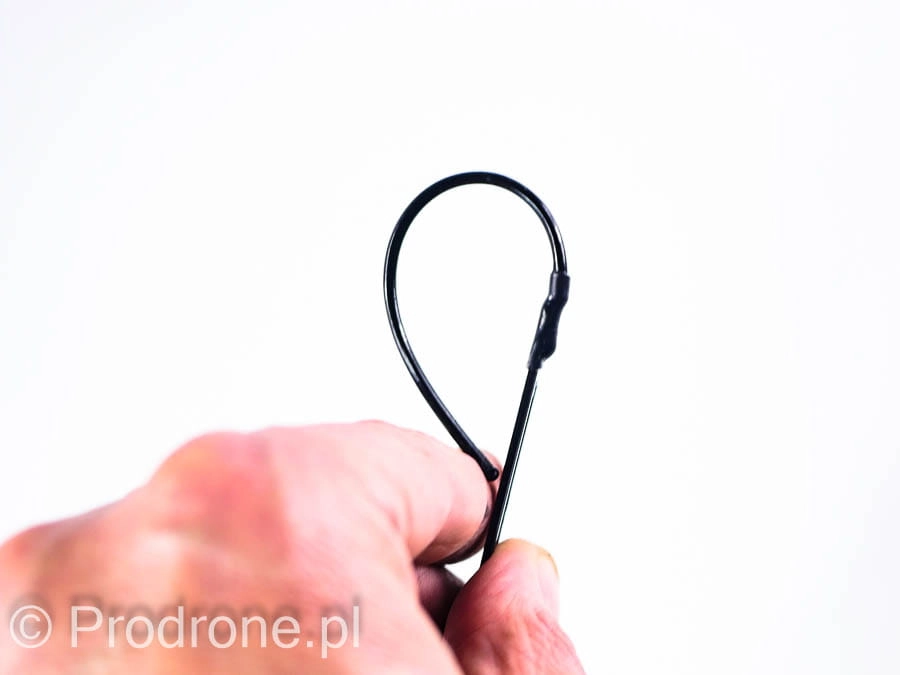

  • High mechanical strength (resists bending and shocks)

  • Excellent weather resistance (moisture, dust, UV)

  • Consistent electrical performance across temperature swings

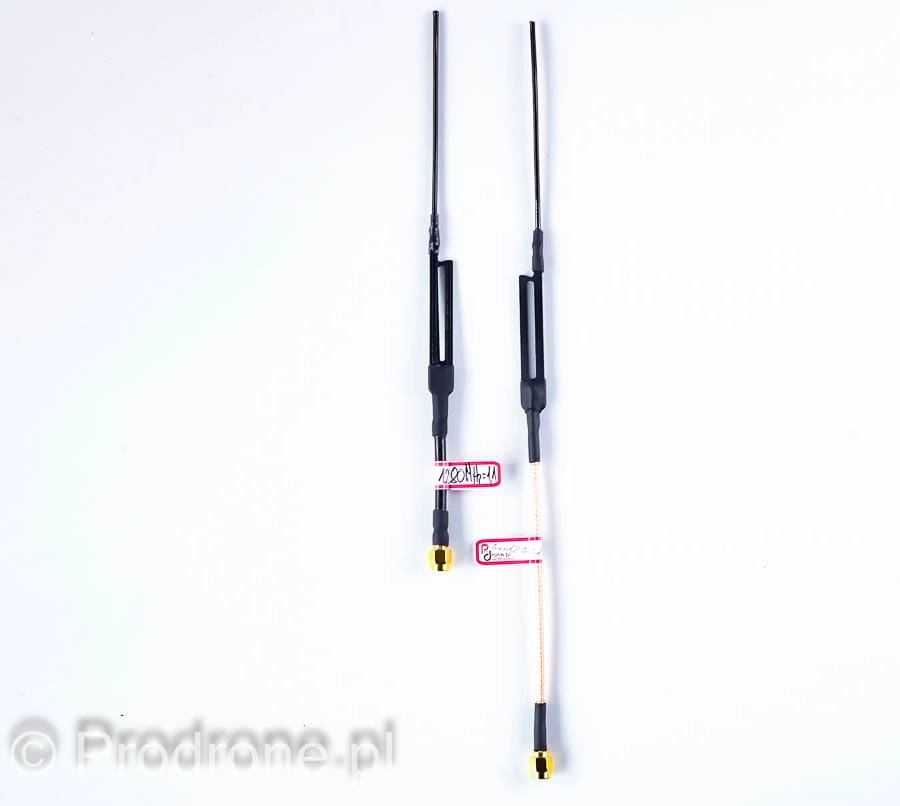

How It Stacks Up Against the Bardpole

The Bardpole has earned its reputation—no argument there. But our Hybrid J-Pole brings its own advantages to the table:

  • Just as precise (or better) – Matches or exceeds the Bardpole’s tuning and bandwidth.

  • Built tougher – Spring steel core resists bends, drops, and vibrations.

  • More flexibility – Choose your cable length and connector type to fit your setup.

  • Same compact profile – Lightweight and streamlined for FPV and telemetry use.

  • No guesswork – Every antenna is individually tuned, so performance stays consistent.
