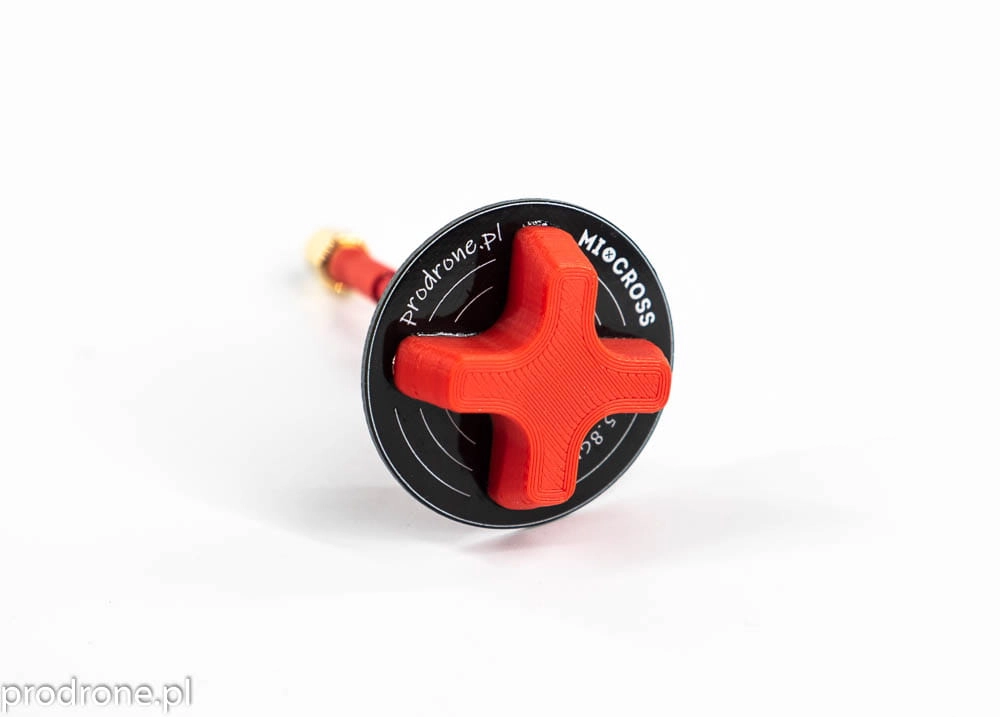

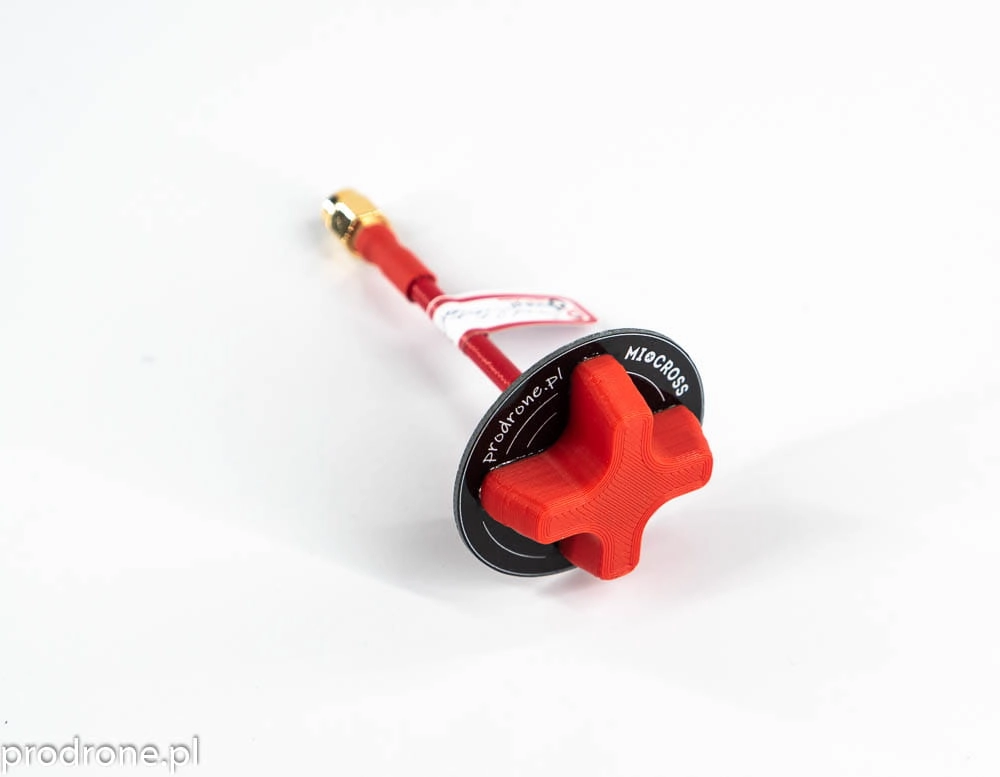

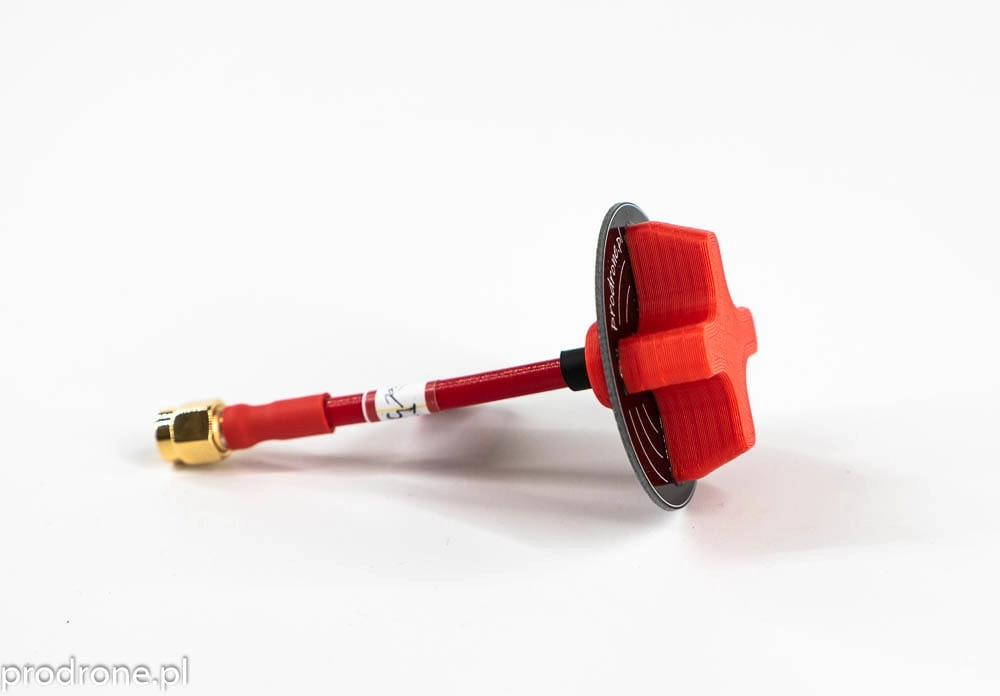

Mi-Cross antenna V2 (mini crosshair style antenna) 5.8Ghz 9dbi
product unavailable
add to wish list
4.21867
Description
Mi-cross antenna was developed specially for drone racers.
It's smaller version of our bestseller - Xtreeme Cross-air V3.
In V3 we upgraded slightly performance.
It's also little bit more durable than V2. V2 was already tough player but V3 is even better.
This is smallest crosshair type antenna on market - but don't be fulled of it's small size, performance is still great.
It's great choice for mid to long range flying.
VSWR is almost in whole Raceband range is below 1:1.2
We also shortened cable to better fit on your goggles. Cable that we are using is dedicated to work up to 18Ghz.
This is semi-rigid cable that allows you bend it in almost any direction, and after that it will stay in place.
There is no need to use additional adapters.
Wide coverage (beamwidth) which is up to 130 degrees and high axial ratio make our Xtreem Cross-air perfect for proximity flying. You will still get signal behind bushes and trees.
Key benefits:
- Each antenna is individually tuned
- Small form factor
- Easy and fast assembly and disassembly (thumb spanners included)
- Lightweight - only 11g
- Extremely wide beam
- Compatible with all receivers (Rapidfire, True-D, True-D X, Pro58, RX5808 etc.)
- DJI friendly :)
- We can tune it to antennas that you already bought at our store, just put note with information from labels on your antennas.
Specification of Mi-Cross:
Band: 5.8Ghz
Polarization: Circular
Antenna type: Directional
VSWR: <1.2
Gain: 9dbi
Beam width:80 degrees (up to 140 degrees at shorter ranges)
Polarization: RHCP or LHCP
Connector type: SMA or RP-SMA
Cable length: ~40mm
Overall antenna length: ~65mm
Antenna weight: 11,5g

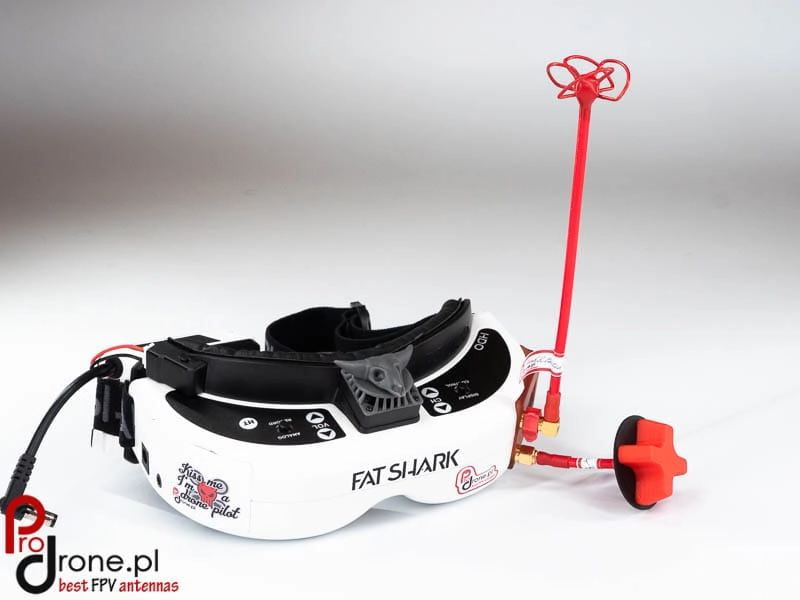

Fatsharks, VRX and second onmi antenna are not included :)
Based on idea of Alex Greve.
Please note that this is directional antenna. Flying behind of it without second omni antenna may provide signal loss.
