MiCross_S FPV SET
product unavailable
add to wish list
Description
MiCross_S FPV SET is a great choice for both digital and analog systems.

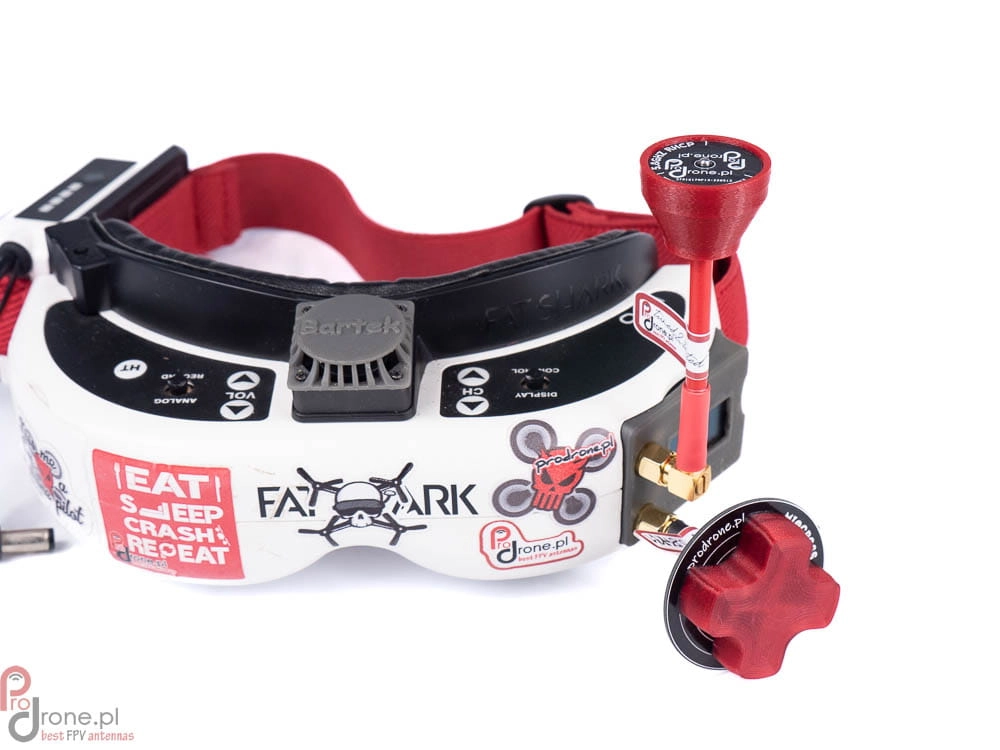

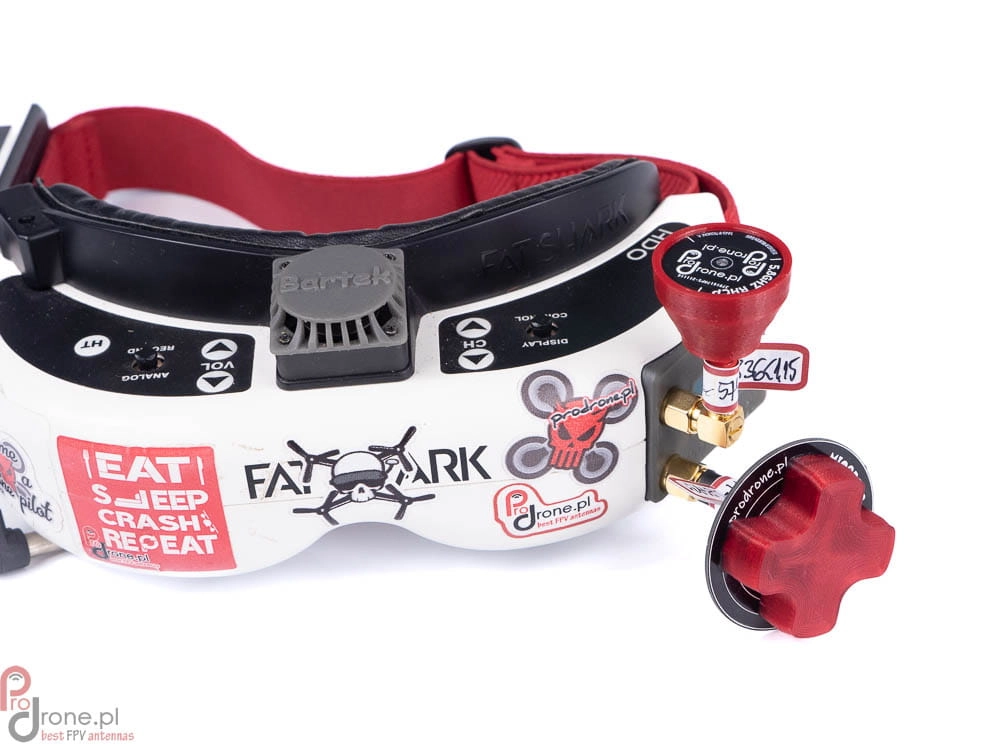

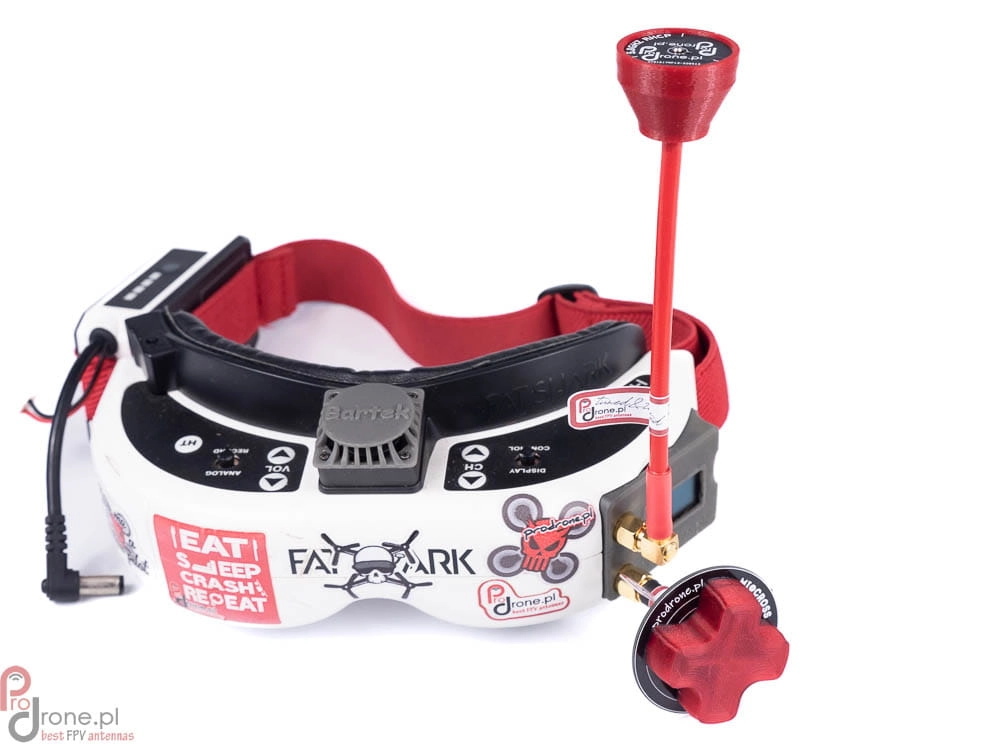

It includes the Micross_S antenna and the Pagoda antenna, Giving you excellent performance for FPV and drone flying.
These antennas are precisly tuned to ensure optimal performance and a seamless user experience.

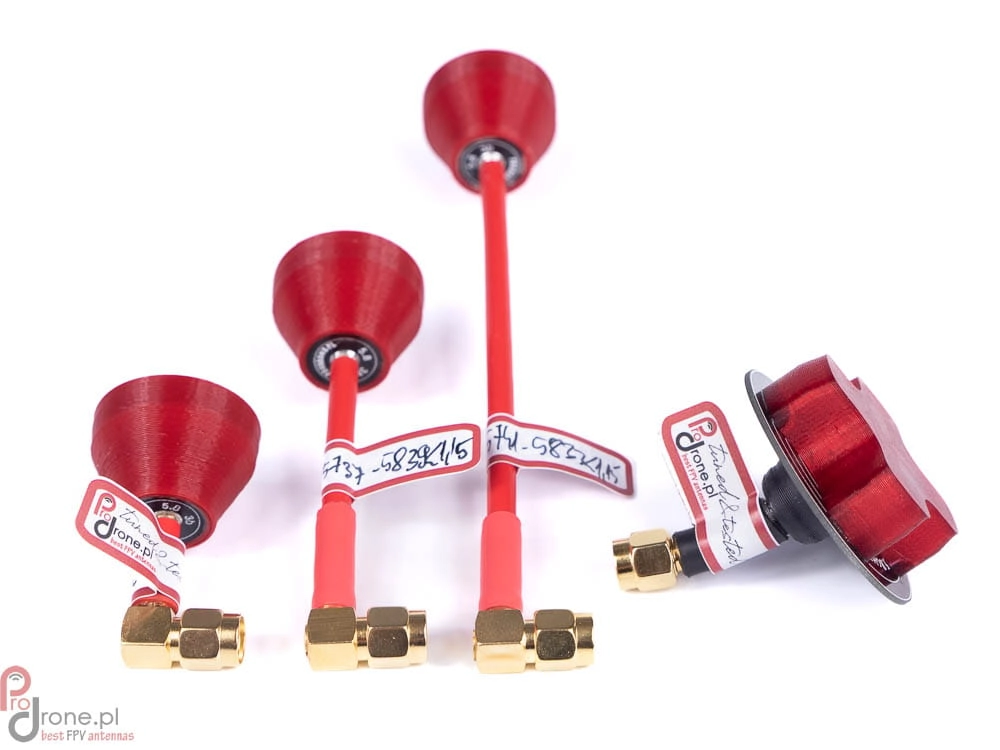

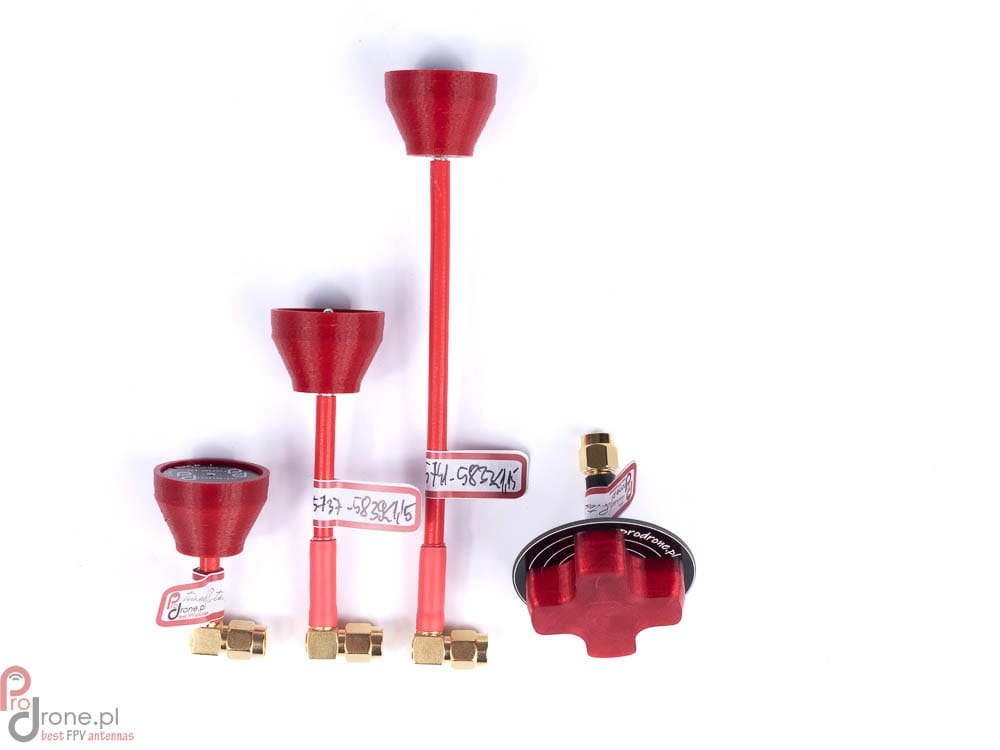

You can choose correct connector for your needs and you have choice of 3 differnent lengths od pagoda antenna.
Micross_S antenna is a circular polarized directional antenna with a 9dbi gain and a beam width of up to 150 degrees at shorter ranges. Its VSWR is below 1:1.3 in almost the whole Raceband range, making it a great choice for long-range flying. The antenna is also equipped with high-quality semi-rigid cable, allowing it to be pointed in almost any direction and stay in that position. The Xtreeme Crosshair is available in both RHCP and LHCP polarization options and can be fitted with either SMA or RP-SMA connectors.
The Prodrone Pagoda 2.1 antenna is an omni-directional antenna that provides excellent performance with a gain of 1.1 dBi and a vSWR lower than 1.3. It has a maximum power input of 50W and is available in both RHCP and LHCP polarization options with either SMA or RP-SMA connectors. The antenna is approximately 14cm in length and is a great choice for beginners and advanced users alike.
With both Micross_S and Pagoda antenna included in this set, you can rest assured that you'll be able to achieve the best possible signal quality and range, no matter what your specific needs may be. These antennas are perfect for both beginners and experienced FPV enthusiasts, and they're also compatible with a wide range of DJI systems. So whether you're a hobbyist or a professional, the Xtreeme Crosshair Goggles SET is the perfect choice for all of your FPV and drone needs.
Specyfication of Xtreem Cross-air:
Band: Raceband 5.8Ghz (VSWR <1.3)
Polarization: Circular
Antenna type: Directional
VSWR: <1.2
Gain: 10dbi
Beam width:70 degrees (up to 120 degrees at shorter ranges)
Polarization: RHCP or LHCP
Connector type: SMA or RP-SMA
Overall antenna length: ~40
Specification of Prodrone Pagoda 2.1 antenna
Working Frequency: 5.8GHz
Omni directional antenna
Gain: 1,1 dBi
vSWR: lower than 1.3
Maximum power input: 50W
Connector: SMA or RP-SMA
Polarization: RHCP or LHCP
In this set you will get one pagoda antenna and one MiCross_S antenna.
