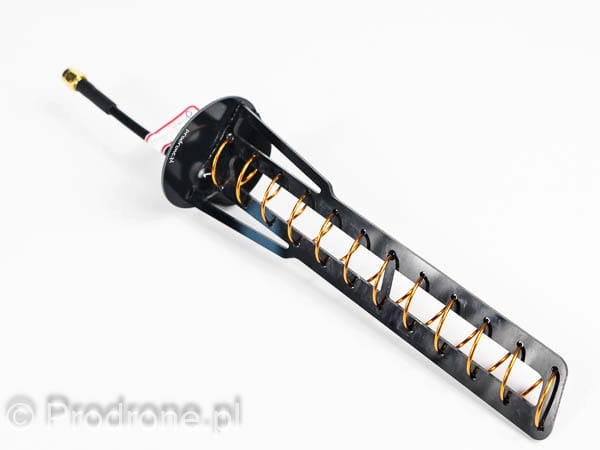

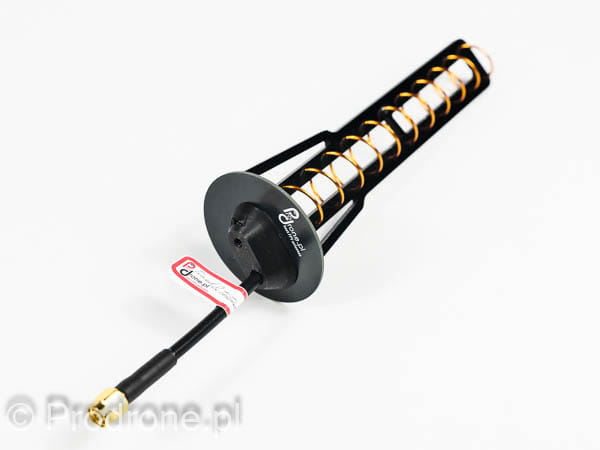

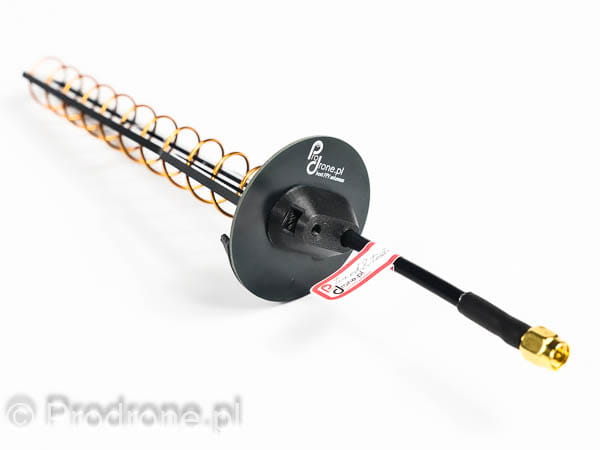

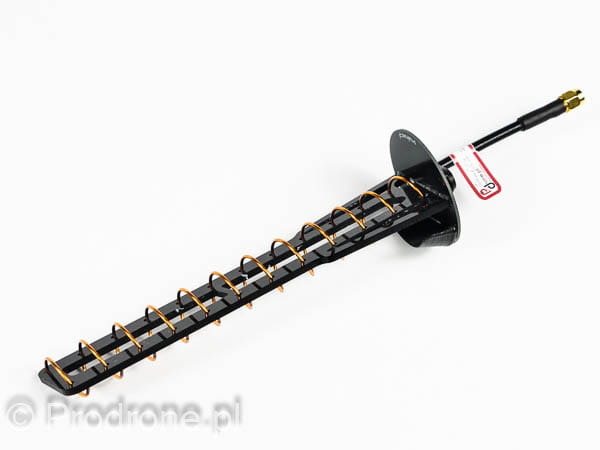

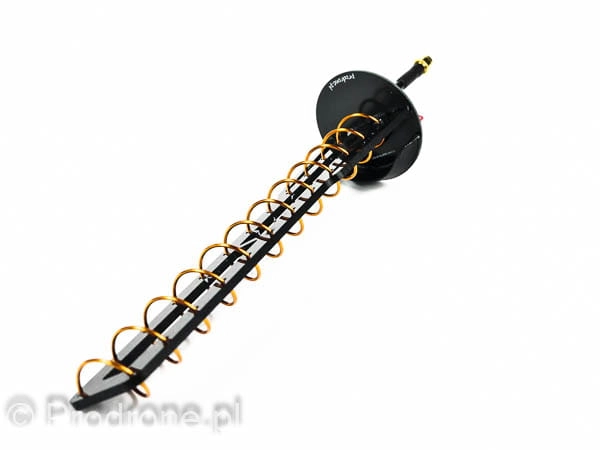

Prodrone PRO 12T Helical Antenna Collection - 10 Piece Professional Set

Exclusive RHCP Configuration | SMA Straight Connector | Professional Grade

Transform your FPV operations with this comprehensive 10-antenna collection, meticulously engineered for pilots who demand unwavering signal excellence across extended ranges.

Precision Engineering at Scale

This professional antenna set represents the pinnacle of helical design technology. Each unit features our signature 12-turn configuration, delivering exceptional directional control with a concentrated 30-degree beam pattern that expands intelligently to 50-60 degrees for versatile operational requirements.

Core Performance Specifications

Signal Characteristics:

• Frequency Coverage: 5640-5945 MHz optimized range
• Directional Gain: 14 dBi precision-calibrated output
• Polarization: Right-Hand Circular Polarization (RHCP) exclusive
• Beam Pattern: Variable 30-60 degree coverage zone

Construction Excellence:

• Helical Turns: 12-element precision spiral
• Wire Specification: 1.2mm enameled copper core
• Reflector: 45mm diameter wave concentrator
• Cable: Semi-rigid RG402 professional grade
• Weight: 27 grams per antenna unit
• Connector: SMA straight interface

Advanced Technical Performance

Electrical Specifications:

• VSWR Performance: <1.2 across operational bandwidth
• Power Handling: 50W maximum input capacity
• Impedance: 50 Ohms standard matching
• Axial Ratio: Optimized for circular polarization integrity
•

Professional Antenna Matching System

Why invest in a complete 10-piece collection? Frequency synchronization across multiple antennas is crucial for professional operations. Our manufacturing process ensures each antenna in your set is individually calibrated to identical specifications, eliminating the performance variations that plague mixed antenna systems.

System Integration Benefits:

• Uniform VSWR characteristics across all units
• Consistent axial ratio performance
• Identical frequency response curves
• Coordinated polarization alignment

When antennas operate at different resonant frequencies, system performance degrades significantly. Antenna A might excel at 5640 MHz while struggling at 5900 MHz, creating unpredictable coverage gaps. Our matched set eliminates these inconsistencies, providing reliable performance across the entire operational spectrum.

Quality Assurance Protocol

Every antenna undergoes our comprehensive validation process:

Manufacturing Standards:

• Individual hand assembly by certified technicians
• Vector Network Analyzer (VNA) verification testing
• Custom frequency tuning and calibration

Multi-Path Interference Mitigation: Circular polarization technology provides superior resistance to signal degradation caused by reflections and environmental obstacles, maintaining link stability in challenging operational environments.

Mounting and Installation

Each antenna includes integrated M3 mounting provisions (hardware available upon request - simply add a note to your order for complimentary screws and nuts).

Professional Applications

This antenna collection serves demanding applications including:

• Extended-range FPV operations
• Competition racing environments
• Professional aerial cinematography
• Research and development projects
• Multi-aircraft coordination systems

Technical Support and Warranty

As specialized antenna manufacturers, we provide comprehensive technical support for system integration and optimization. Each 10-piece set includes simplified specification.

Package Contents:

• 10x Prodrone PRO 12T Helical Antennas (RHCP)
• Individual performance certificates - label with best freqency range

Note: This professional antenna collection is designed for operators who understand the critical importance of antenna matching in high-performance wireless systems. Each set is custom-tuned to ensure optimal system integration and performance consistency.

Each antenna has mounting option by m3 screw and M3 nut (screw and nut are not incuded, but if you will put note to order that you will need them - then you will get it :)
