On sale
Micross_digi Set
Antenna Pro Pagoda 2.1 Long goggles edition (lhcp red)
Penetrator 16dbi - helical antenna 18 turn 5.8 GHz
MiCross_short 5.8Ghz 9dbi
Mi-Cross antenna V2 (mini crosshair style antenna) 5.8Ghz 9dbi

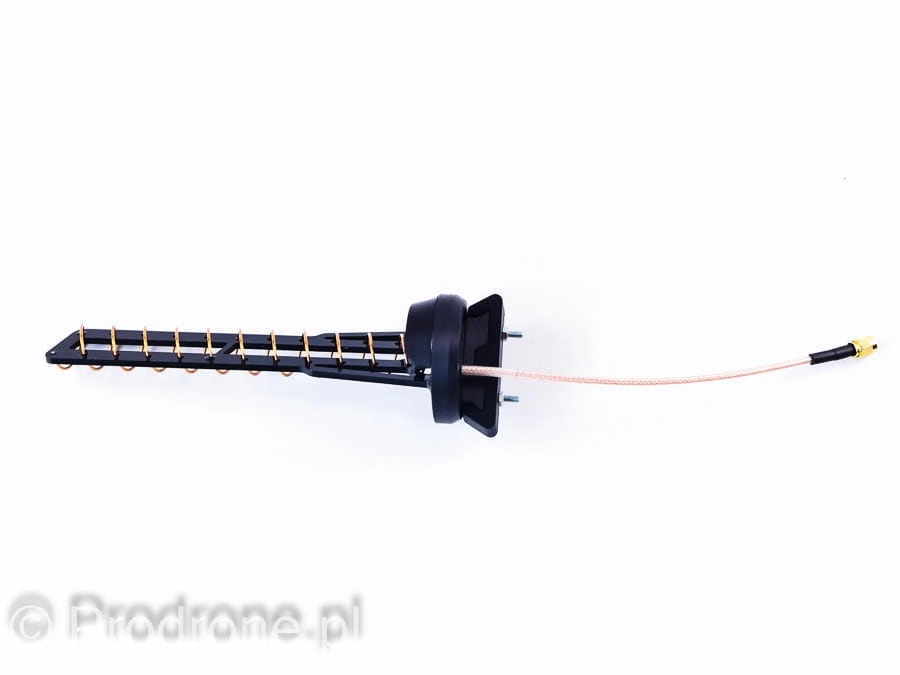

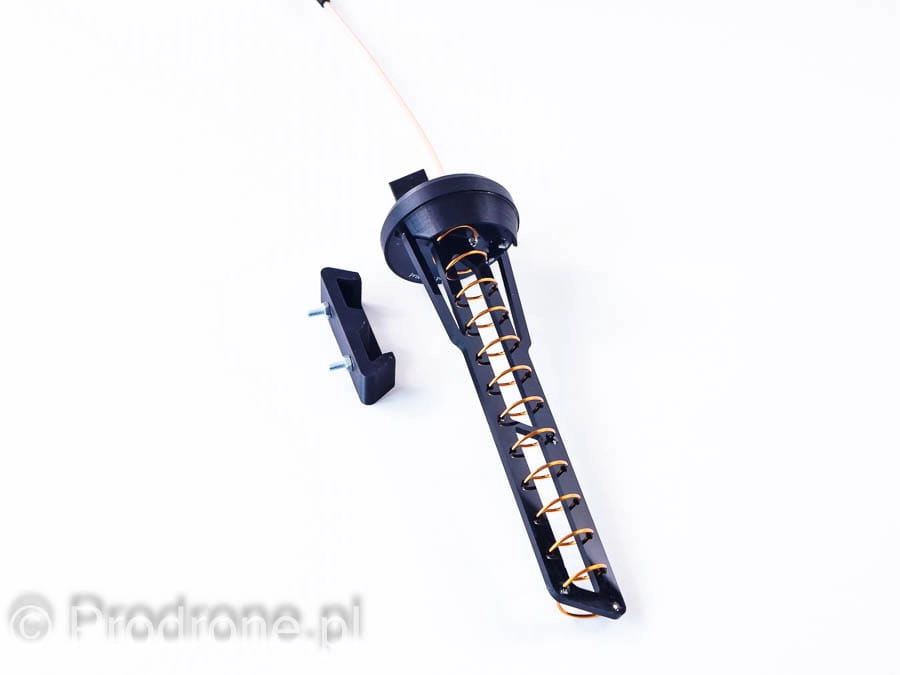

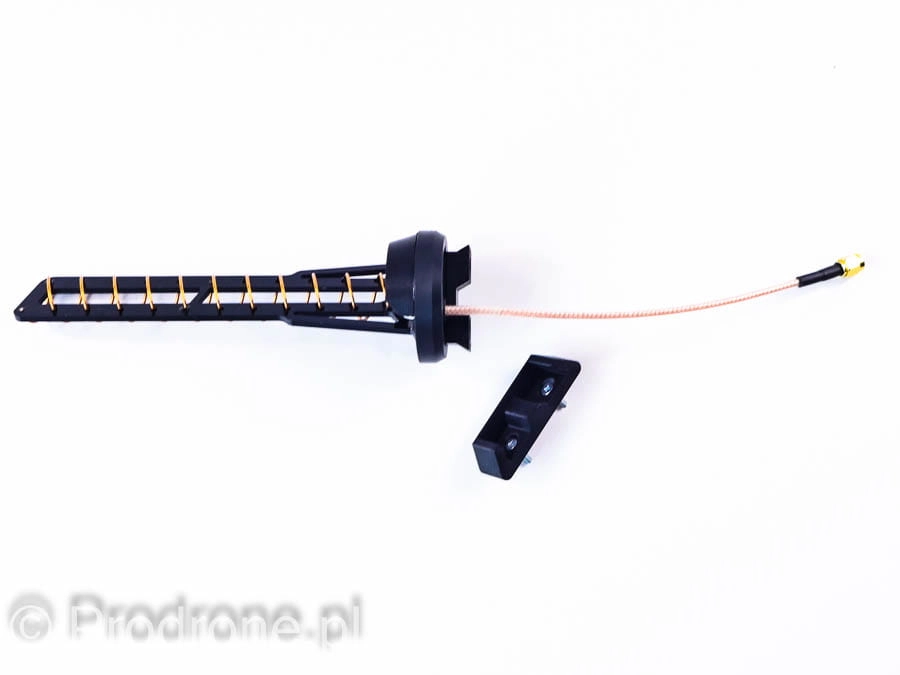

PRO Helical antenna 12 turn 5.8 GHz 14dbi v2_tracker
Availability:
on sale
Dispatched within:
8 working days
Price:
Net price:
121,14 zł
product unavailable
add to wish list
* - Field mandatory
Rating:
4.81
4.81
Vendor:
-
Product code:
85_20200427135412
Description
Strictly dedicated for trackers.
Longer flexible cable and quick mount system.
Gain of Helical antenna is ~14dBi and this is real gain. Great antenna for very long FPV.
Prodrone PRO 9 Turn Helical has beam ~30 degrees. This is real beam width at highest gain.
At shorter range beam width can archive over 50 degrees.
Cables that we are using have very low attenuation, so you'll be able to fly even further.
Specification of Prodrone PRO 12T helical antenna:
- Bandwidth: 5640-5945 MHz
- Beam width: 30 degrees with highest gain, 50-60 at close range
- Gain: 14 dBi
- Reflector diameter: 45mm
- Cable length: ~20cm
- Antenna conductor: 1mm silver covered pure copper
- Turns: 12
- Polarisation: RHCP - Right Hand Circular Polarisation
- vSWR: lower than 1.3
- Maximum power input: 50W
- Connector: SMA or RP-SMA
- Weight of antenna: ~32g
