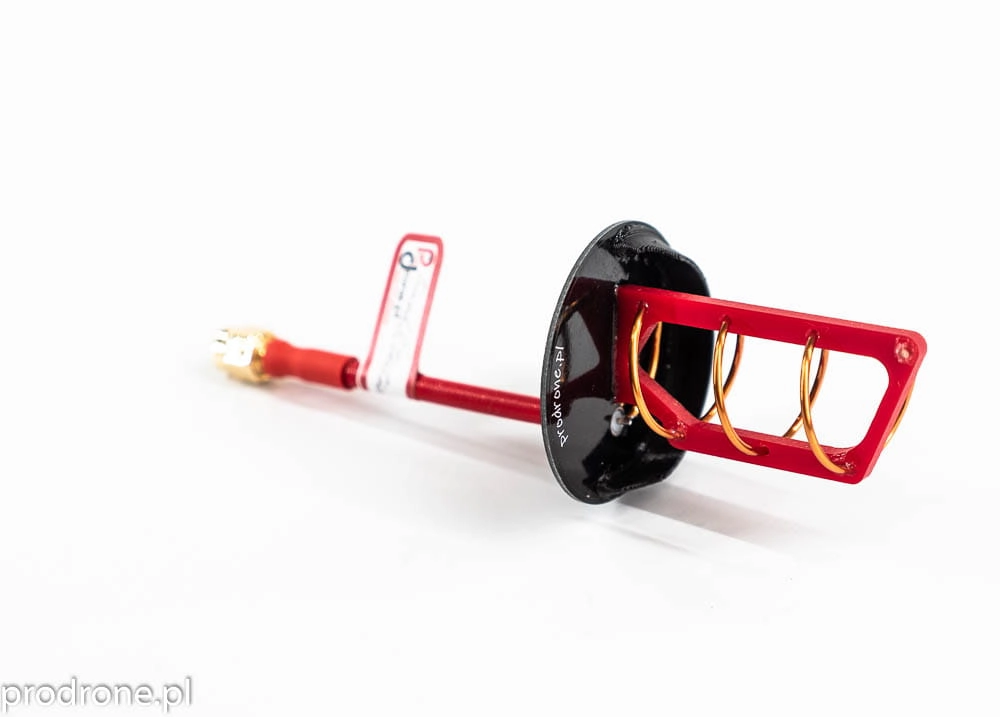

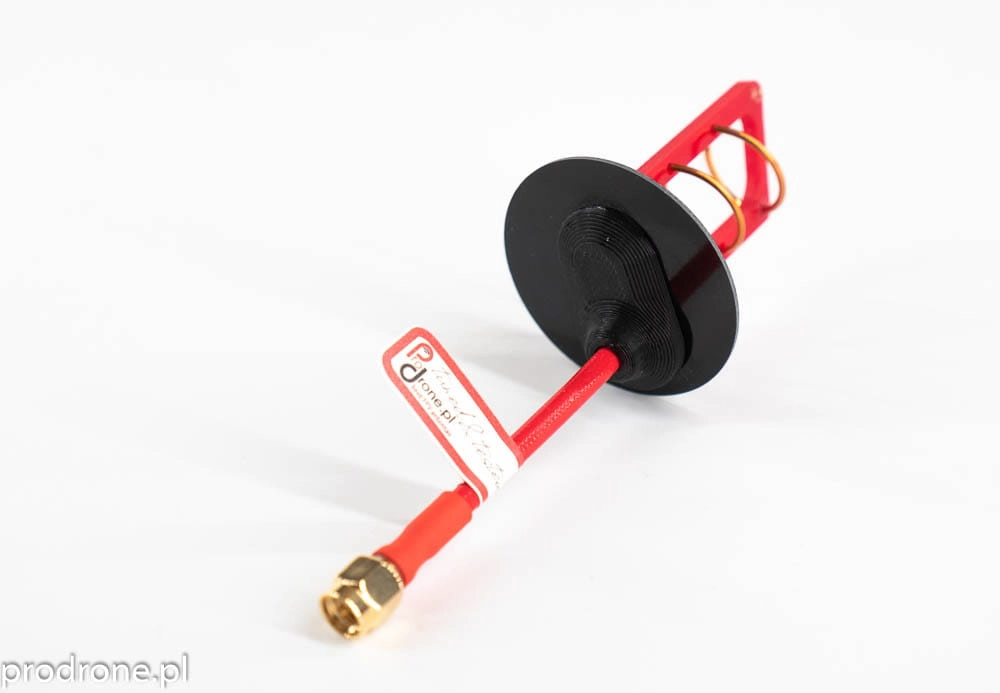

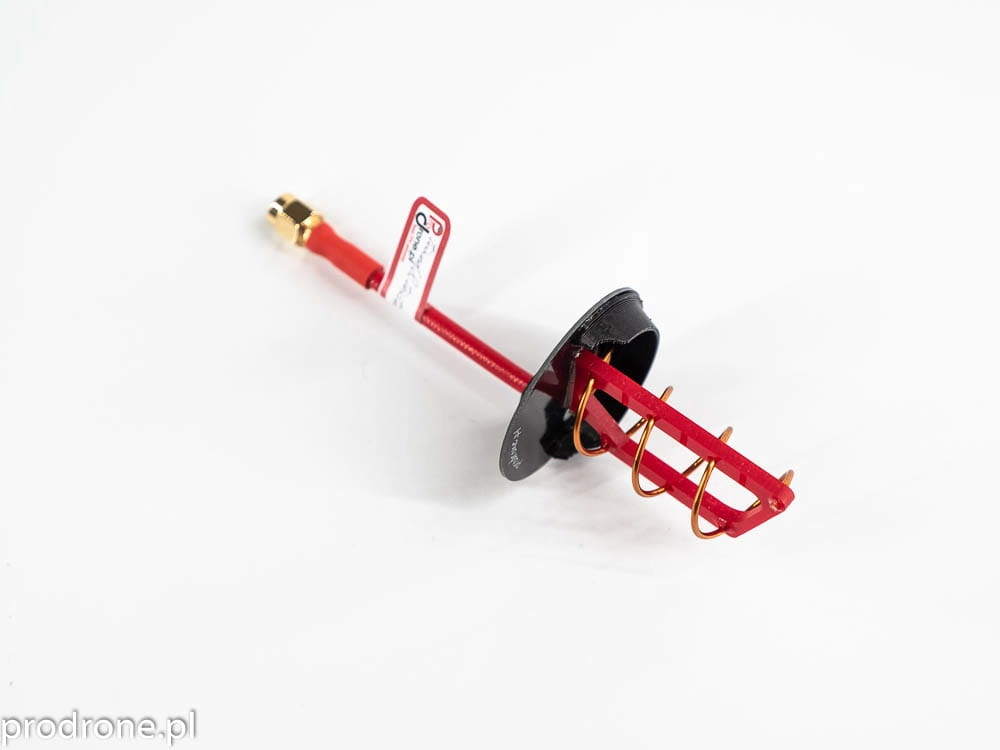

PRO Helical antenna 3.5 turn 5.8Ghz 8.8 dbi v2

Availability: on sale
Dispatched within: 8 working days
Price: 70,00 zł 70.00
quantity szt.
You gain 7 points [?]
add to wish list
* - Field mandatory
Rating: 0
Vendor: -
Product code: 85_20200427134342

Description

Gain of Helical antenna is ~8dbi. Prodrone PRO 3.5 Turn Helical has very wide beam - 60 degrees. This is real beam width at highest gain. At shorter ranges beam width can archive 120 degrees.

All PRO Helical antenna series have a semi-rigid cable. We are using high quality RG402 cables (mainly made by Belden or Suhner). We are not using cheap chinese cables.

Semi-Rigid cable means that you can bend it and it will stay in that position. You can use this antennas on gogles.

This means that antenna can be pointed in any direction and there is no need for using any adapters.

Cables that we are using have very low attenuation, so you'll be able to fly even further.

Specification of 3.5 turn Helical antenna:

  • Bandwidth: 5630-5980 MHz
  • Beam width: 60 degrees - highest gain, 120 degrees - with lower gain
  • Gain: 8,8 dBi
  • Reflector diameter: ~45mm
  • Cable length: ~5cm
  • Antenna conductor: 1mm silver covered pure copper
  • Turns: 3.5
  • Polarisation: RHCP - Right Hand Circular Polarisation
  • vSWR: lower than 1.3
  • Maximum power input: 50W
  • Connector: SMA or RP-SMA
  • Weight of antenna: ~16g

Product reviews (1)

2 September 2020

Hello! For FPV longrange with quadcopter is better this one or the "v3 Xtreem Cross-air 5.8GHz 10dbi antenna" (on my goggles) as second antenna next to a Cloverleaf?
