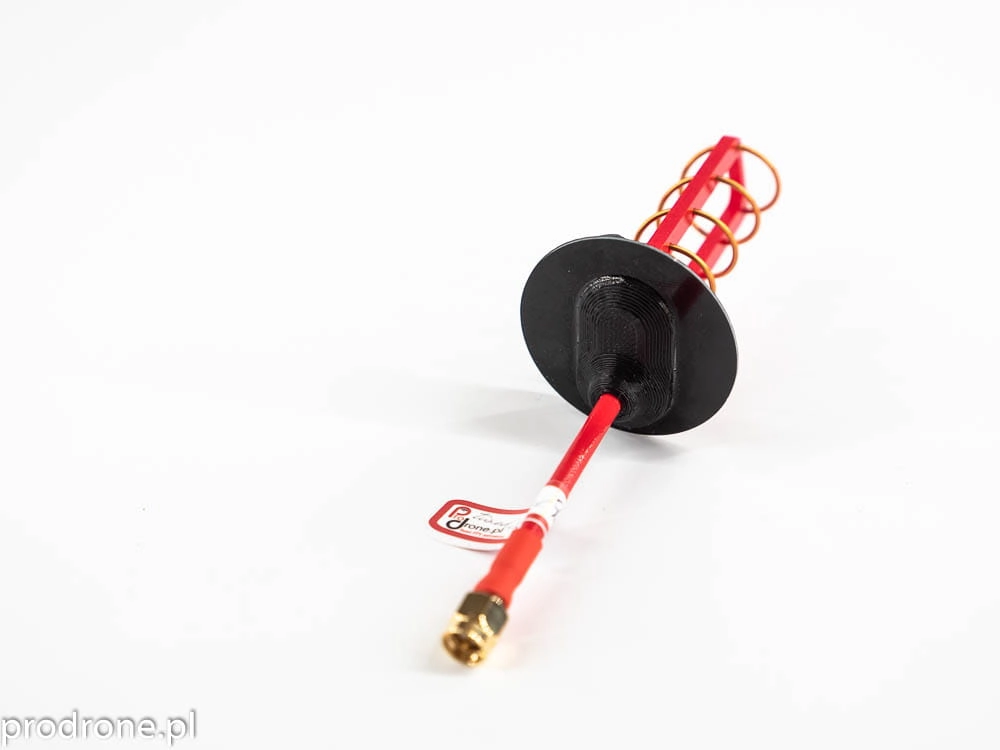

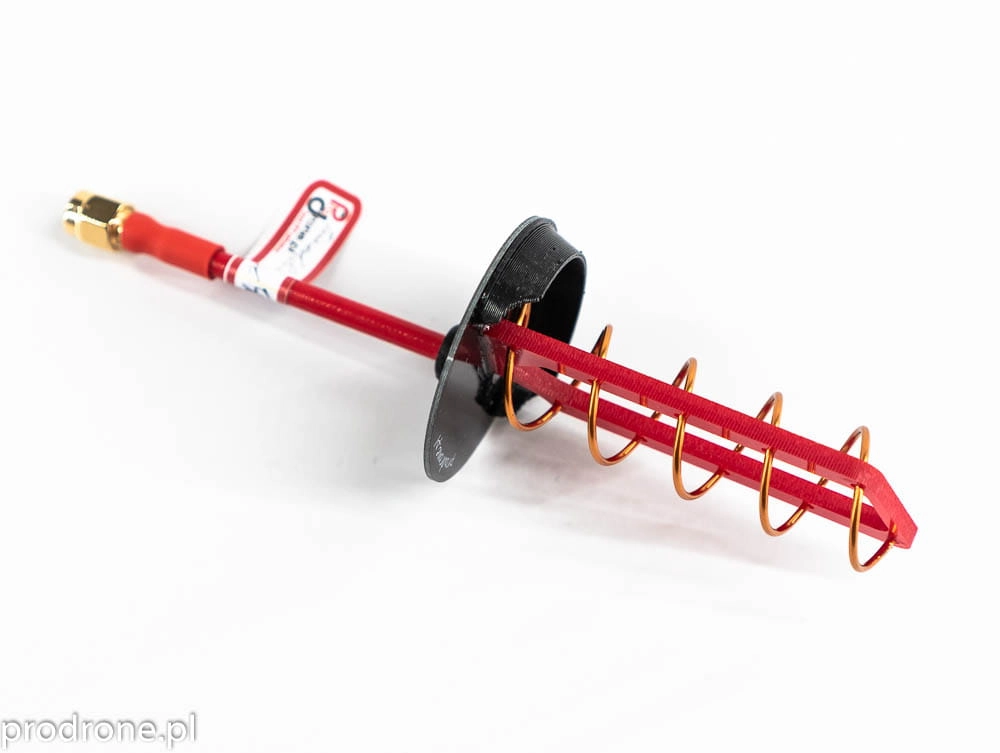

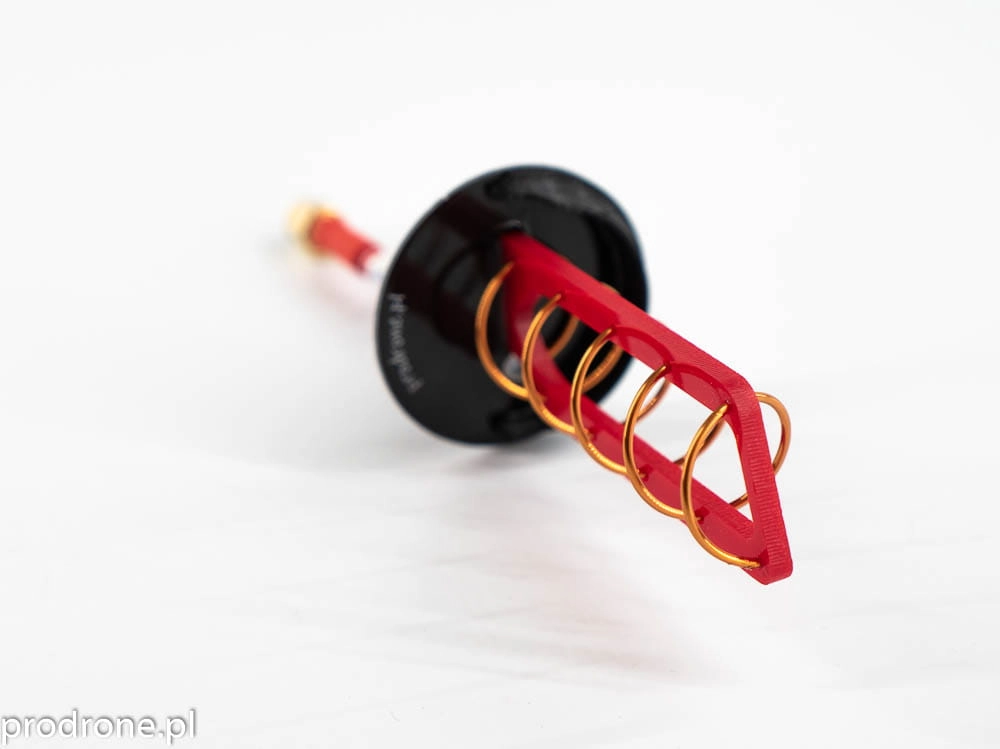

PRO Helical antenna 5 turn 5.8Ghz 10dbi v2
4.5
Description
Gain of Helical antenna is ~10dbi. Prodrone PRO 5 Turn Helical has very wide beam - 50 degrees. This is real beam width at highest gain. At shorter ranges beam width can archive 120 degrees.
All PRO Helical antenna series have a semi-rigid cable. We are using high quality RG402 cables. We are not using cheapest cables.
Semi-Rigid cable means that you can bend it and it will stay in that position. You can use this antennas on gogles.
This means that antenna can be pointed in any direction and there is no need for using any adapters.
Cables that we are using have very low attenuation, so you'll be able to fly even further.
Our antennas are checked few times in production. Each antenna has label with basic information on what frequency range does it best performes.
Buying more than one antenna you will get all antennas tuned for same frequency range. We don't sell random quality antennas.
Specification of 5 turn Helical antenna:
- Bandwidth: 5630-5980 MHz
- Beam width: 50 degrees - highest gain, 120 degrees - with lower gain
- Gain: 10 dBi
- Reflector diameter: ~45mm
- Cable length: ~5cm
- Antenna conductor: 1.2mm enamel covered pure copper
- Turns: 5
- Polarisation: RHCP or LHCP
- vSWR: lower than 1.2
- Maximum power input: 50W
- Connector: SMA or RP-SMA
- Weight of antenna: ~15g
Pat6874
Cette antenne est simplement super. J'ai testé de nombreuses antennes en 5.8 ghz, mais celle-ci est bien au dessus de la concurrence. Couplée à une clover à l'émission, on est sûr d'avoir un équipement au top.
Anirudh Ubgade
Have been using this on a SkyZone Cobra X goggle and it has amazing penetration. Noticeably better than performance than patch antenna in the same price range.
