PRO Helical antenna 7 turn 5.8Ghz 12dbi v2

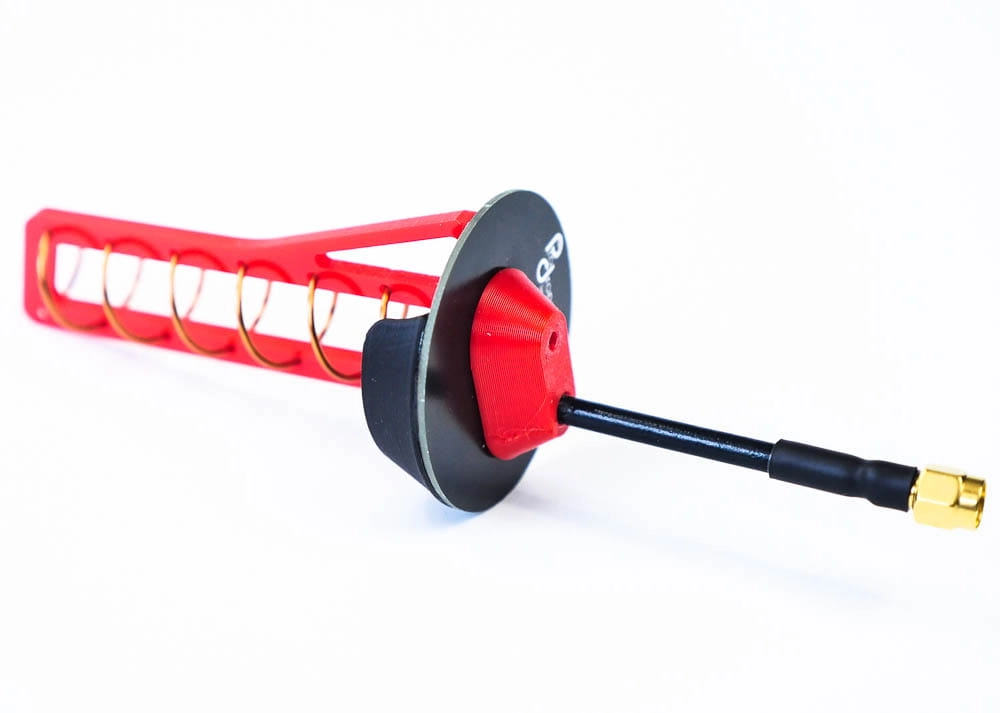

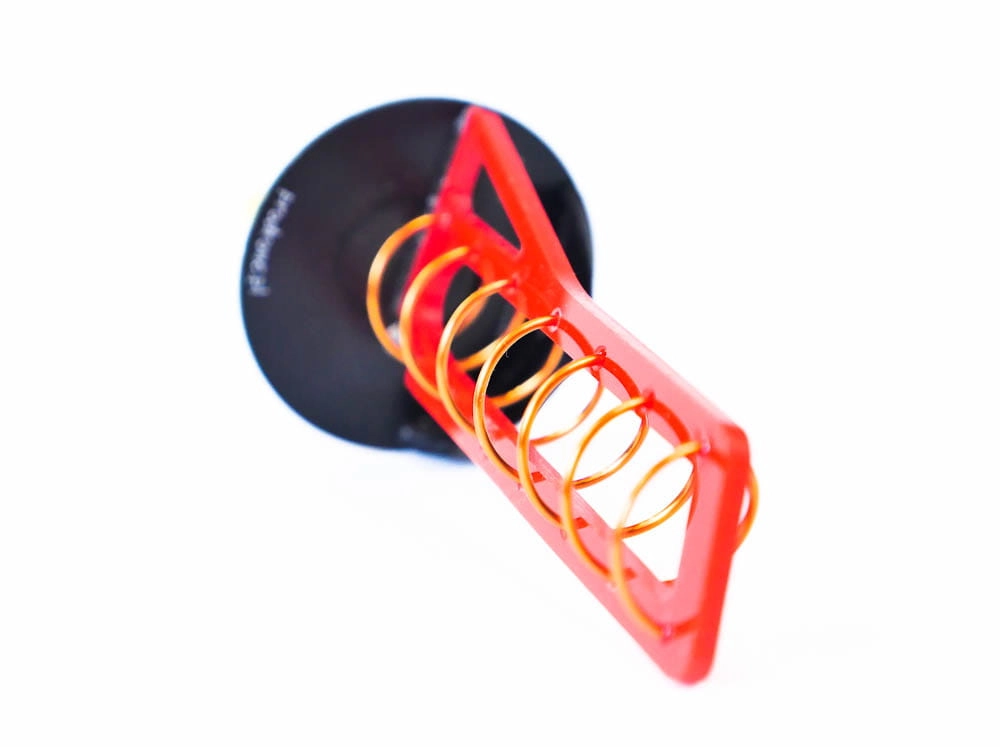

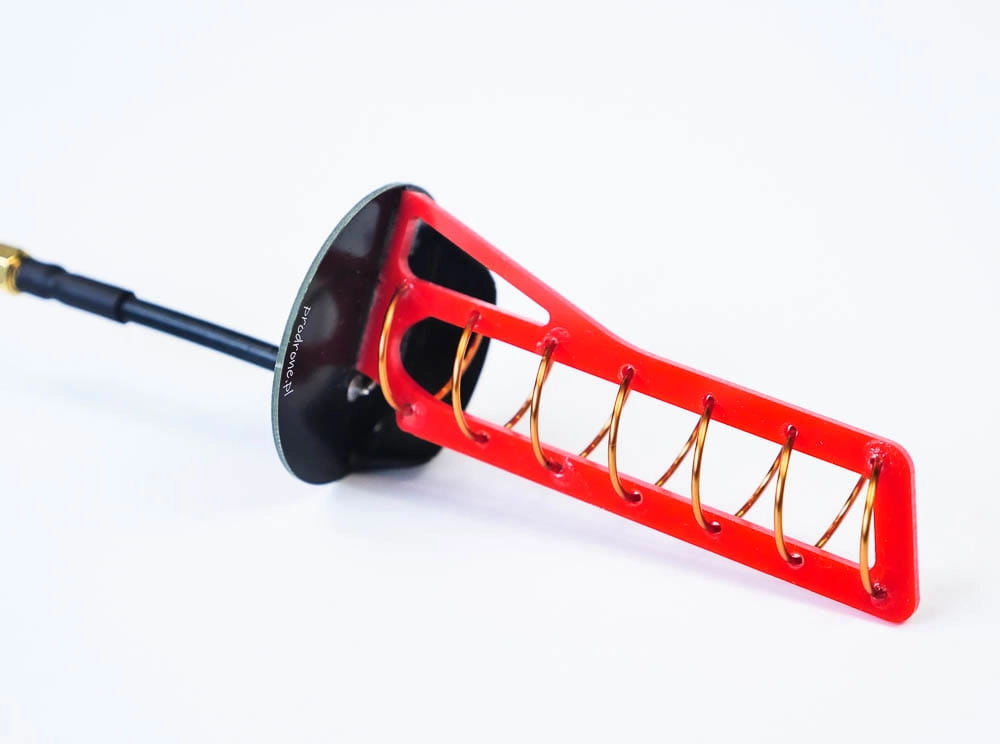

Prodrone PRO 7 Turn Helical Antenna

Get the best signal reception with our Prodrone PRO 7 Turn Helical Antenna. With a gain of 12 dBi, this antenna ensures you stay connected even at long distances.

Key Features:

• High Gain of 12 dBi: Stronger, clearer connections.
• Wide Beam Width: 50 degrees at highest gain, up to 120 degrees at shorter ranges.
• Semi-Rigid Cable: Made from high-quality RG402 cables. Bend it to the position you need and it stays there. Perfect for use on goggles without extra adapters.
• Low Signal Loss: High-quality cables mean you can fly further with a better signal.
• Thorough Testing: Each antenna is checked multiple times during production. Labels show the best frequency range. If you buy more than one, they’re tuned to the same frequency.

Specifications:

• Bandwidth: 5630-5980 MHz
• Beam Width: 50 degrees at highest gain, 120 degrees at shorter ranges
• Gain: 12 dBi
• Reflector Diameter: ~45mm
• Cable Length: ~6cm
• Antenna Conductor: 1.2mm enamel-covered pure copper
• Turns: 7
• Polarization: RHCP or LHCP
• VSWR: Lower than 1.2
• Maximum Power Input: 50W
• Connector: SMA or RP-SMA
• Weight: ~15g

Perfect for FPV and Long-Range Drone Flights

This antenna is ideal for First Person View (FPV) flying, giving you a real-time view from your drone. It's perfect for long-range flights, ensuring you maintain a strong, reliable connection over greater distances. Whether you're exploring new heights or capturing breathtaking scenery, the Prodrone PRO 7 Turn Helical Antenna provides the performance you need for all your drone adventures.

Upgrade your setup with the Prodrone PRO 7 Turn Helical Antenna for better range and reliable connections.
