PRO Helical antenna 7 turn LOW BAND VERSION 5.2GHz 12dbi v2

IMPORTANT: This is a special version of the Helical antenna, specifically tuned for the 5000-5400 MHz frequency range. Because it’s designed for this lower band, it will have much weaker performance if you try to use it in the 5.8 GHz range, so we don’t recommend it for that purpose. This is a custom-made version, built and tuned for a specific order, which means it is non-returnable and non-exchangeable.

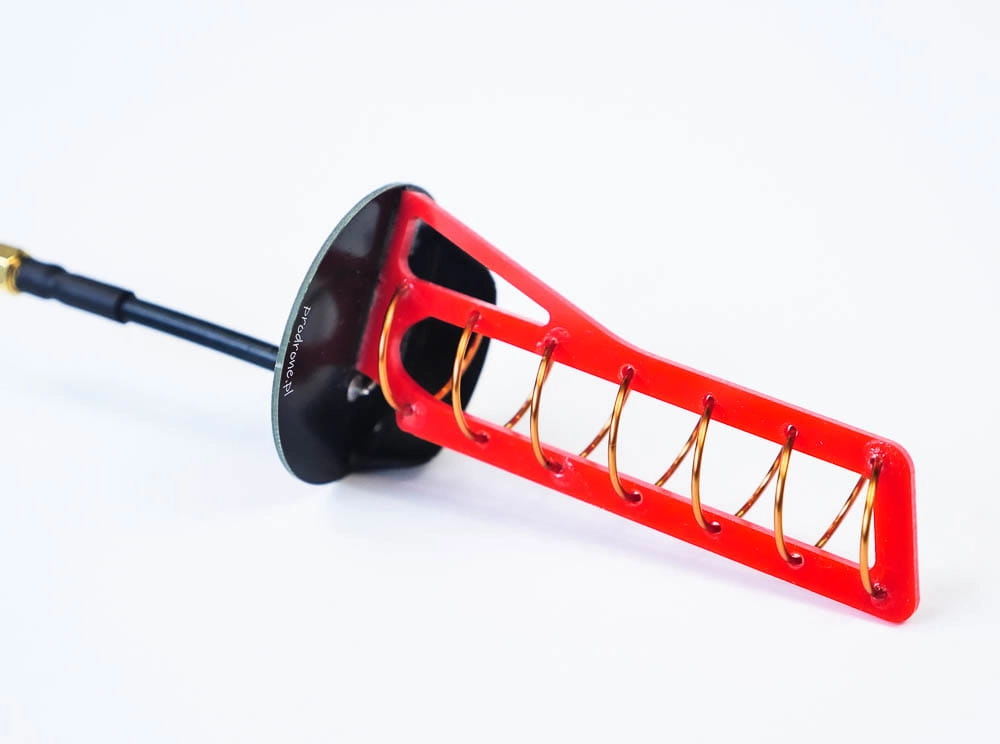

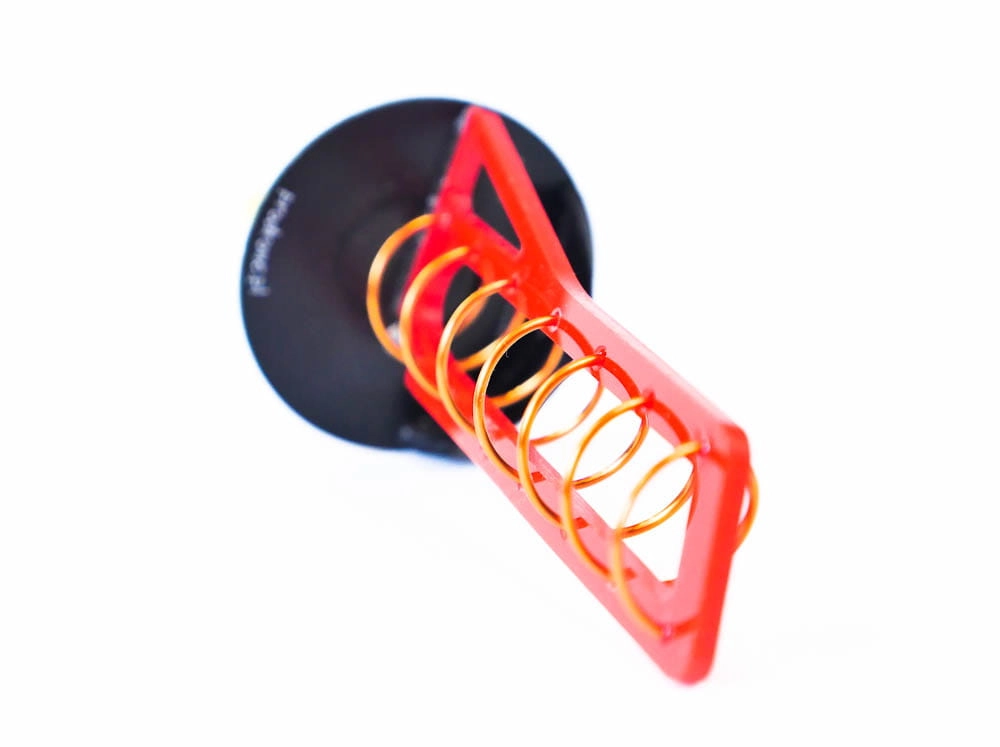

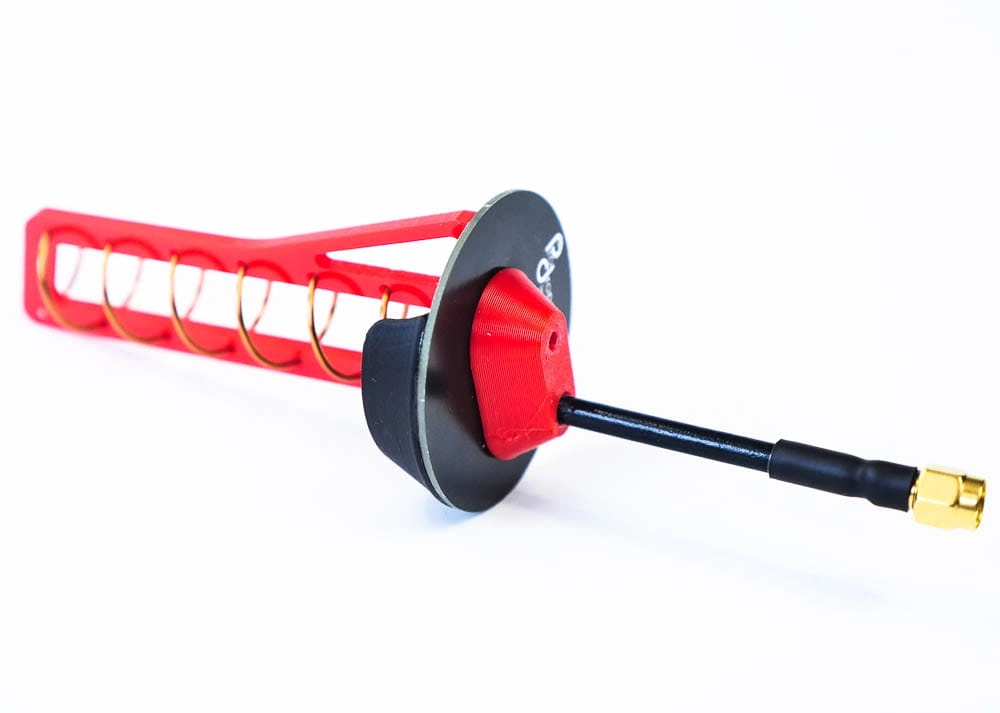

Prodrone PRO 7 Turn Helical Antenna

Get the best signal reception with our Prodrone PRO 7 Turn Helical Antenna. With a gain of 12 dBi, this antenna ensures you stay connected even at long distances.

Key Features:

• High Gain of 12 dBi: Stronger, clearer connections.
• Wide Beam Width: 50 degrees at highest gain, up to 120 degrees at shorter ranges.
• Semi-Rigid Cable: Made from high-quality RG402 cables. Bend it to the position you need and it stays there. Perfect for use on goggles without extra adapters.
• Low Signal Loss: High-quality cables mean you can fly further with a better signal.
• Thorough Testing: Each antenna is checked multiple times during production. Labels show the best frequency range. If you buy more than one, they’re tuned to the same frequency.

Specifications:

• Bandwidth: 5100-5500 MHz
• Beam Width: 50 degrees at highest gain, 120 degrees at shorter ranges
• Gain: 12 dBi
• Reflector Diameter: ~45mm
• Cable Length: ~6cm
• Antenna Conductor: 1.2mm enamel-covered pure copper
• Turns: 7
• Polarization: RHCP or LHCP
• VSWR: Lower than 1.2 at ~500mhz
• Maximum Power Input: 50W
• Connector: SMA or RP-SMA
• Weight: ~15g

Perfect for FPV and Long-Range Drone Flights

This antenna is ideal for First Person View (FPV) flying, giving you a real-time view from your drone. It's perfect for long-range flights, ensuring you maintain a strong, reliable connection over greater distances. Whether you're exploring new heights or capturing breathtaking scenery, the Prodrone PRO 7 Turn Helical Antenna provides the performance you need for all your drone adventures.

Upgrade your setup with the Prodrone PRO 7 Turn Helical Antenna for better range and reliable connections.

Remember, this antenna is specifically designed for the 5000-5400 MHz frequency range, so it will work best within this band. If you need something for 5.8 GHz, this isn’t the right choice for you.
