Pro 2.4GHz Dipole antenna 15cm

  • new
Availability: on sale
Dispatched within: 72 hours
Price: 29,00 zł 29.00
Net price: 23,58 zł
quantity szt.
You gain 2 points [?]

product unavailable

add to wish list
Rating: 0
Vendor: -
Product code: 101_20220811091103

Description

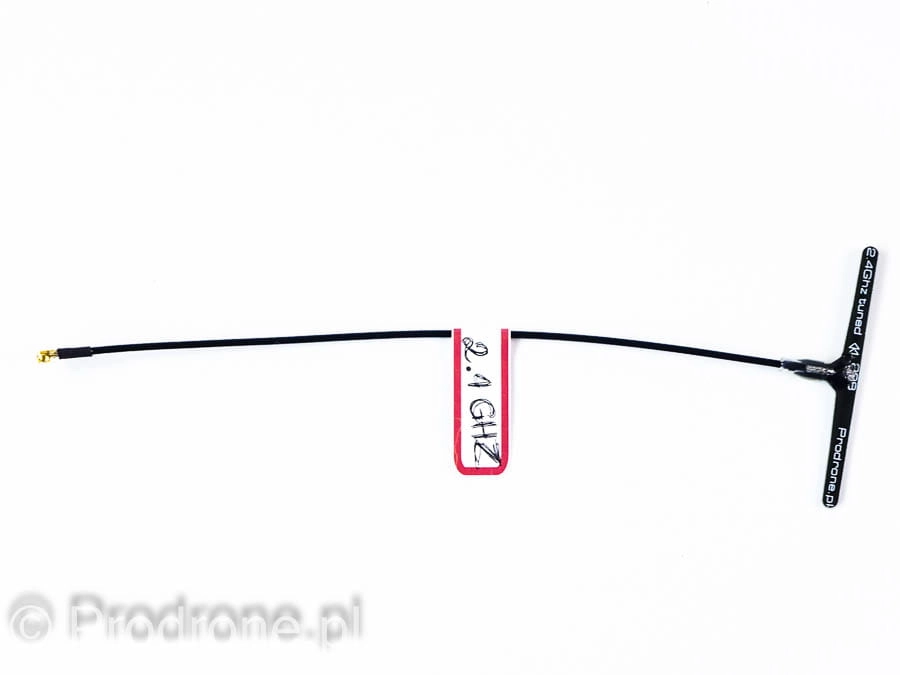

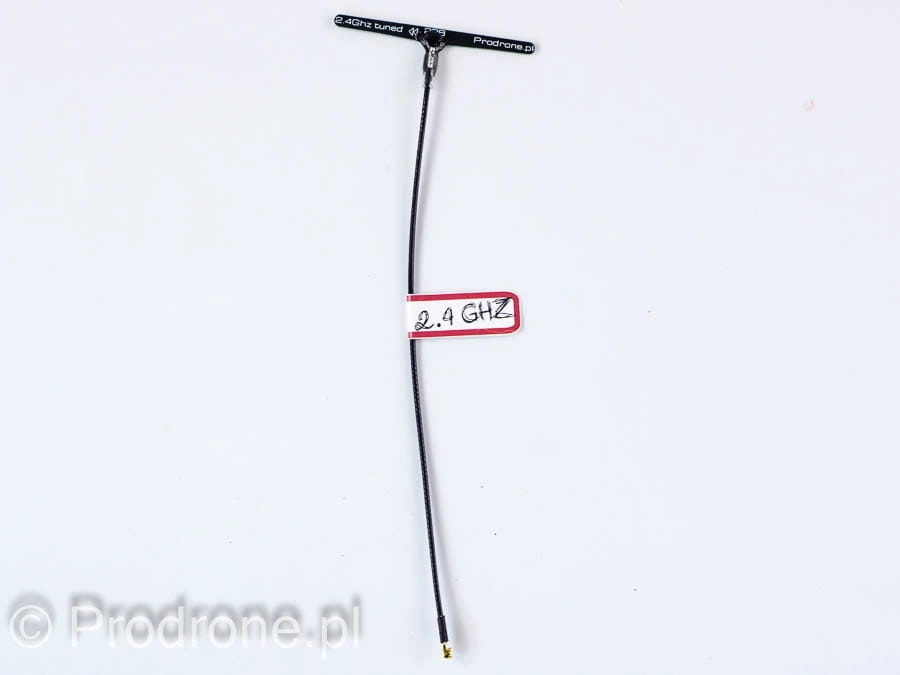

Prodrone dipole antenna tuned for 2.4Ghz frequency range with 15cm cable.

This is great upgrade of factory antenna in receiver. It will fit to all receivers equipped with u.fl connector. Gain of this antenna is about 2.2dbi
It's great upgrade to OEM receiver antenna because Prodrone dipole is tuned and matched with Moxon. They are tuned for 2.4Ghz that is used in RC applications.

Most of oem RX antennas has poor vswr and almost everyone is not tuned.

This antenna can be used with any system that works on 2.4gHz band - frsky, TBS, Radiomaster, iflight, wifi routers, expresslrs, betafpv, Orqa etc. and have connector or can be modded to use external antenna.

Specification of Prodrone Tuned dipole antenna

  • Bandwidth: 2380-2480 MHz
  • Gain: 2,2 dBi
  • Cable length: ~15cm
  • vSWR: lower than 1.3
  • Connector: u.fl
  • Weight of antenna: ~2g
