Pro 3.5 Full Diversity SET set of 3 antennas

Availability: on sale
Dispatched within: 7 working days
Price: 1 140,00 zł 1140.00
quantity szt.
You gain 114 points [?]
add to wish list
* - Field mandatory
Rating: 0
Vendor: -
Product code: 88_20170514075054

Description

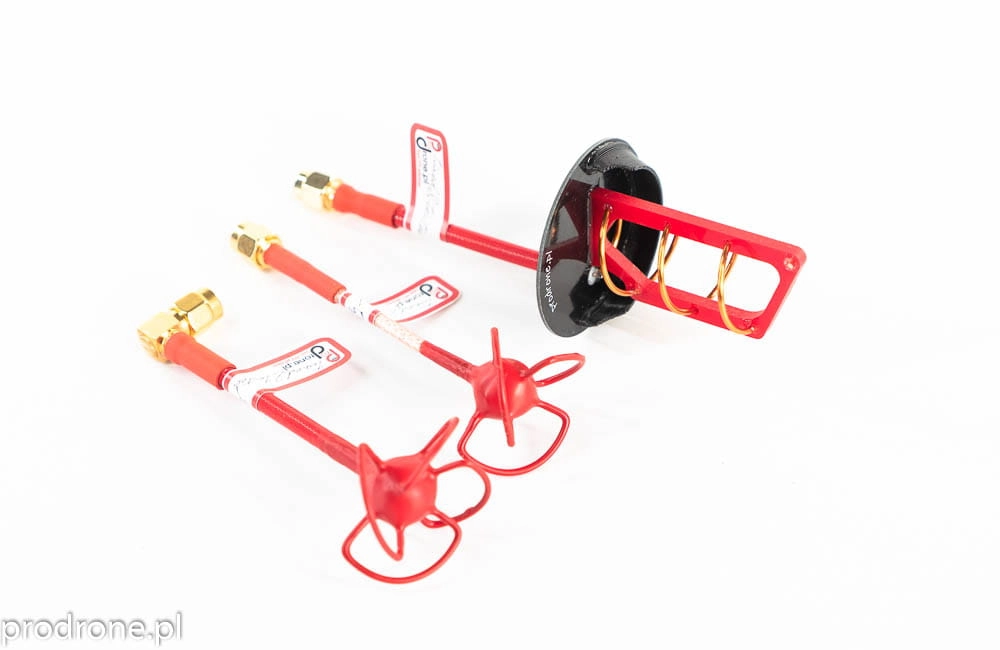

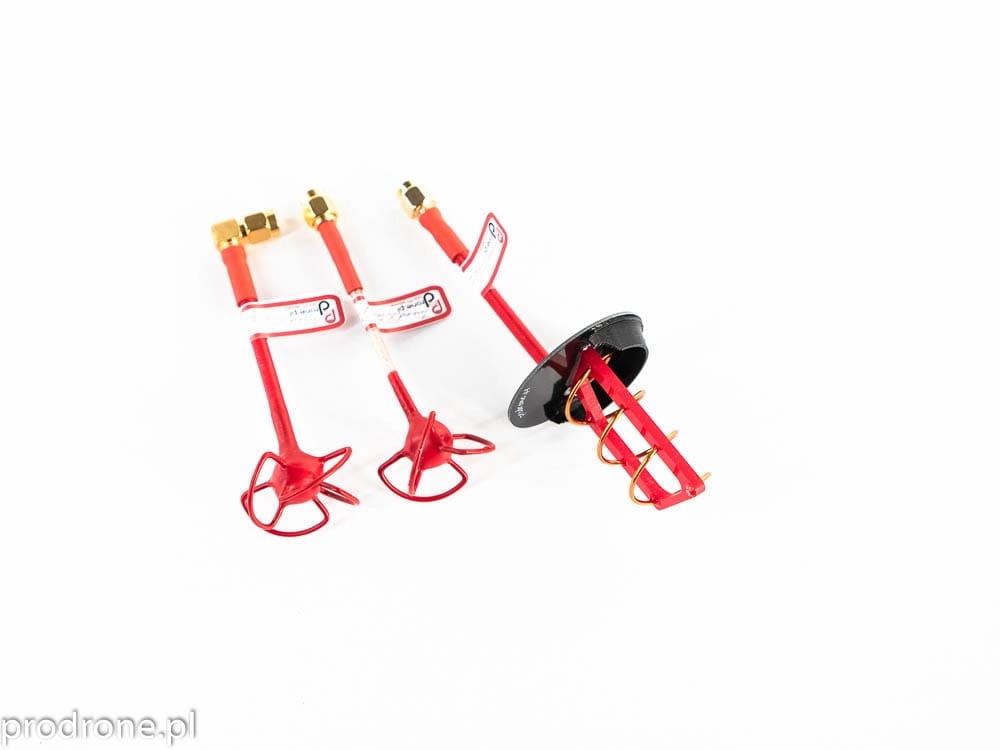

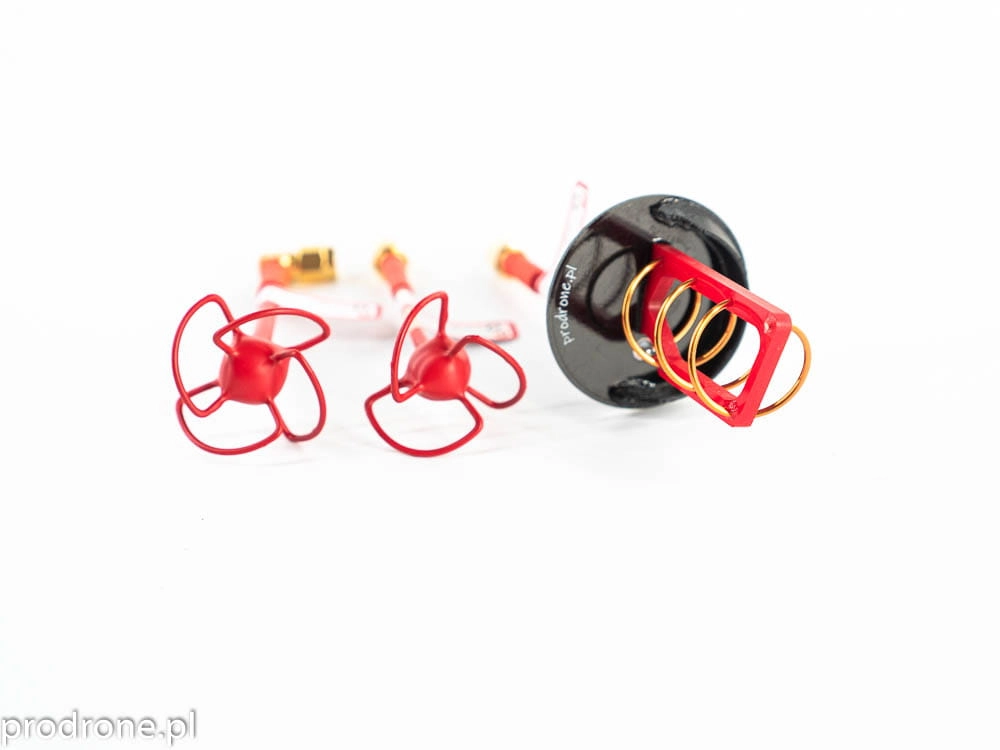

This set includes:

- tuned 3.5 turn helical RX antenna - RG402 semirigid cable
- tuned 3 lobe cloverleaf TX antenna - RG316D cable
- tuned 4 lobe cloverleaf (skew planar) RX antenna - RG402 semirigid cable



Prodrone Pro 3.5 turn Helical antenna.

Gain of Helical antenna is ~8dBi and this is real gain. Prodrone PRO 3.5 Turn Helical has very wide beam - 60 degrees. This is real beam width at highest gain.

At shorter ranges beam width can archive 120 degrees.

All   PRO Helical antenna series have a semi-rigid cable. We are using high   quality RG402 cables (mainly made by Belden or Suhner). We are not   using cheap chinese cables.

Semi-Rigid cable means that you can bend it and it will stay in that position. You can use this antennas on gogles.

This means that antenna can be pointed in any direction and there is no need for using any adapters.

Cables that we are using have very low attenuation, so you'll be able to fly even further.

Specification of 3.5 turn Helical antenna:

  • Bandwidth: 5630-5980 MHz
  • Beam width: 60 degrees - highest gain, 120 degrees - with lower gain
  • Gain: 8,8 dBi
  • Reflector diameter: ~45mm
  • Cable length: ~5cm
  • Antenna conductor: 1mm silver covered pure copper
  • Turns: 3.5
  • vSWR: lower than 1.3
  • Maximum power input: 50W
  • Weight of antenna: ~16g



Cloverleaf antennas (TX and RX).



3 lobe (and 4 lobe) cloverleaf TX antenna are using high quality RG316D and RG402 cable.

RG316D has double shielding and this only RG316 cable that is rated up to 6Ghz. Note that RG316D  is not regular RG316 cable like in other antennas.
RG316D   cable on TX antenna is better choice because this cable is more   flexible than RG402. RG316D can be bend in any direction. It can   remember position when you heat cable with hair dryer.
On RX antenna (4 lobe) is high   quality RG402 cables (mainly made by Belden or Suhner).
Both cloverleafs are matched with helical antenna.



Specification of 3 lobe (and 4 lobe) cloverleaf antenna:

  • Bandwidth: 5640-5950 MHz
  • Omnidirectional antenna.
  • Gain: ~2 dBi
  • Cable length: ~6cm
  • Antenna conductor: 1mm silver covered pure copper
  • vSWR: lower than 1.3
  • Weight of antenna: ~6g
