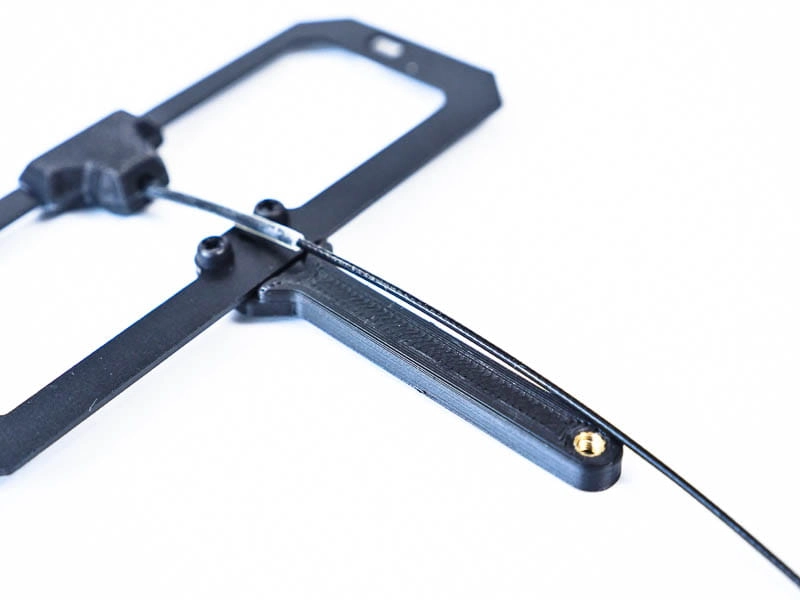

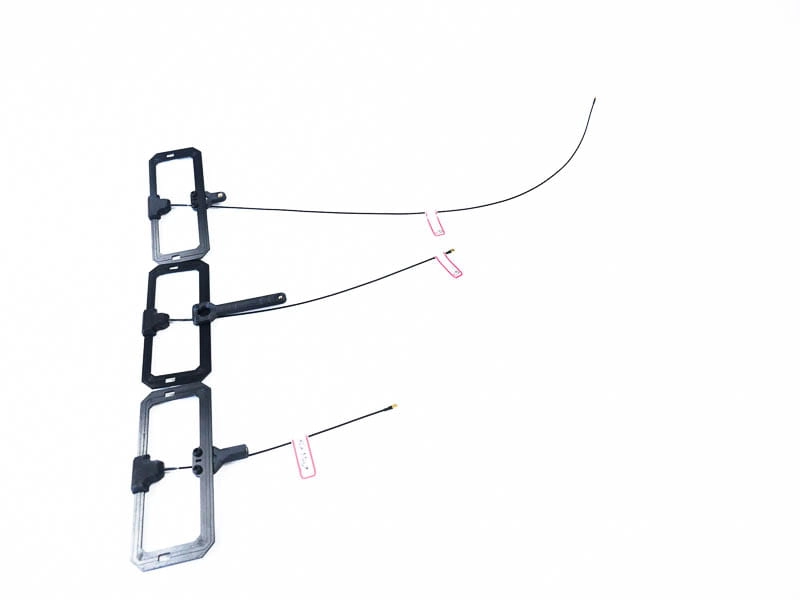

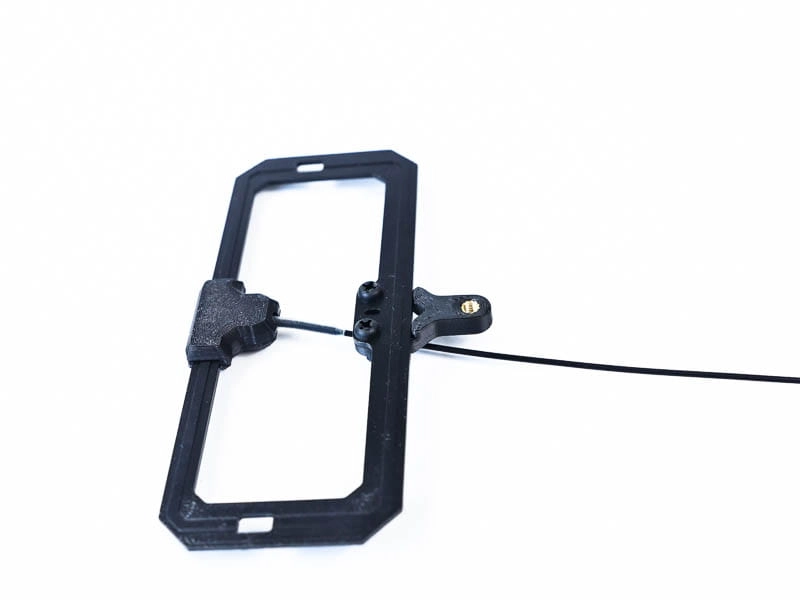

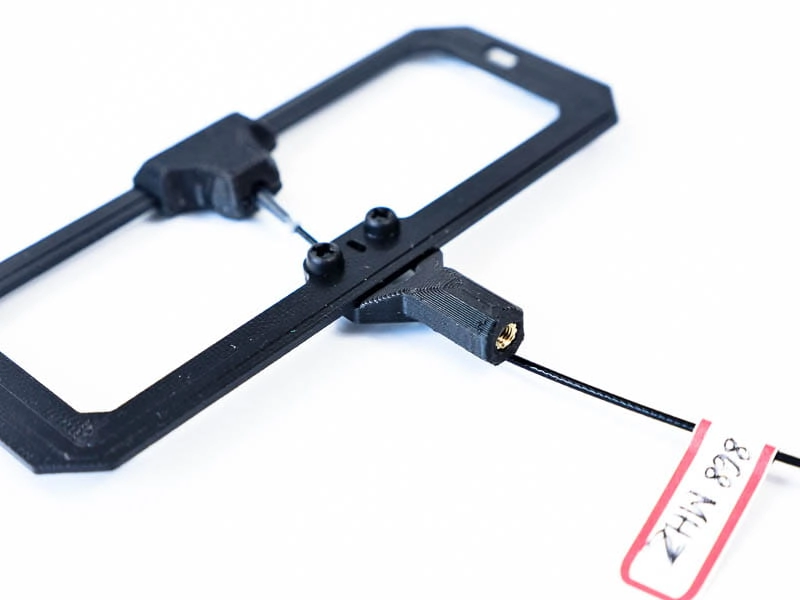

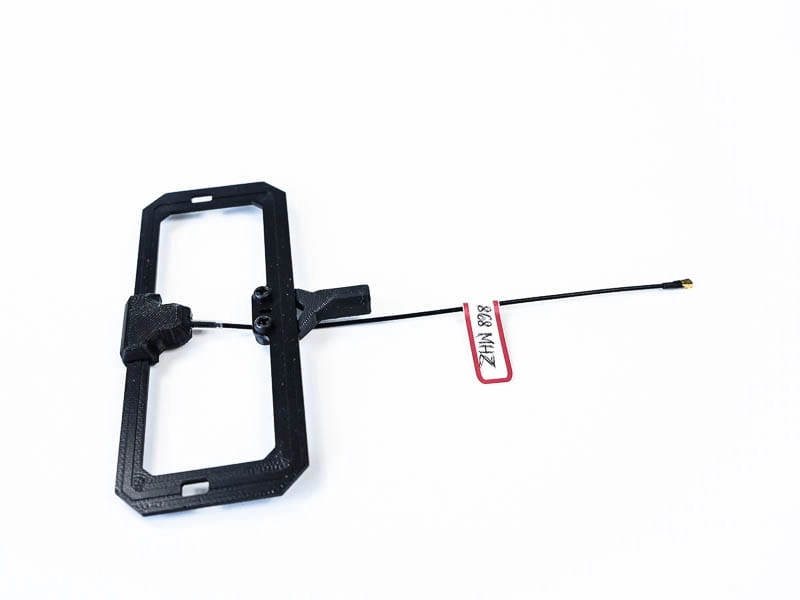

Introducing the MOX_Rv2 Antenna: Enhanced Performance and Durability

Introducing the MOX_Rv2, an upgraded version of the Mox_R antenna designed for exceptional performance and durability. Unlike its predecessor with a printed frame, the MOX_Rv2 offers improved specifications and a more robust design.

Key Features:

High Gain of 5.5 dBi: Ensures stronger and clearer signal transmission.
Frequency Options: Available in 868, 900, or 915 MHz, compatible with Crossfire, FRSKY, ExpressLRS, LORA, and LoraWAN transmitters.
Parasitic Array Design: Functions like a 2-element yagi antenna, optimized for extended range and reliability.
Direct U.FL Connector: Includes a U.FL connector for direct connection to RX or TX modules, eliminating the need for additional pigtails and adapters.
Signal Integrity: Direct connection minimizes signal loss and avoids antenna mismatch typically introduced by additional connections.
Wide Beamwidth: Offers over 250 degrees when used vertically, providing excellent coverage and versatility.
Compact and Portable: Small size makes it ideal for field use and easy transport.
Outstanding Front-to-Back Ratio: Achieves approximately 30dB, ensuring strong signal reception with minimal interference.
Broadband Performance: Operates effectively across the entire frequency band, minimizing the need for additional matching devices.
Low vSWR: Maintains a near-perfect 1:1 Standing Wave Ratio (SWR), maximizing signal efficiency.

Specifications:

Bandwidth: 868
Beamwidth: Over 250 degrees
Gain: 5.5 dBi
Antenna Length: Approximately 15cm or 25 or 50cm (please put note about cable length)
Maximum Power Input: 50W
Weight: Approximately 22g

Durable and Tuned for Excellence

Each MOX_Rv2 antenna undergoes meticulous tuning for optimal performance on your chosen frequency before shipping. It is compatible with a wide range of systems operating on 868, 900, or 915 MHz bands, such as FrSky, TBS, Radiomaster, iFlight, LoraWAN routers, ExpressLRS, Betafpv, and Orqa. Whether used with its connector or modified for an external antenna setup, the MOX_Rv2 delivers reliable connectivity and extended range capabilities without the signal loss and mismatch issues associated with additional adapters or pigtails.
