Pro U.FL set 5.8Ghz

Availability: on sale
Dispatched within: 7 working days
Price: 69,00 zł 69.00
quantity szt.
You gain 6 points [?]
add to wish list
Rating: 0
Vendor: -
Product code: 94_20170514080157

Description

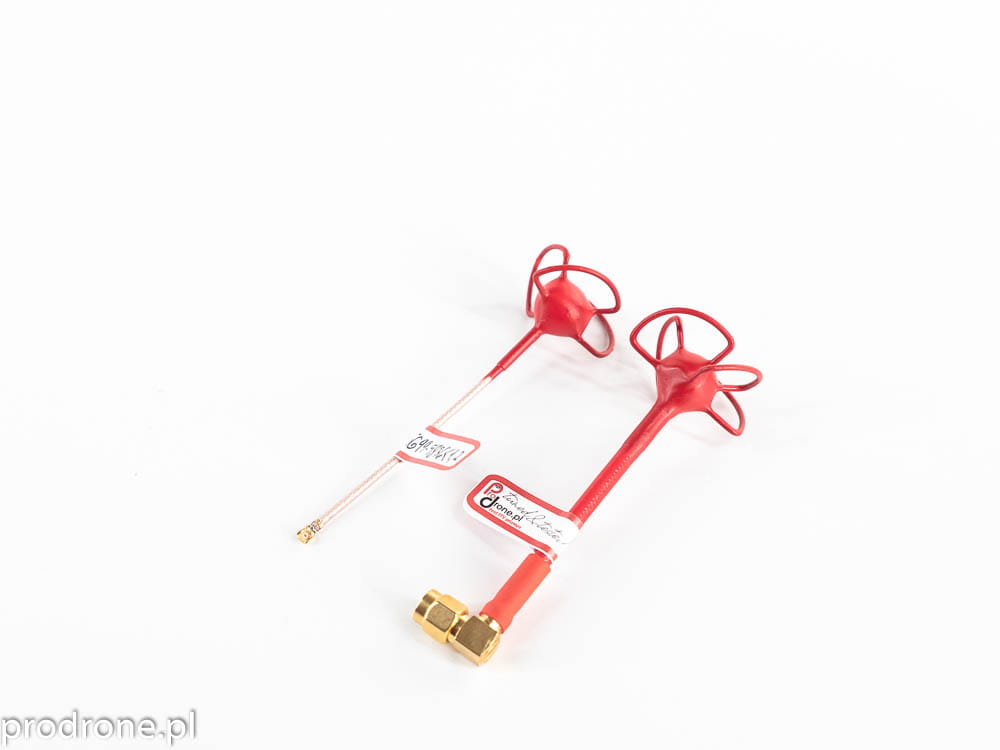

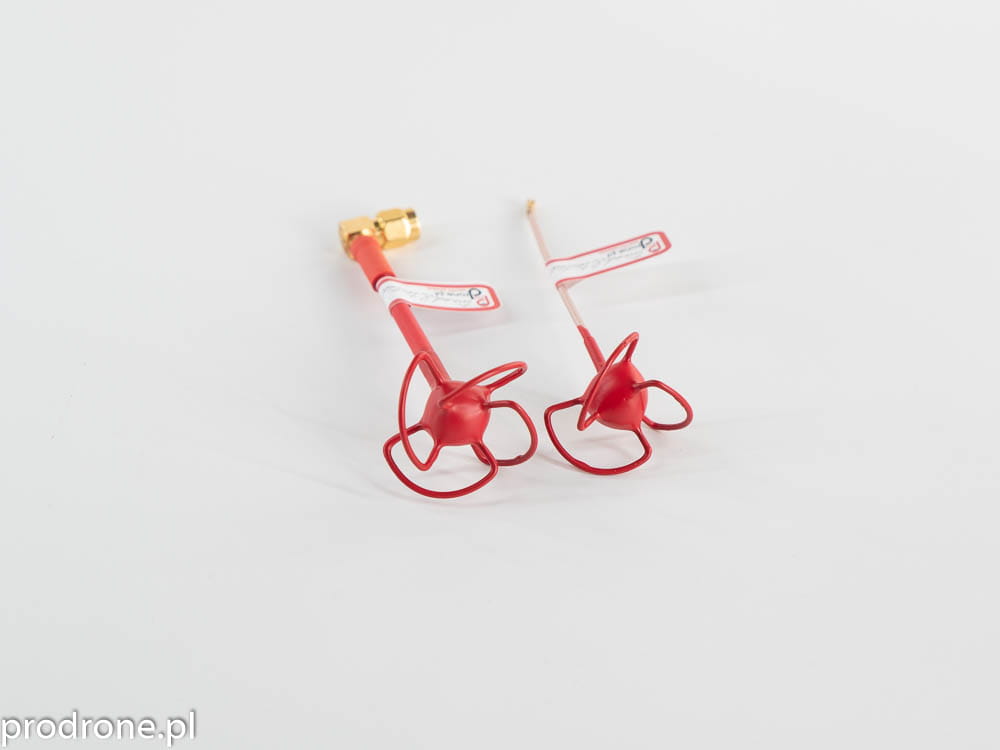

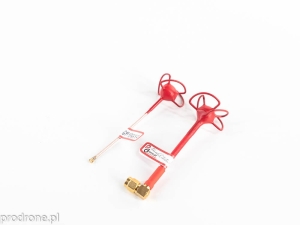

This set includes
- 3 lobe cloverleaf TX antenna with circular polarization with U.FL connector
- 4 lobe cloverleaf  RX antenna with circular polarization made on RG402 cable

This is tuned and matched set of two antennas.
Buying this set you will have guarantee that both antennas will work with best performance. They are tuned to match both antennas vswr to be lower than 1.3 on at least few channels.

Why to choose Prodrone Antennas ?

  1. Quality materials
  2. Quality soldering
  3. Each antenna is checked on spectrum analyser.

Why checking antenna is so important ?

Manufacturing antennas for 5.8Ghz need very tight tolerances. Even small change of dimensions, geometry (even so small ad 0.1mm) will change their characteristics (resonation point – centre frequency).
Buying our antennas you will know how use them properly – on which frequency they will have best performance.

4 lobe cloverleaf RX antenna are using high quality cables with low attentuation.

On RX antenna (4 lobe) is high quality RG402 cables (mainly made by Belden or Suhner).



Specification of 4 lobe cloverleaf antenna:

  • Bandwidth: 5640-5950 MHz
  • Omnidirectional antenna.
  • Gain: ~2 dBi
  • Cable length: ~6cm
  • Antenna conductor: 1mm silver covered pure copper
  • vSWR: lower than 1.3
  • Weight of antenna: ~6g

3 lobe cloverleaf

This is great replacement of stock antenna in micro quads that has u.fl ( IPX) connector. It can be also used in any transmitter that has such connector.

Cloverleaf will increase video range (compared to stock antenna). It will also improve video link quality- reduced interference. This is omni directional antenna. That means that will be coverage in full 360 degrees vertically and horizontally.

Specification of Prodrone ufl Cloverleaf

  • Bandwidth: 5640-5950 MHz
  • Omni directional antenna
  • Gain: 1,1 dBi
  • Cable length: ~5cm
  • Antenna conductor: 1mm silver covered pure copper
  • vSWR: lower than 1.3
  • Maximum power input: 50W
  • Connector: u.fl ( IPX)
  • Weight of antenna: ~1,5g
