ProMox_4 antenna 1-1.3Ghz 5.5dbi

Availability: on sale
Dispatched within: 10 working days
Price: 55,00 zł 55.00
Net price: 55,00 zł
quantity szt.
You gain 5 points [?]

product unavailable

add to wish list
* - Field mandatory
Rating: 0
Vendor: -
Product code: 109_20230317114452

Description

Our latest a best moxon antenna.
More durable and better parameters.

Gain of Moxon antenna  is about 5.5dBi and this is real gain. This antenna is tuned for frequencies 1Ghz to 1.3Gghz. You should choose your channel.

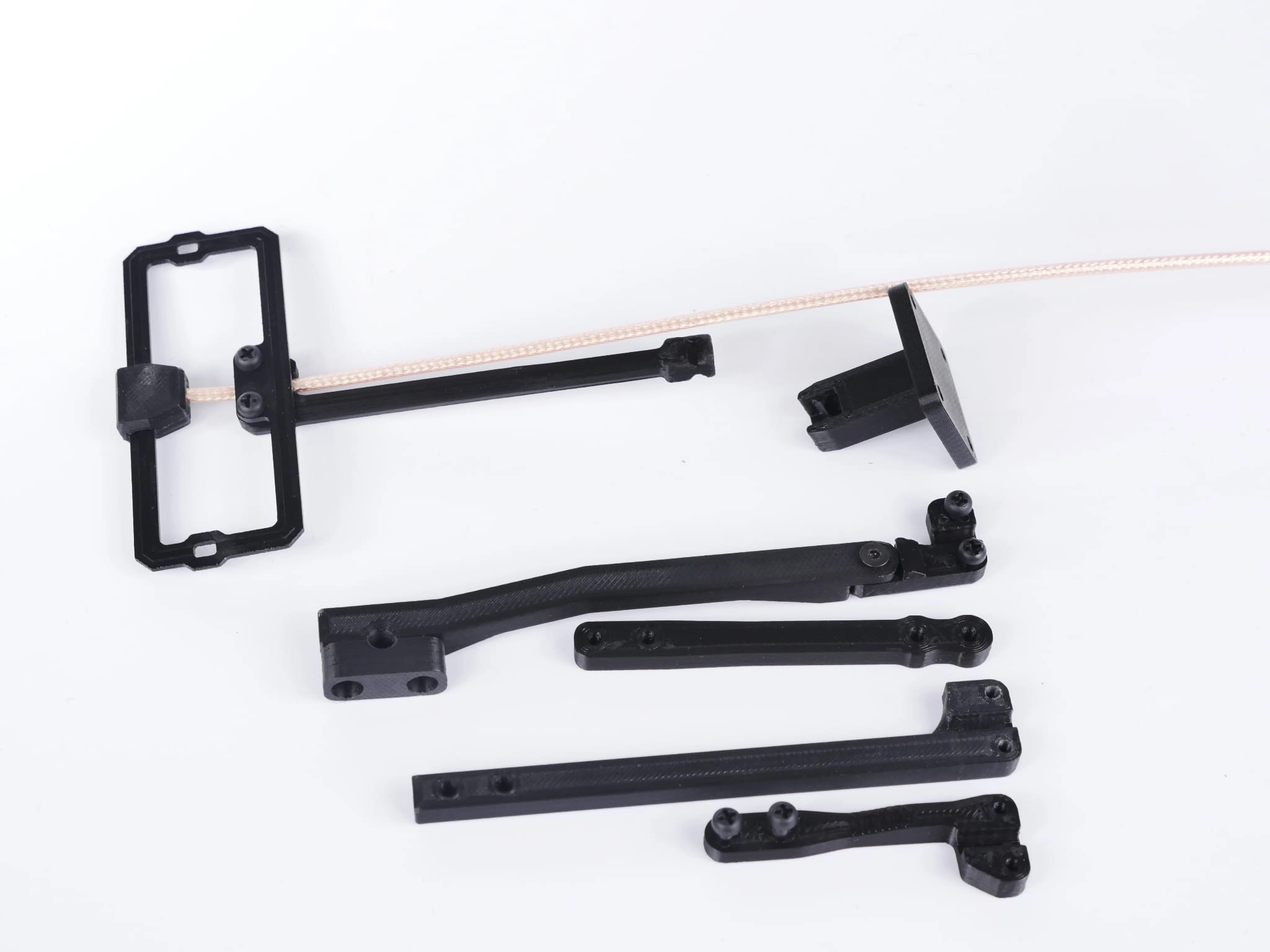

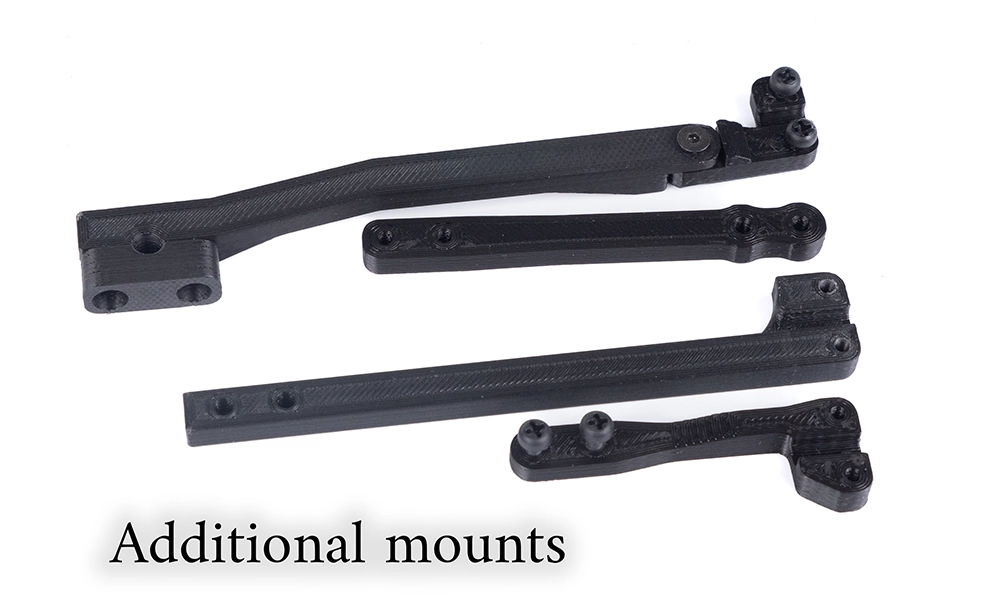

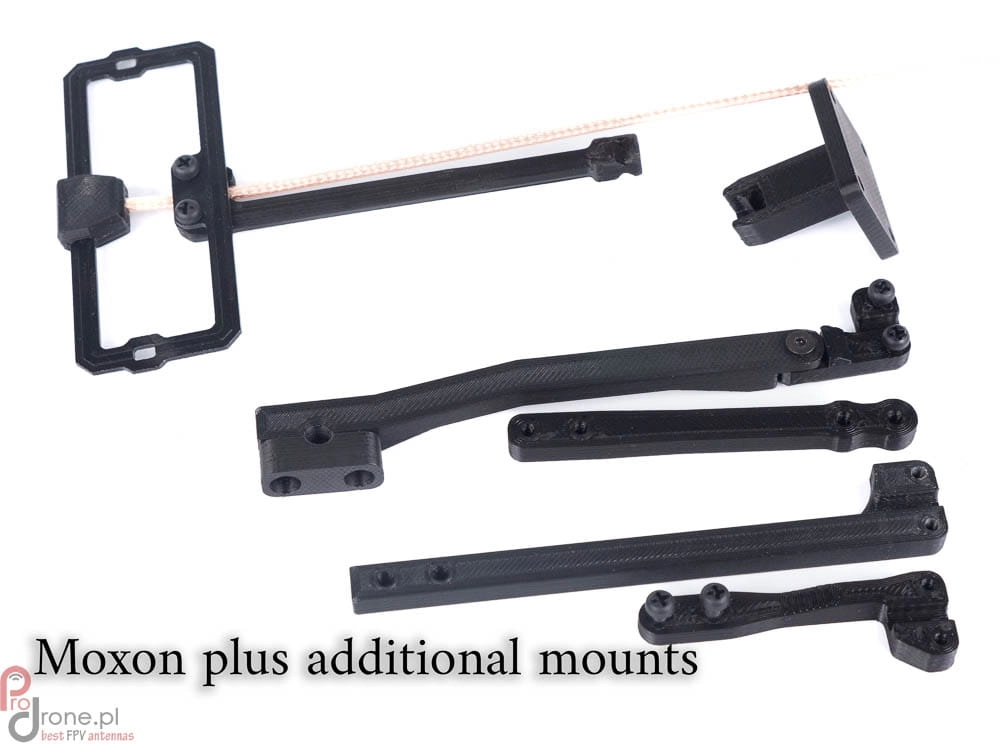

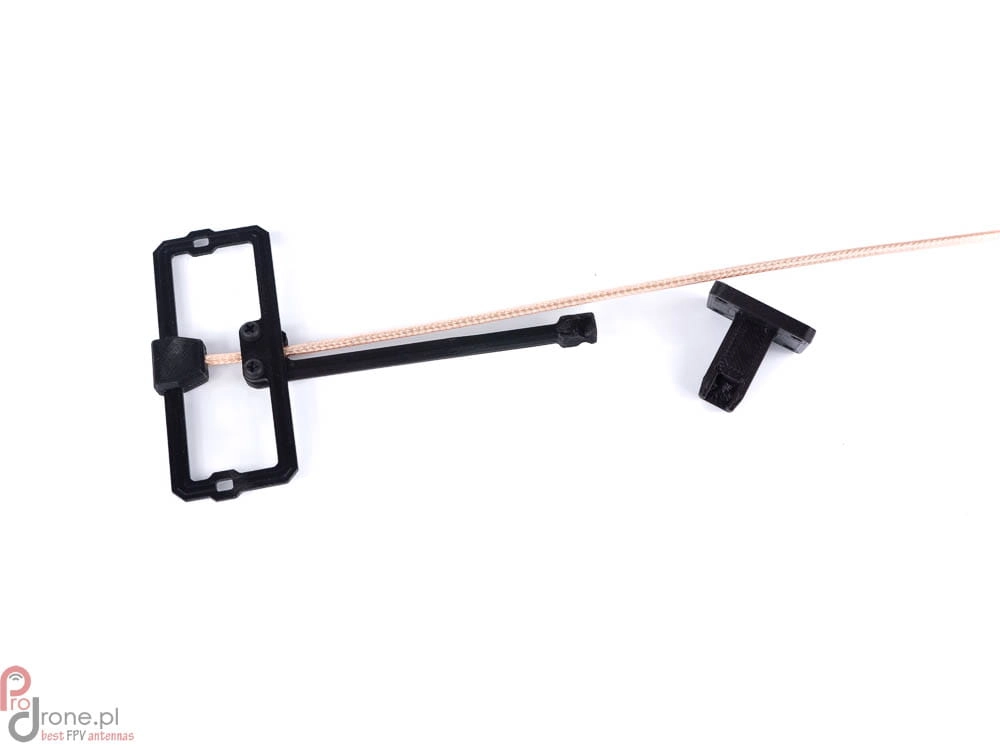

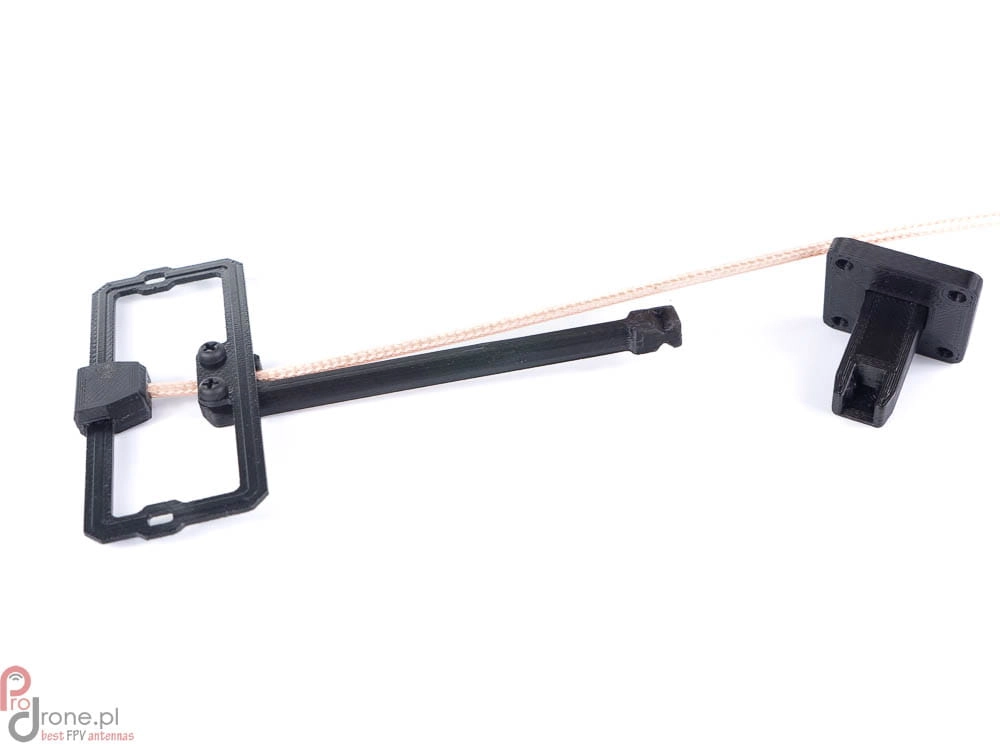

This is complete antenna with quick  release system, which we developed to mounting to most transmitters or on  tracker.

Moxon antenna can be visualized as a 2-element yagi with the element tips bent towards one another.

This is great upgrade to typical rubberduckies equipped with transmitters.

Moxon antenna has high gain, has very good characteristics and is "almost" omnidirectional. It has null only on back of antenna.





The Moxon antenna offers three  advantages over a typical two element Yagi:

  1. Small in physical size - which makes an excellent field antenna.
  2. Outstanding front to back ratio. The Moxon's front-to-back ratio models is about 30dB
  3. The Moxon is a 50ohm antenna, generating a near perfect 1:1swr without requiring any additional matching devices. It is also quite broadbanded allowing for effective full band coverage.



Specification of Prodrone Moxon antenna

  • Bandwidth: 1-1.3Ghz (choose your channel)
  • Beam width: over 180 degrees
  • Gain: 5,5 dBi

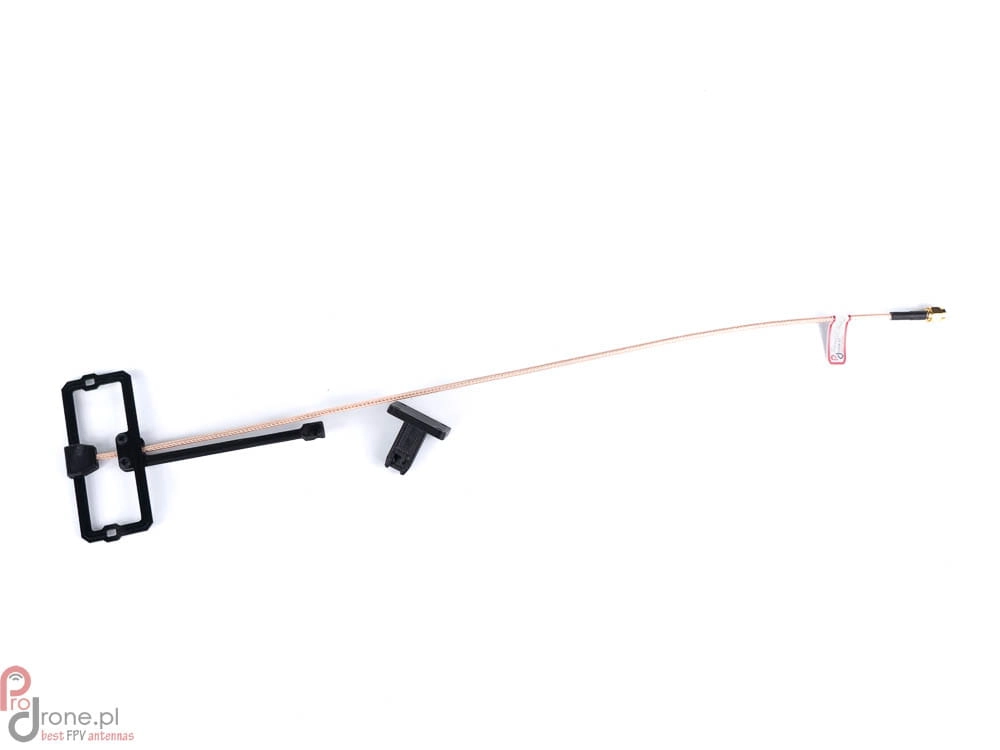

  • Cable length: ~28cm(+-3cm)
  • Antenna conductor: 1mm silver covered pure copper
  • vSWR: lower than 1.3
  • Maximum power input: 50W
  • Weight of antenna: ~11g
