ProMox_4 antenna 1200Mhz 5.5dbi

discount
new

Availability: on sale

Dispatched within: 72 hours

Gross price: 50,05 zł

incl. 23.00% TAX, excl. shipping costs

Regular price: ~~65,00 zł~~

50.05

Lowest price since added to the store: 55,25 zł

Net price: 40,69 zł

excl. 23.00% TAX, excl. shipping costs

Regular price: ~~52,85 zł~~

Lowest price since added to the store: 44,92 zł

* Connector:

* Frequency:

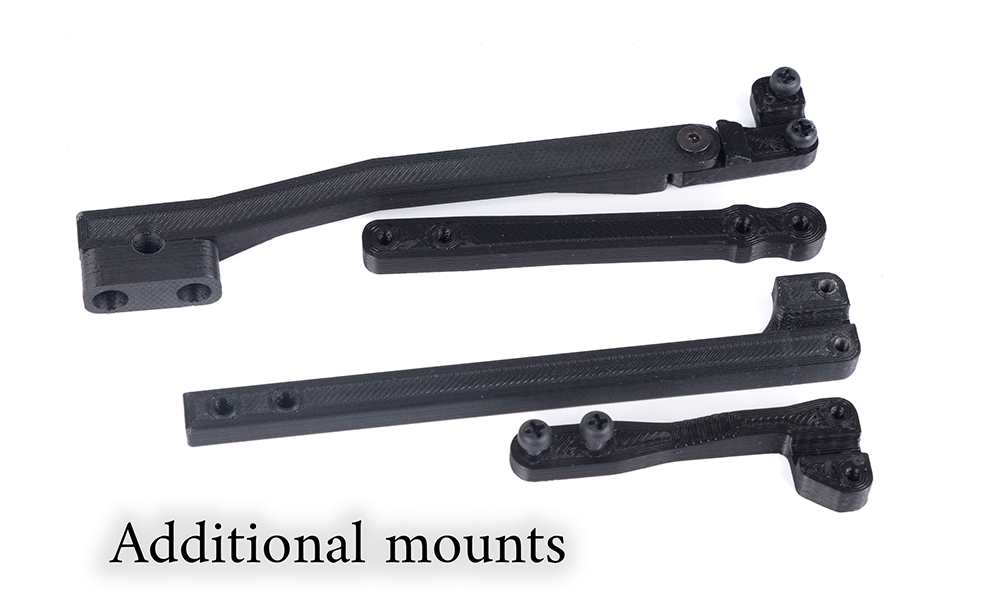

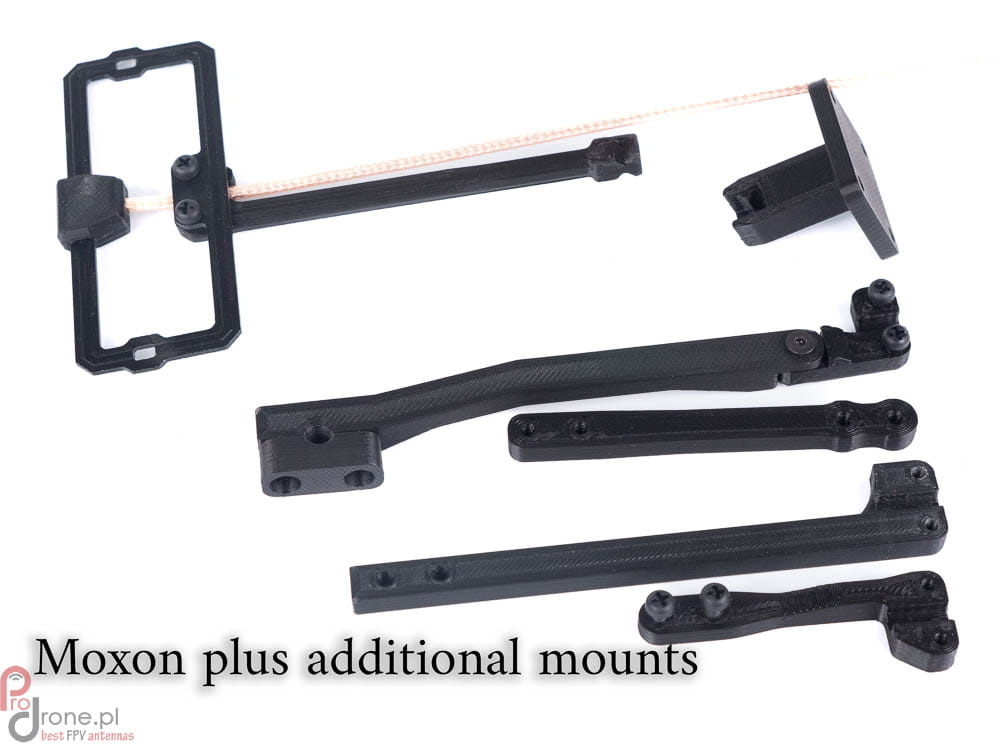

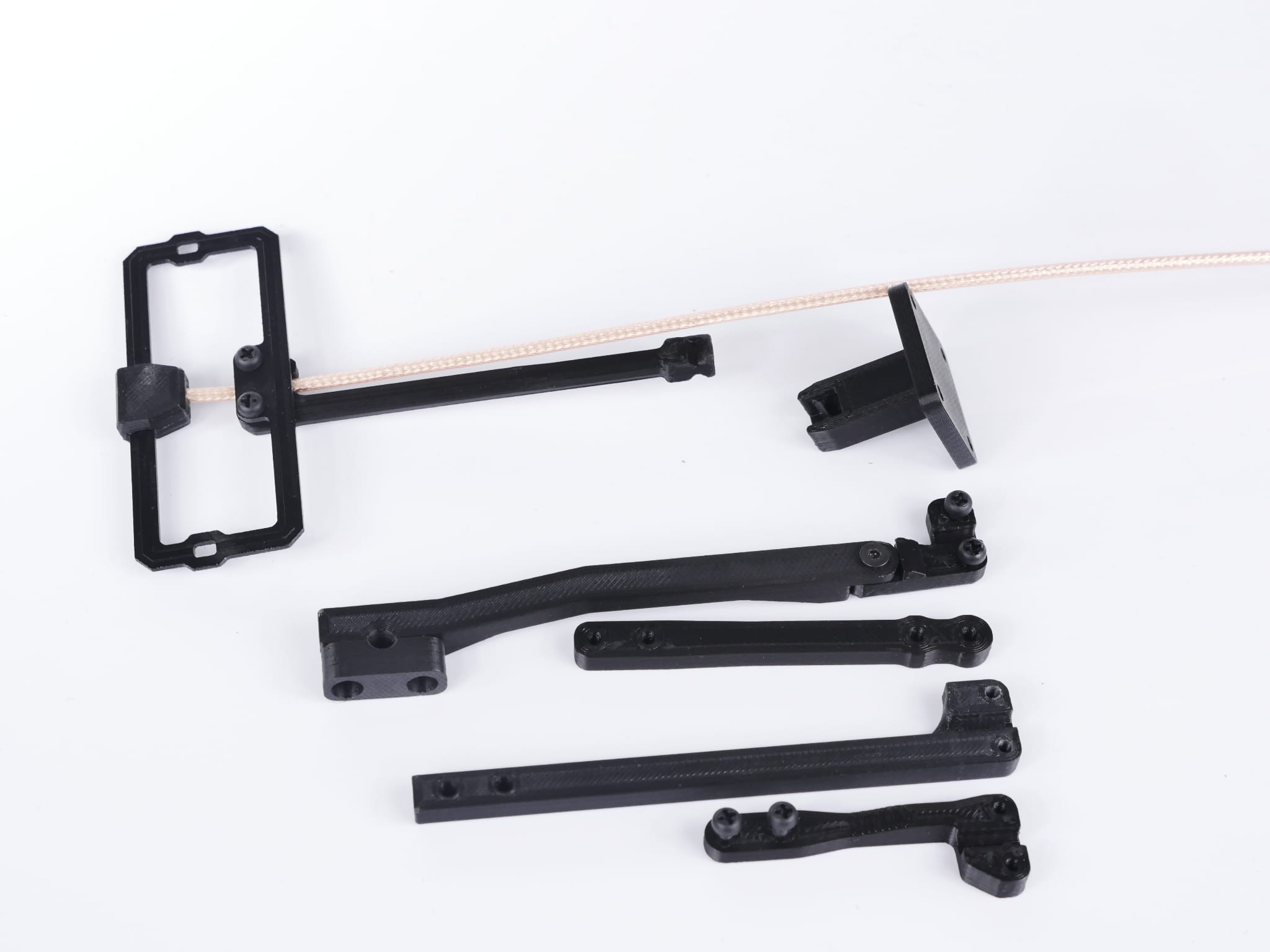

Additional mounts:

quantity szt.

You gain 3 points []

product unavailable

add to wish list

* - Field mandatory

Rating:

Vendor: Prodrone.pl

Product code: 109_20241202101937

ask about product
recommend to a friend
add your review

Description

Our latest a best moxon antenna.
More durable and better parameters.
This is tuned version directly for 1200Mhz !

Gain of Moxon antenna is about 5.5dBi and this is real gain. This antenna is tuned for frequencies 1Ghz to 1.3Gghz. You should choose your channel.

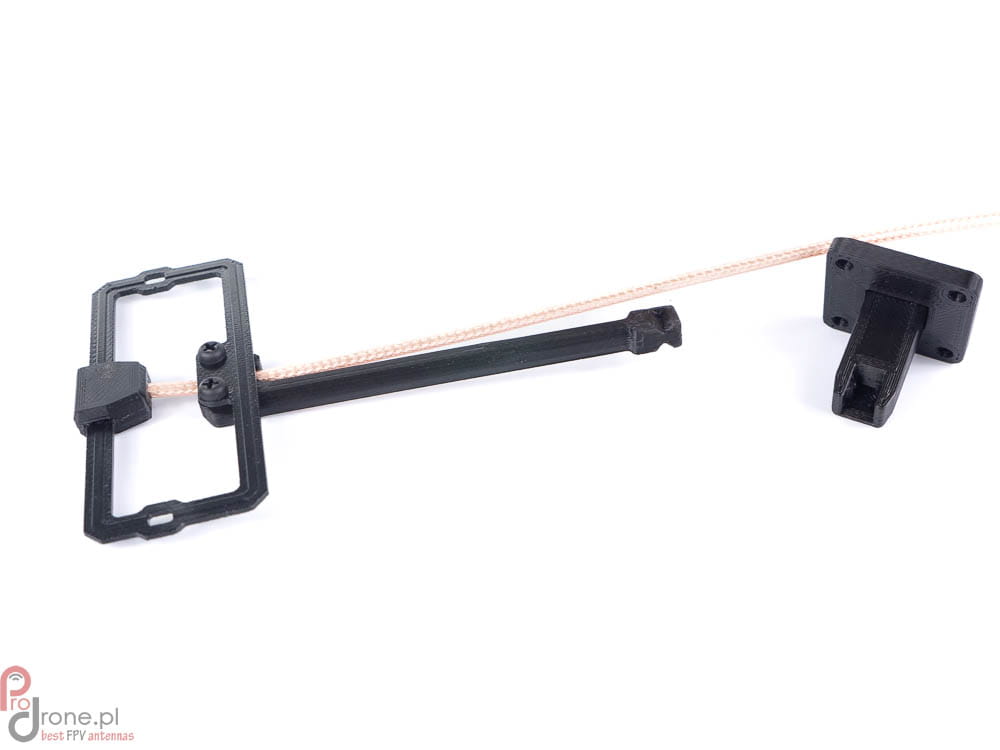

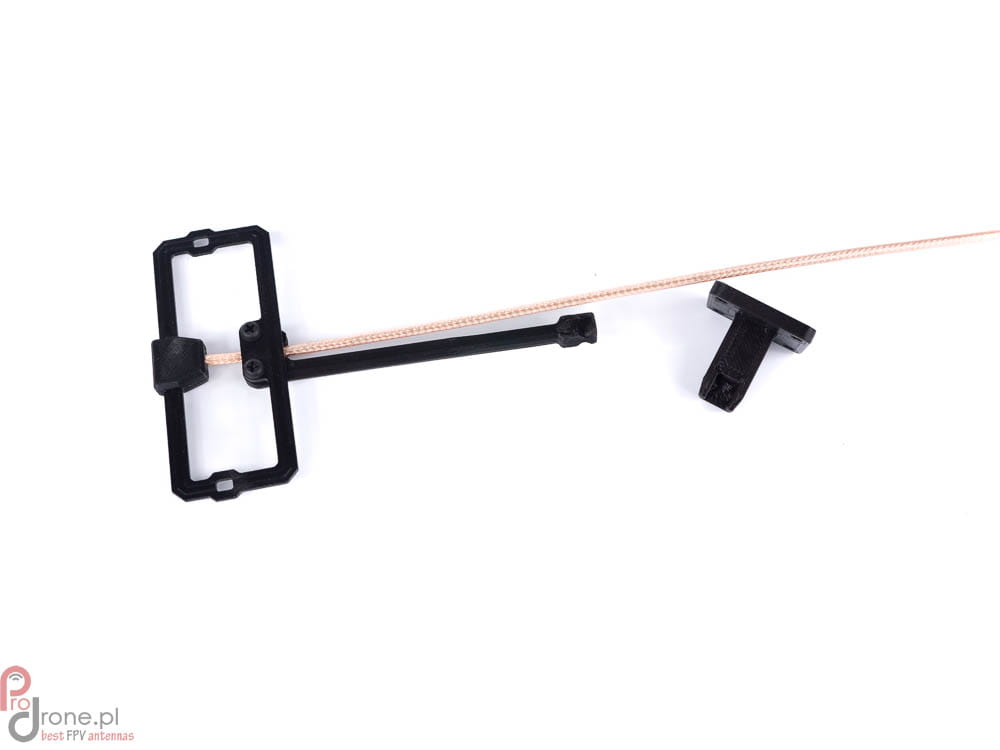

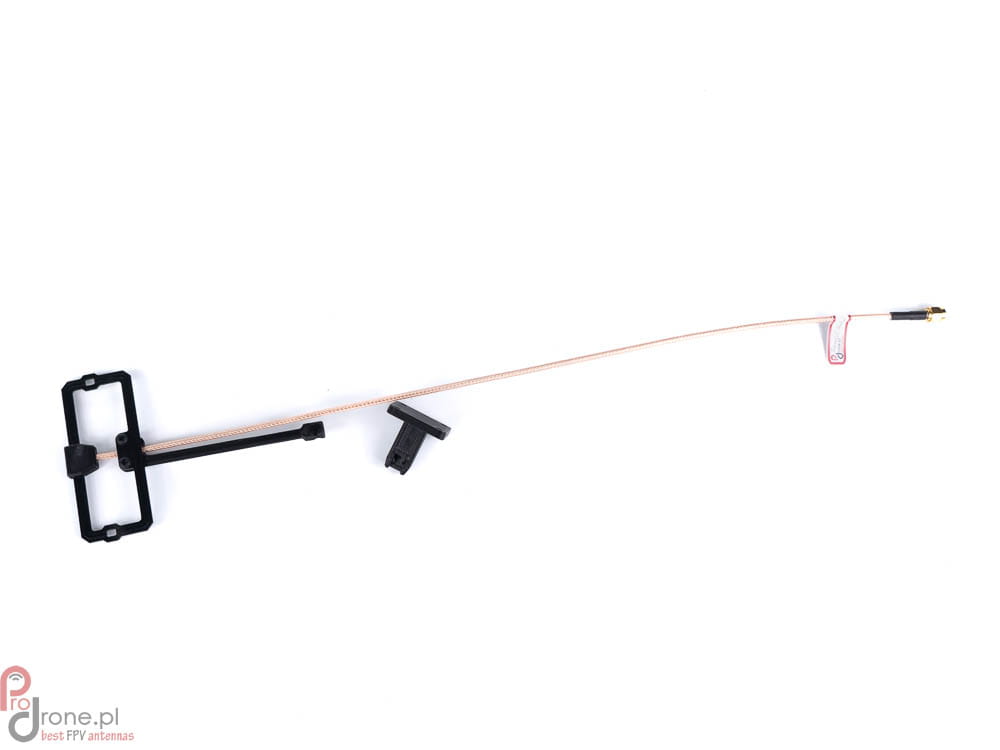

This is complete antenna with quick release system, which we developed to mounting to most transmitters or on tracker.

Moxon antenna can be visualized as a 2-element yagi with the element tips bent towards one another.

This is great upgrade to typical rubberduckies equipped with transmitters.

Moxon antenna has high gain, has very good characteristics and is "almost" omnidirectional. It has null only on back of antenna.

The Moxon antenna offers three advantages over a typical two element Yagi:

Small in physical size - which makes an excellent field antenna.
Outstanding front to back ratio. The Moxon's front-to-back ratio models is about 30dB
The Moxon is a 50ohm antenna, generating a near perfect 1:1swr without requiring any additional matching devices. It is also quite broadbanded allowing for effective full band coverage.

Specification of Prodrone Moxon antenna

Bandwidth: 1200mhz
Beam width: over 180 degrees
Gain: 5,5 dBi
Cable length: ~28cm(+-3cm)
Antenna conductor: 1mm silver covered pure copper
vSWR: lower than 1.2
Maximum power input: 50W
Weight of antenna: ~11g
