ProMox_v2

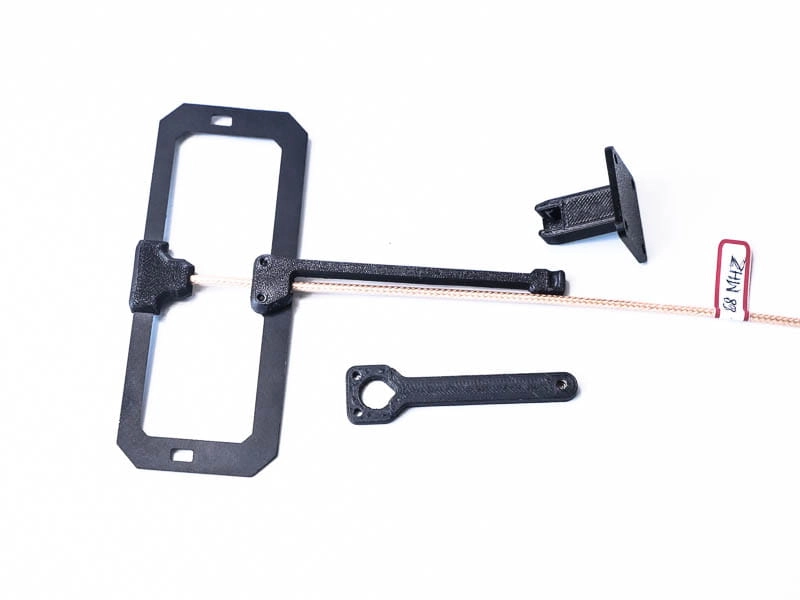

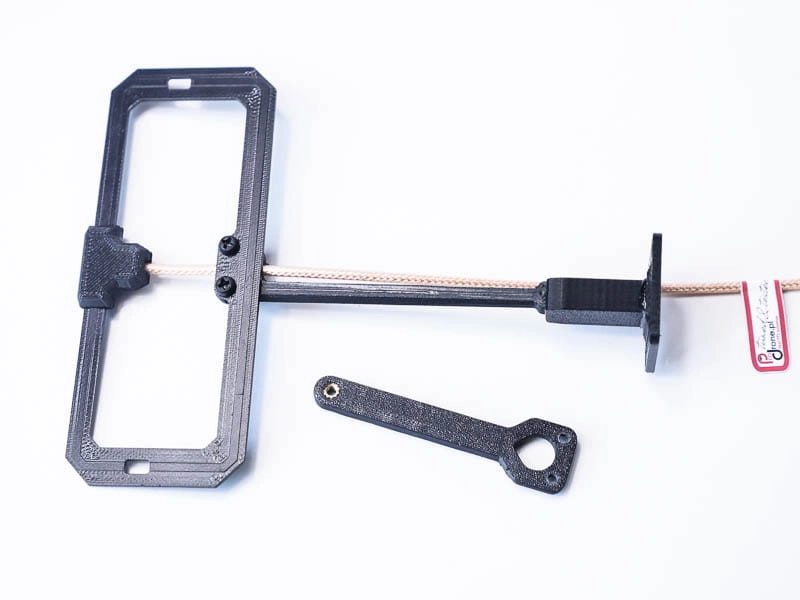

Meet the MOX_Rv2 Antenna: Better Performance and Durability

The MOX_Rv2 is an improved version of the Moxon antenna, designed to give you exceptional performance and durability. It’s built tougher and works better than ever before.

Key Features:

• High Gain: With 5.5 dBi, it ensures a strong and clear signal.
• Frequency Options: Works with 868, 900, or 915 MHz, perfect for Crossfire, FRSKY, ExpressLRS, LORA, and LoraWAN transmitters.
• Parasitic Array Design: Acts like a 2-element yagi antenna for better range and reliability.
• Great Signal Integrity: Direct connection means less signal loss and no mismatch problems.
• Wide Beamwidth: Offers over 250 degrees vertically, providing excellent coverage.
• Compact and Portable: Small size makes it easy to carry around.
• Strong Front-to-Back Ratio: About 30dB, giving you strong reception with minimal interference.
• Broadband Performance: Works well across the whole frequency band without extra matching devices.
• Low vSWR: Near-perfect 1:1 Standing Wave Ratio (SWR) for maximum signal efficiency.

Specifications:

• Bandwidth: 868 MHz
• Beamwidth: Over 250 degrees
• Gain: 5.5 dBi
• Antenna cable Length: 29cm
• Maximum Power Input: 50W
• Connectors: SMA or RP-SMA
• Weight: About 22g

Built for Excellence

Every MOX_Rv2 antenna is carefully tuned for the best performance on your chosen frequency before shipping. It works with many systems on the 868, 900, or 915 MHz bands, including FrSky, TBS, Radiomaster, iFlight, LoraWAN routers, ExpressLRS, Betafpv, and Orqa. Whether you use the built-in connector or modify it for an external setup, the MOX_Rv2 gives you reliable connectivity and extended range without the signal loss and mismatch issues caused by extra adapters or pigtails.
