XS_Crossair 5.8GHz 10dbi stub antenna

Availability: on sale

Dispatched within: 10 working days

Gross price: 85,00 zł

excl. shipping costs

Regular price:

85.00

The lowest price during 30 days prior to the reduction:

Net price: 85,00 zł

excl. shipping costs

Regular price:

The lowest price during 30 days prior to the reduction:

* Polarization:

* Connector:

quantity szt.

You gain 5 points []

product unavailable

add to wish list

* - Field mandatory

Rating:

Vendor: -

Product code: 108_20240517133240

ask about product
recommend to a friend
add your review

Description

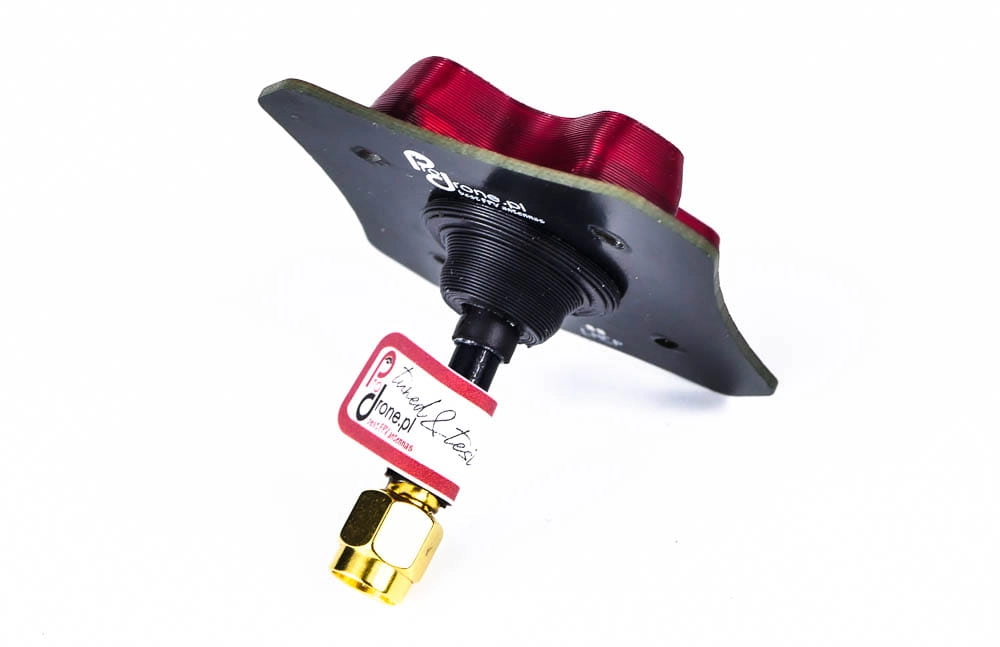

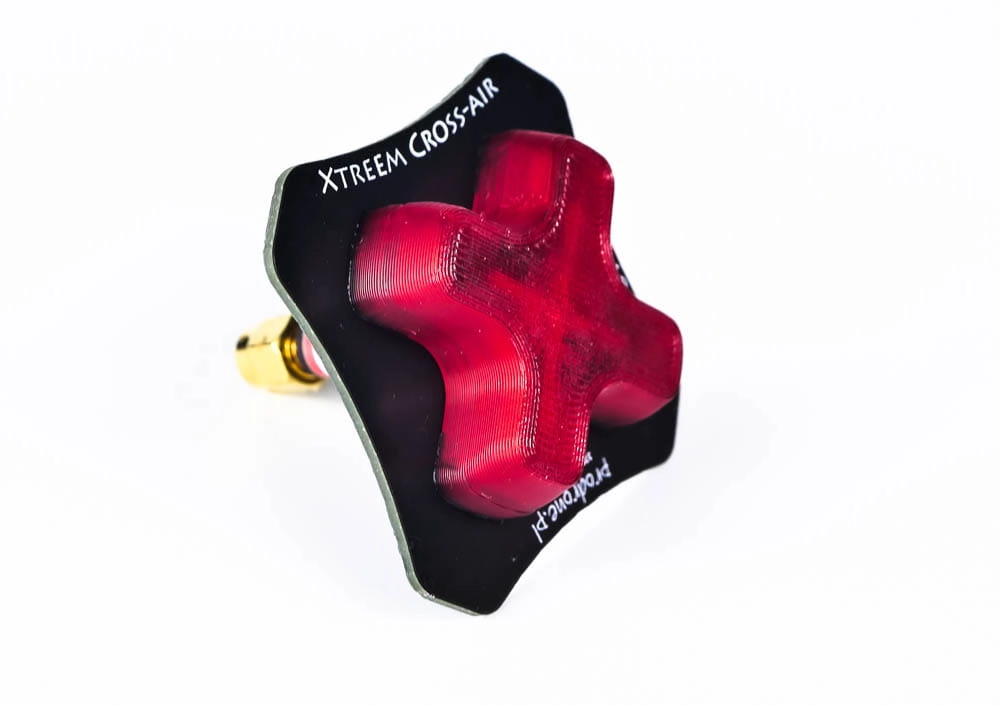

Are looking for a best antenna for your FPV drone ? XS Crossair is a best choice. It's perfect for beginners and experienced users. This version of our antenna is more though and performs better than our previous model, and it works well with analog and digital signals.

Main feature of this antenna is it's circular polarization, which ensures a strong, reliable signal even in tough conditions. Its directional design and 10dbi gain make it excellent for long-range flights. Plus, the wide coverage and high axial ratio are ideal for flying close to obstacles like bushes and trees. The high-quality semi-rigid cable allows you to bend the antenna up to a 45-degree angle without needing additional adapters. For the best performance, if you order more than one antenna, they will be matched and tuned to the same frequency range. Y
ou can also request a specific frequency range with your order, and we will tune the antenna for you at no extra cost (if you are our existing customer). The XS Crossair works in the Raceband 5.8GHz band with a VSWR of less than 1.3. It offers both RHCP and LHCP polarization options and comes with either SMA or RP-SMA connectors, in straight or angled versions.
In summary, the this high quality FPV antenna is highly recommended for its performance and durability in FPV drones or planes. Additionally, you can have your antennas tuned to match others you have purchased from our store by leaving a note with your desired frequency range when ordering.

Specifications:
Band: Raceband 5.8GHz (VSWR <1.3)
Polarization: Circular (RHCP or LHCP)
Antenna Type: Directional
VSWR: <1.3 Gain: 10dbi
Beam Width: 70 degrees (up to 120 degrees at shorter ranges)
Connector Type: SMA or RP-SMA
Cable Length: ~2cm
Overall Antenna Length: ~4cm
